Product Description

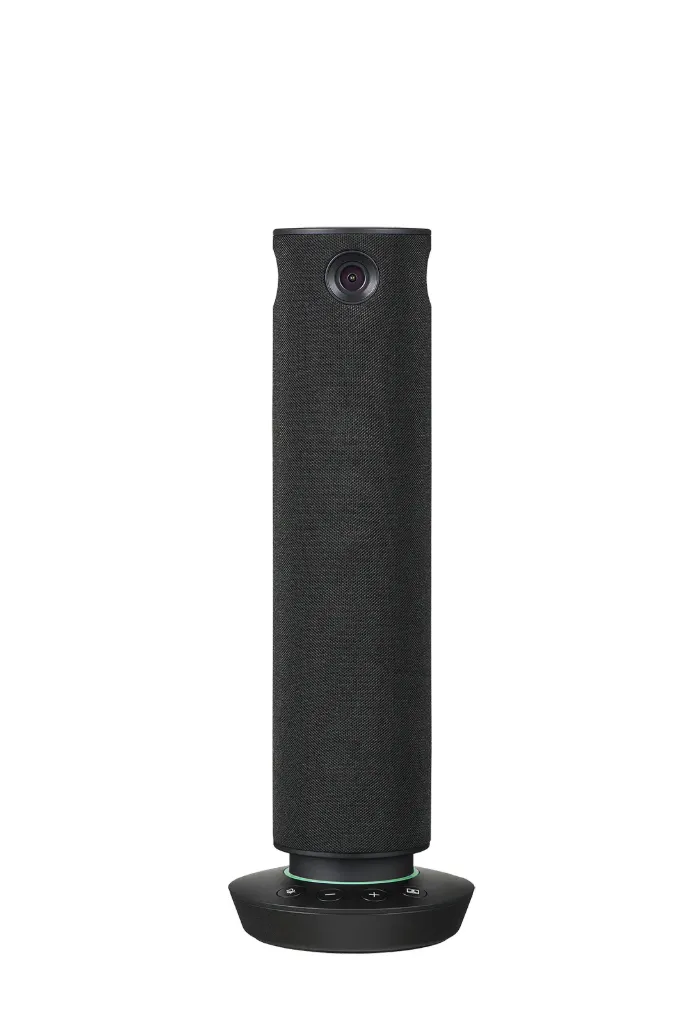

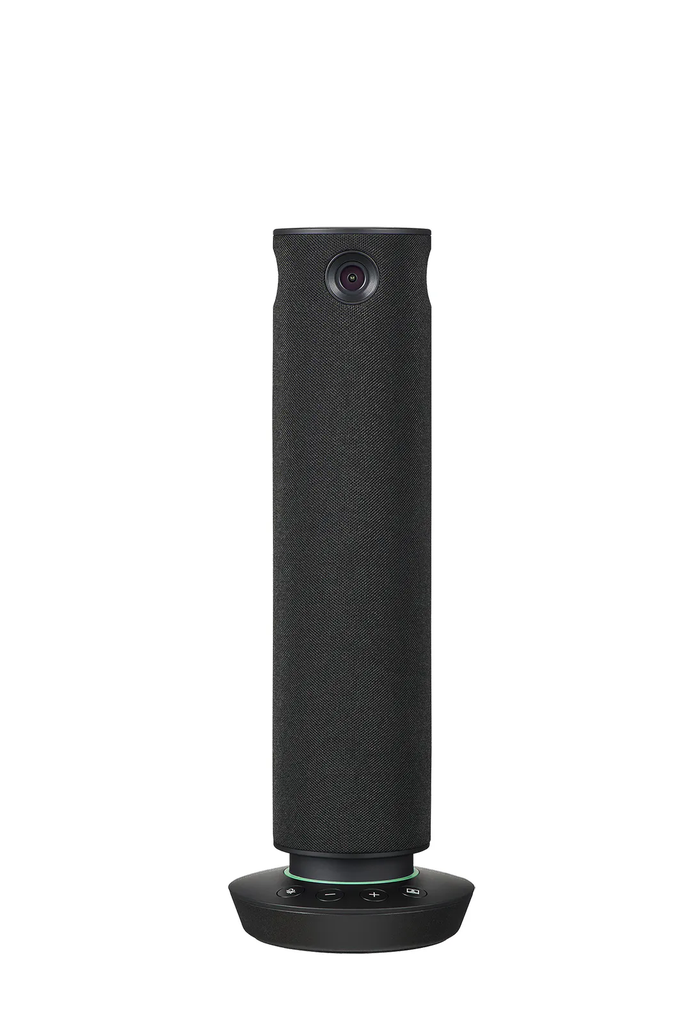

Transform any conference table into a high-tech collaboration hub with the Panasonic TY-CSP1. Part of the "PressIT360" family, this sleek, cylinder-style device captures everything and everyone in the room. By placing it in the center of the table, you eliminate the "bowling alley" effect of front-of-room cameras, ensuring remote participants feel like they are truly part of the conversation.
Key Features

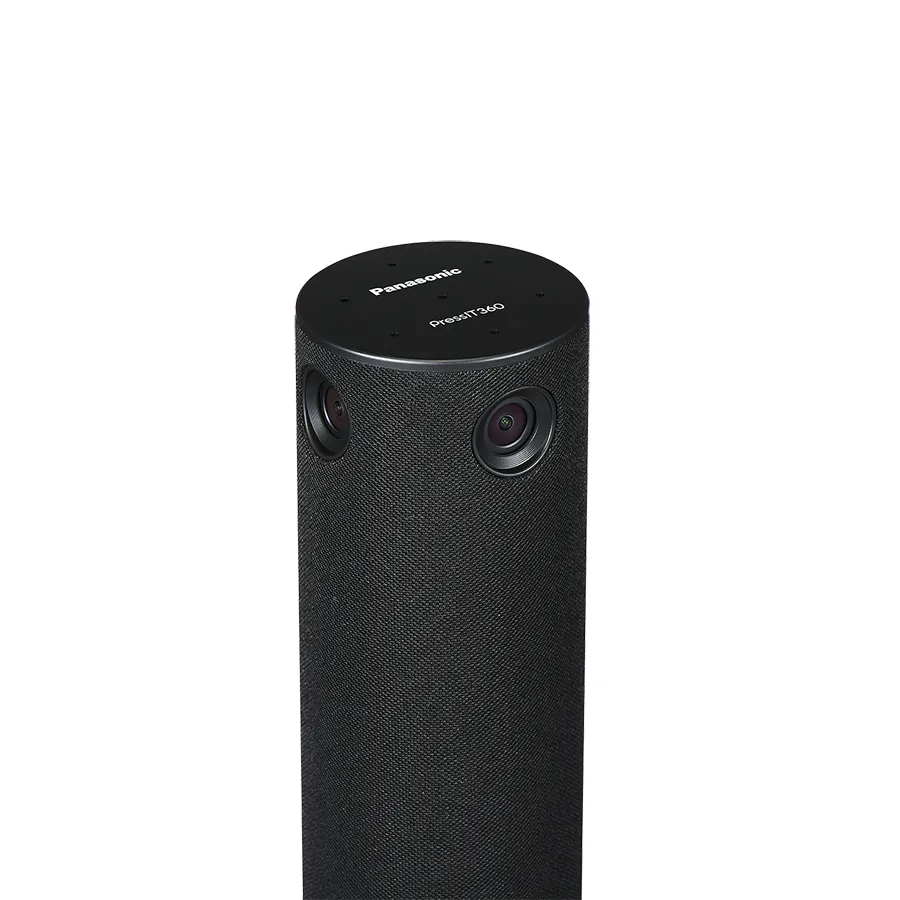

360° Panoramic Vision: Four high-performance cameras combine to provide a seamless 360-degree horizontal view. No more crowding around a single laptop or adjusting the camera manually.
Intelligent Speaker Tracking: The system automatically detects who is speaking and focuses the video on them. A green LED ring on the device shifts toward the speaker to provide visual confirmation.
7-Microphone Beamforming Array: Seven integrated MEMS microphones capture clear audio from up to 5 meters (16.4 ft) away, utilizing echo and noise cancellation to suppress distracting background sounds.
Plug-and-Play Simplicity: Connect to your PC or Mac via a single USB Type-C cable for both power and data. It’s compatible with all major platforms, including Zoom, Microsoft Teams, Google Meet, and Cisco Webex.
Five Tailored View Modes:
Surround View: A full 360° panoramic view divided into two 180° tiers.
Multi View: Focuses on up to four individual speakers simultaneously.
Single View: A wide-angle shot of the entire room.
Dual View: Focuses on two primary speakers at once.
Stable View: A fixed-point camera angle (ideal for whiteboards).
Specification
| Imaging element | 1/2.7"5MP CMOS |
|---|---|
| Field of view (H x V) | 360 x 60 |
| F number of the lens | 2.5 |
| Lens TTL | 14.7 mm |
| Distortion | -14.90% |
| Microphone | MEMS Microphone array |
| Number of microphones | 7 |
| Beam forming | Supported |
| Microphone sensitivity | -35dBFS |
| S/N ratio | 68.75 dBA |
| Speaker output | 1.5 W (When supplying power from USB Type-C) or 3 W (When AC adaptor is connected) |
| Connection terminals | USB Type-C (Receptacle/USB2.0) DC plug 12 V/2 A |
| Power supply | USB Type-C (5 V/3 A) or AC adaptor DC 12 V/2 A |
| Power consumption (when outputting video) | 11 W |
| Dimensions | Φ64 mm × 285 mm/Φ2.52" x 11.23" (Operation base Φ100 mm (Φ3.94")) |
| Mass | 950 g/2.1 lbs. |
| Security slot | Noble Wedge lock(mounting Φ11 mm or less) |
| Operating condition | Temperature: 0 °C to 40°C (32°F to 104°F) Humidity: 20 % to 80 % (no condensation) |
| Usable altitude range | 0 m to 2800 m (0 to 9186 ft) |
