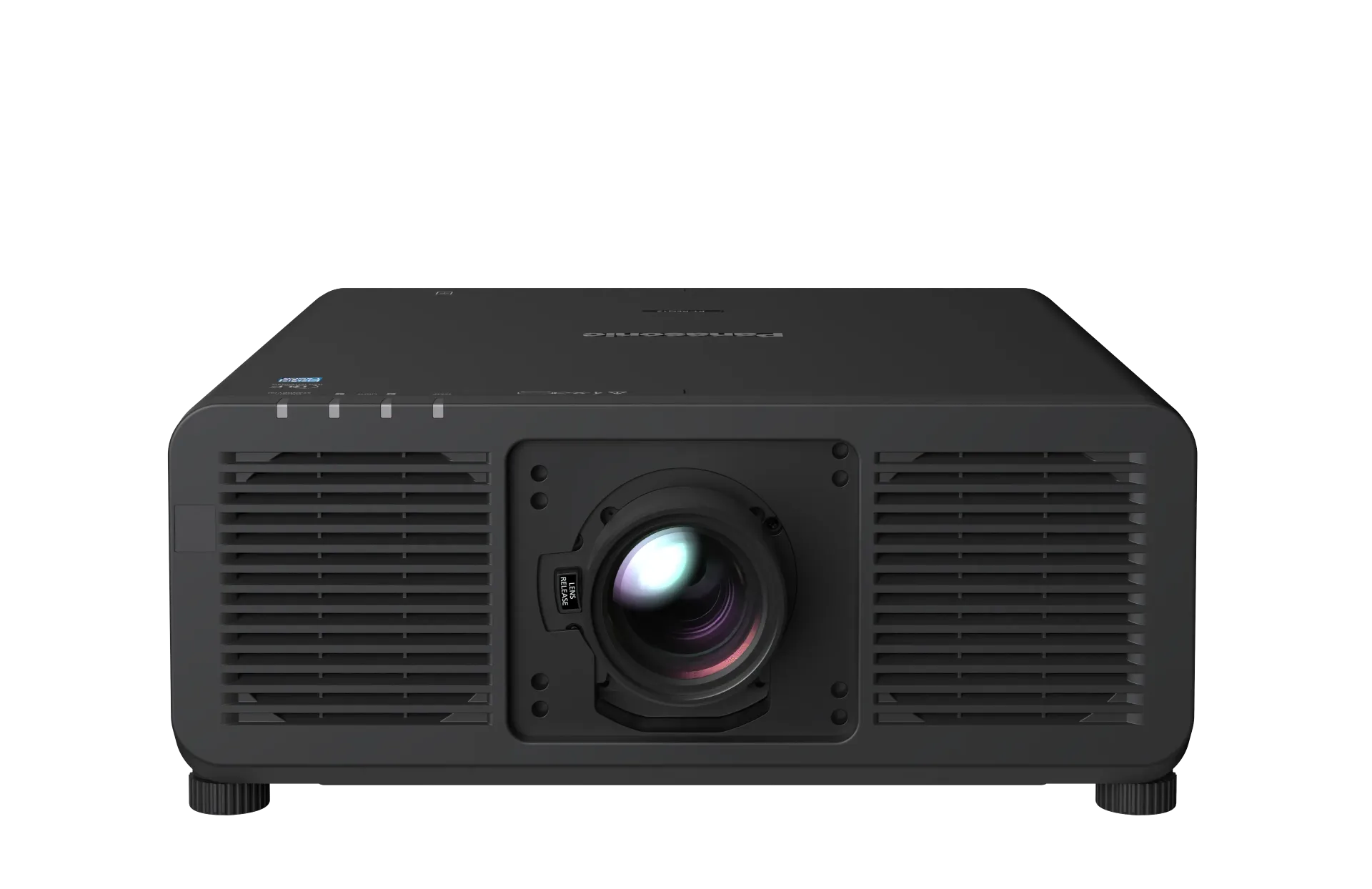

Panasonic PT-REZ12LBEJ

The Panasonic PT-REZ12LBEJ is the flagship high-output model of the REZ Series, delivering a massive 12,000 lumens of brightness from a compact 1-Chip DLP™ platform. Designed for large-scale venues, auditoriums, and high-impact exhibitions, it provides the intense light output required to overcome high ambient light while maintaining the sharp detail and color accuracy professional installations demand.

Model Configuration: PT-REZ12LBEJ

This specific model code identifies the professional hardware configuration:

• L (Lensless): This is a Body Only unit. It ships without a factory-installed lens, allowing you to select the high-precision ET-C1 series optics (from Ultra-Short Throw to Long-Throw) best suited for your venue's dimensions.

• B (Black Cabinet): Featuring a Professional Black finish, this model is designed to blend seamlessly into dark ceilings, theaters, and "black-box" event spaces.

• EJ (Regional Code): Designated for the European, UK, and Oceania markets, ensuring full compliance with local power standards (220-240V) and regional manufacturer warranty support.

Key Features

• High-Brightness WUXGA Visuals: Delivers 12,000 lumens (12,400 lumens Center) with native WUXGA (1920 x 1200) resolution. It provides exceptional clarity for large-screen presentations and detailed data displays.

• Evolved Dynamic Contrast: Features a next-generation scene-recognition circuit that achieves a 25,000:1 contrast ratio. By analyzing every frame in real-time, it delivers deeper blacks and more brilliant whites for superior image depth.

• Rich Color Enhancer: Includes Panasonic’s original color-optimization technology that expands the red-channel output, ensuring colors are vibrant, natural, and accurate—essential for reproducing skin tones and high-end brand content.

• Maintenance-Free Reliability: The hermetically sealed optical block and liquid cooling system are IP5X Dust Protected, eliminating the need for air filters and supporting 20,000 hours of maintenance-free operation.

• Seamless Multi-Screen Support: Includes Gradation Smoother to eliminate color banding and refined black-level adjustment for perfect edge-blending on curved or flat surfaces.

• Smart Workflow & Connectivity: Features NFC functionality for mobile setup without power, an Intel® SDM-ready slot for function boards (12G-SDI, NDI®, AVoIP), and Remote Preview Lite for signal verification via PC.

Technical Specifications
