Product Description
This specific model code identifies the hardware configuration tailored for professional installation:

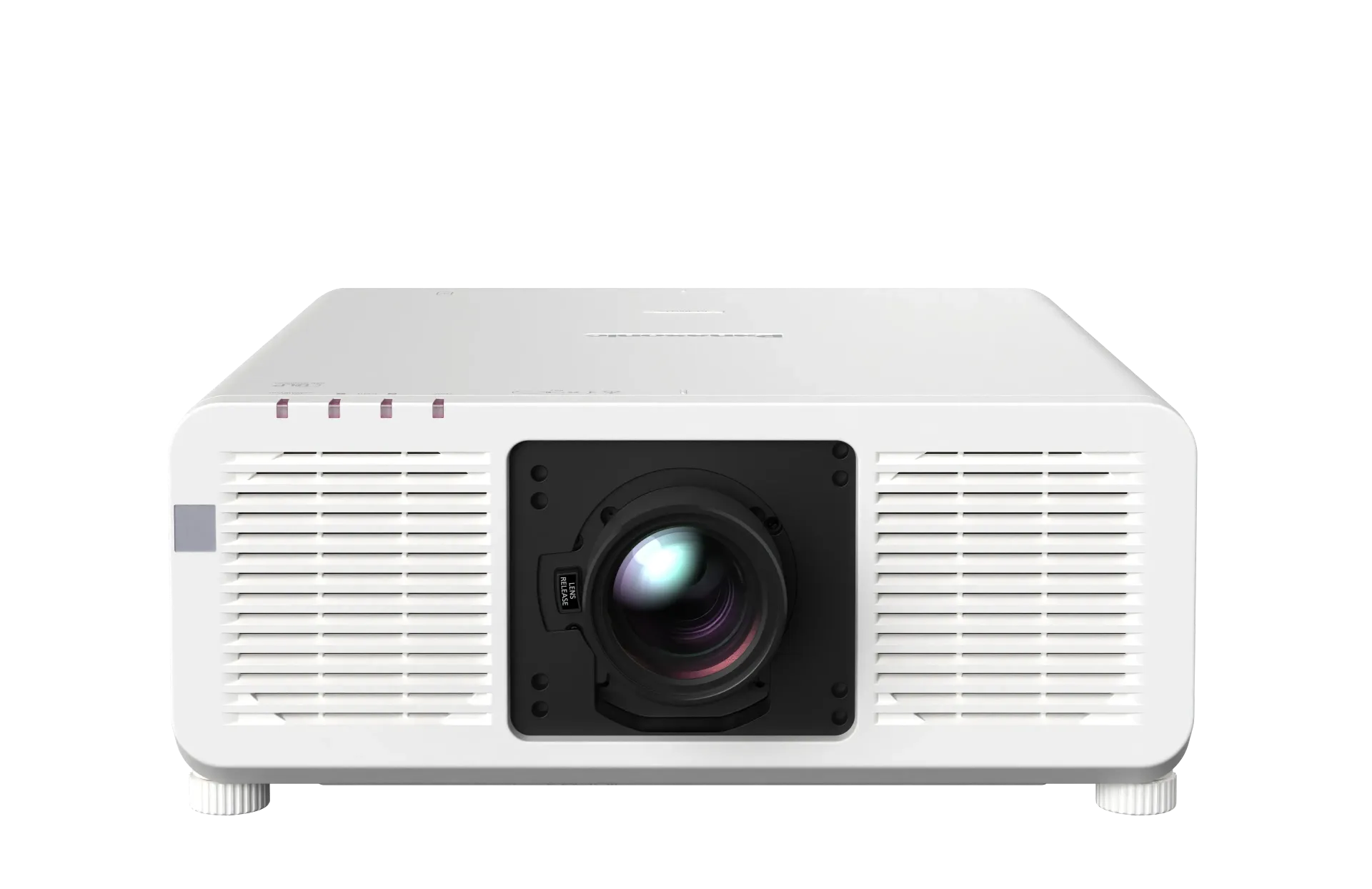

L (Lensless): This is a Body Only unit. It does not include a factory-installed lens, providing the flexibility to select the specific optics (from Ultra-Short Throw to Long-Throw) required for your venue's unique throw distance.
Key Features
Spectacular 4K Visuals: Features Quad Pixel Drive technology to produce smooth, detailed 4K images. Combined with the Rich Color Enhancer, it delivers deep blacks and vibrant, accurate colors across the entire spectrum.
High-Frame-Rate Compatibility: Supports 240Hz playback with a latency of 6ms or less, making it ideal for fast-moving content, simulators, and interactive projections.
Evolved Dynamic Contrast: A redesigned scene-analysis circuit achieves a 25,000:1 contrast ratio, delivering higher brightness in whites and deeper blacks for superior depth and realism.
Hermetically Sealed Optical Block: The liquid-cooled, dust-resistant engine complies with IP5X Dust standards, eliminating the need for an air filter and ensuring 20,000 hours of maintenance-free operation.
Seamless Integration: Features an Intel® SDM-ready slot for functional expansion (such as 12G-SDI or NDI® boards) and Remote Preview Lite, which allows you to check video signals on a PC before projection
Specifications table
| Projector type | 1-Chip DLPTM projector |
|---|---|
| Display method | DLPTM chip x 1, DLPTM projection system |
| Display Device -> Panel size | 0.8 in diagonal (16:10 aspect ratio) |
| Display Device -> Number of pixels | 2,304,000 (1920 x 1200 pixels) |
| Light source | Laser diode |
| Light output *1 | 10,000 lm |
| Light output (ANSI) *3 | 10,000 lm |
| Light output (Center) *4 | 10,300 lm（Center） |
