Product Description

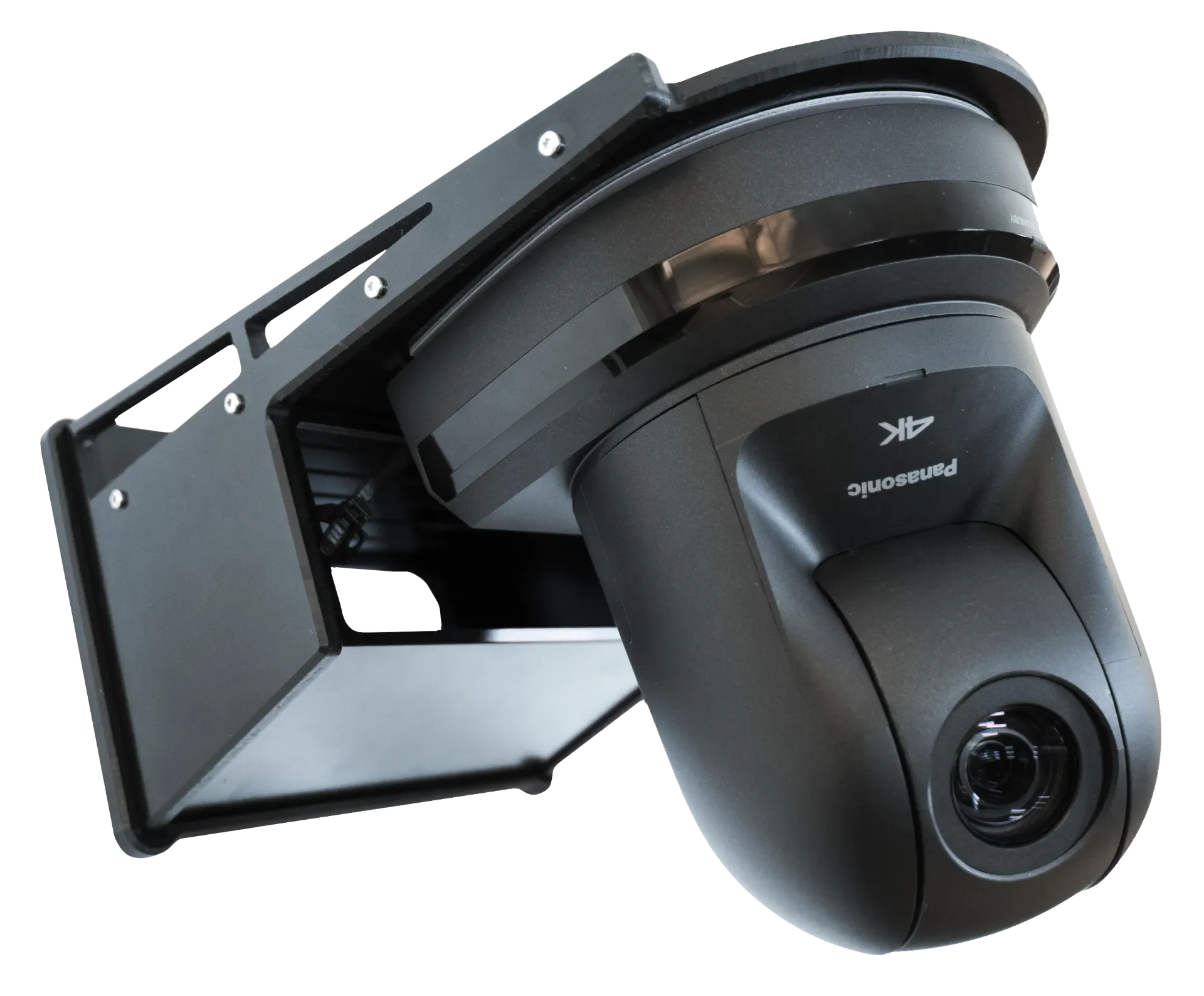

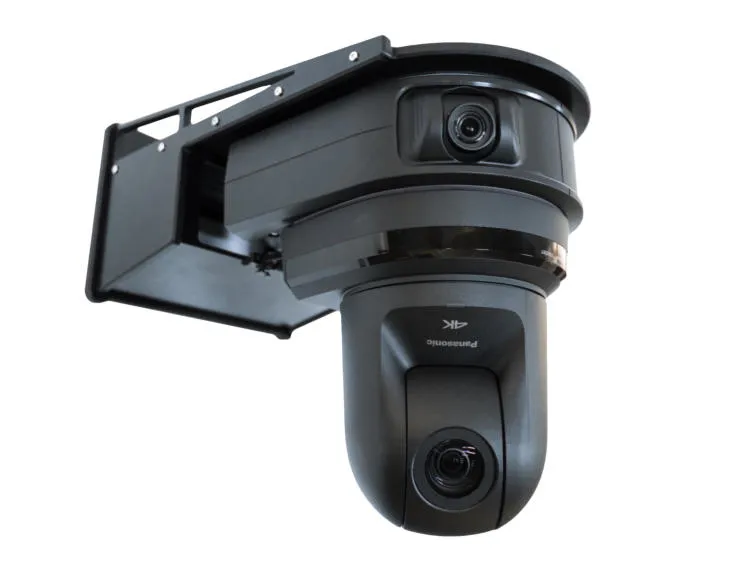

KST Moschkau GmbH has developed a mounting solution for Panasonic PTZ cameras.
Each wall mount bracket consists of:
- A wall mounting plate with 4 elongated holes for 8mm screws.
- A concealed cable guide opening.
- An extension arm with integrated storage compartment for power supply units or converters which is equipped with ventilation slots on the top.
- The camera mounting level on which the original mounting bracket of the camera is mounted.
Key features
| Designed exclusively for Panasonic PTZ cameras |
| Available in black and white |
| Only requires supplied mounting plate to attach the PTZ camera |
| Standing or hanging mounting of the camera possible |
| Weight: 1,25kg |
The KST wall mount brackets are available in three different designs to match the extensive PTZ range:
For AW-UE160 series:
| • KST-WM-UE160-B | Wall Mount Bracket black |
| • KST-WM-UE160-W | Wall Mount Bracket white |
For AW-UE150 and AW-HE145 series:
| • KST-WM-UE150-B | Wall Mount Bracket black |
| • KST-WM-UE150-W | Wall Mount Bracket white |
For AW-UE100 and AW-UE80 series:
| • KST-WM-UE100-B | Wall Mount Bracket black |
| • KST-WM-UE100-W | Wall Mount Bracket white |
For AW-HE20, AW-UE20, AW-UE30, AW-UE40, AW-UE50, AW-UE70/-UN70, AW-HE42/-HN42, AW-HE40/-HN40, AW-HE38/-HN38 series:
| • KST-WM-HE40/UE70-B | Wall Mount Bracket black |
| • KST-WM-HE40/UE70-W | Wall Mount Bracket white |
For the AW-UE4 series:
| • KST-WM-UE4-B | Wall Mount Bracket black |
| • KST-WM-UE4-W | Wall Mount Bracket white |
For AW-HE130 series (discontinued) and AW-HN130 series (discontinued):
| • KST-WM-HEA10/130-B | Wall Mount Bracket black |
| • KST-WM-HEA10/130-W | Wall Mount Bracket white |
