Product Description

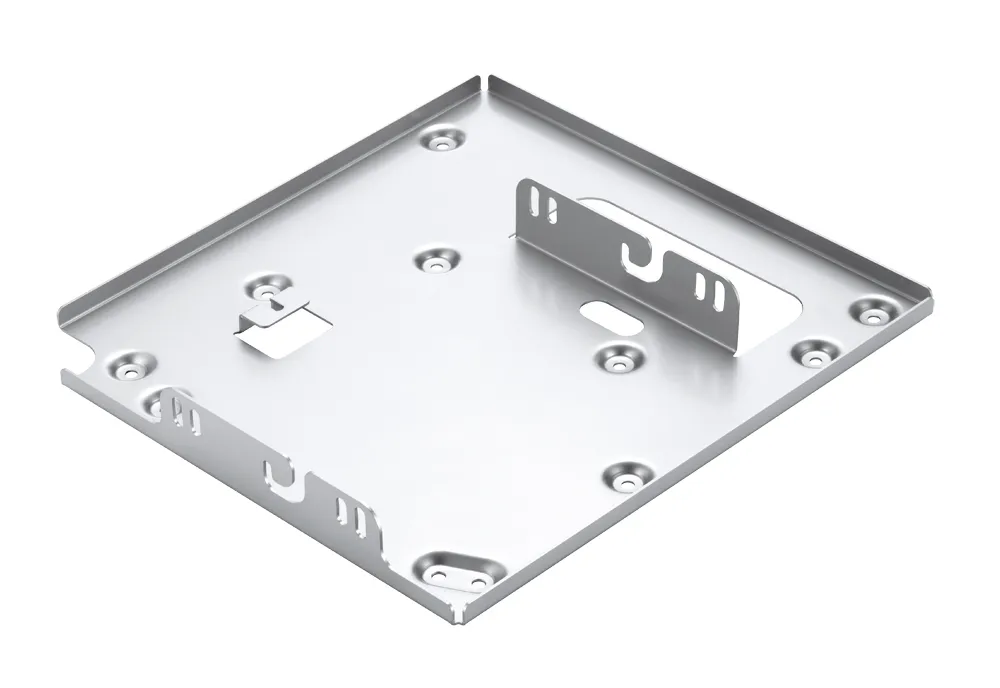

The ET-PKD130B is the "bottom half" of a complete ceiling mount solution. It is typically used in conjunction with a ceiling-side bracket (such as the ET-PKD120S for low ceilings or the ET-PKD120H for high ceilings). This plate is essential for permanent installations in university lecture halls, large corporate boardrooms, and digital signage displays.
Key Features
Reinforced Locking Points: Features multiple contact points to distribute the projector's weight evenly, preventing any warping of the projector's casing.
Black Industrial Finish: Matches the aesthetic of professional-grade projectors and staging equipment.
Easy Maintenance Access: Designed to allow access to the projector’s filter and lamp doors without having to remove the entire bracket in most installations.
Compatibility
The ET-PKD130B is compatible with a wide range of Panasonic 1-Chip DLP™ Projectors, including:
PT-RZ Series: PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690
PT-RCQ Series: PT-RCQ10, PT-RCQ80
PT-DZ Series: PT-DZ870, PT-DZ780, PT-DZ770
PT-DW Series: PT-DW830, PT-DW750, PT-DW740
PT-DX Series: PT-DX100, PT-DX820, PT-DX810
Technical Specifications
| Feature | Specification |
| Product Type | Projector Mount Bracket (Attachment Plate) |
| Material | Reinforced Heavy-Duty Steel |
| Dimensions (W \times H \times D) | 378 x 56 x 400 mm (14-7/8 x 2-7/32 x 15-3/4 in) |
| Weight | Approx. $3.0$ kg ($6.61$ lbs) |
| Color | Black |
| Included Hardware | High-tensile mounting bolts and washers |
