Product Description

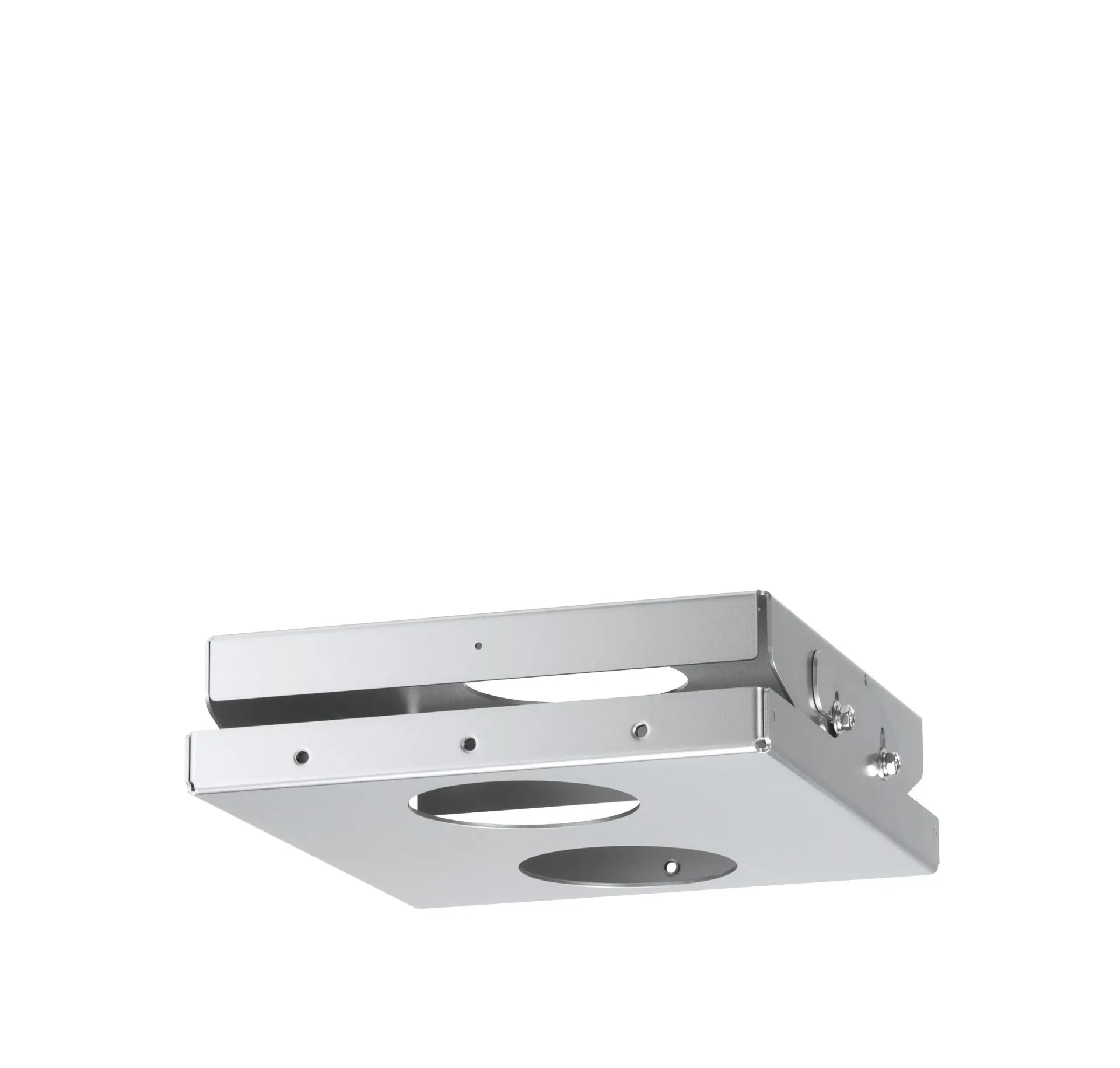

The ET-PKD120S is a specialized mount that consists of a ceiling plate and a projector attachment. Unlike the "H" (High) version which uses an extension pole, the "S" (Short) version is fixed for direct-to-ceiling mounting. This bracket is a critical component for permanent installations in corporate boardrooms, higher education classrooms, and digital signage environments.
Key Features
Integrated Cable Management: Designed with enough clearance to route power and signal cables (HDMI, LAN) cleanly away from the unit.
Wide Adjustment Range: * Vertical Tilt: 30 degrees
Horizontal Tilt: 10 degrees
Horizontal Rotation: 5 degrees
Safe-Lock System: Engineered with safety bolts to prevent the projector from shifting or detaching over time.
Compatibility
The ET-PKD120S is compatible with a wide array of Panasonic 1-Chip DLP™ projectors, including:
PT-RZ Series: PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690
PT-RCQ Series: PT-RCQ10, PT-RCQ80
PT-DZ Series: PT-DZ870, PT-DZ780, PT-DZ770
PT-RW/RX Series: PT-RW930, PT-RW730, PT-RX110
Technical Specifications
| Feature | Specification |
| Product Type | Low Ceiling Mount Bracket |
| Mounting Style | Direct Ceiling (Short/Low Profile) |
| Adjustable Angles | Pitch, Roll, and Swivel |
| Material | High-Strength Steel |
| Weight | Approx. $1.5$ kg ($3.3$ lbs) |
