Product Description

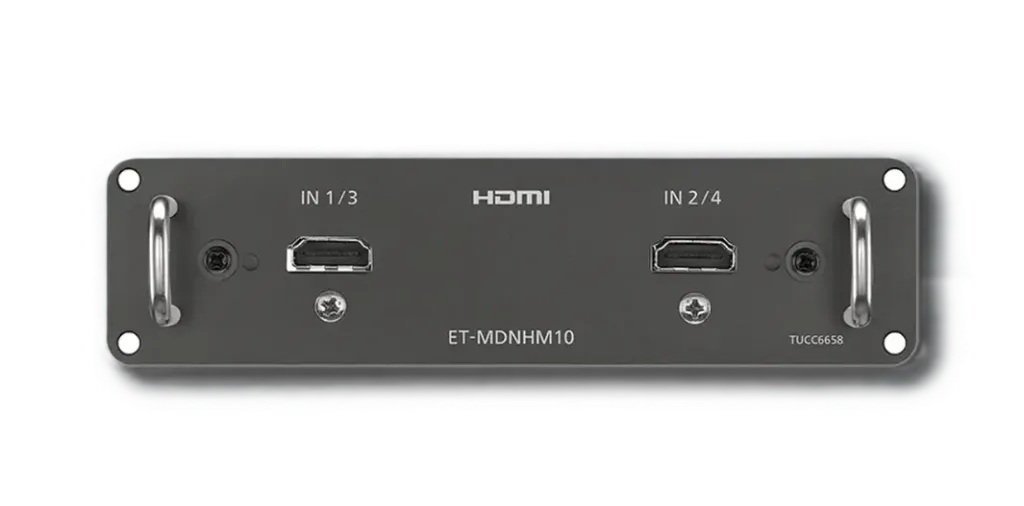

The ET-MDNHM10 is an optional interface board that empowers your projector to handle more complex multi-source setups. By utilizing both HDMI ports, technicians can set up "Backup Input" or "Picture-in-Picture" configurations, providing a safety net during live performances. Each port is HDCP 2.2 compliant, ensuring compatibility with protected 4K broadcast and cinematic content.
Key Features
4K/60p Compatible: Supports high-framerate 4K signals for fluid motion in sports and high-action video.
Deep Color Support: Compatible with advanced color sampling for smoother gradients and more lifelike color reproduction.
Hot-Swappable Design: Can be easily installed or removed by a qualified technician to reconfigure projectors for different event needs.
Industrial Build Quality: Specifically designed to operate within the thermal environment of high-lumen laser projectors.
Compatibility
The ET-MDNHM10 is compatible with Panasonic projectors featuring the SLOT NX expansion slot, including:
PT-RQ Series: PT-RQ50K, PT-RQ35K, PT-RQ32K, PT-RQ22K, PT-RQ13K
PT-RZ Series: PT-RZ34K, PT-RZ31K, PT-RZ21K, PT-RZ12K
PT-RCQ Series: PT-RCQ10, PT-RCQ80
Technical Specifications
| Feature | Specification |
| Product Type | Projector Terminal Expansion Board |
| Terminals | 2 x HDMI (19-pin Type A) |
| Input Slot | SLOT NX Specification |
| Max Resolution | 4096 x 2160 (4K) |
| Standard | HDCP 2.2 / Deep Color Compatible |
| Weight | Approx. 0.34 kg (12.0 oz) |
