Product Description

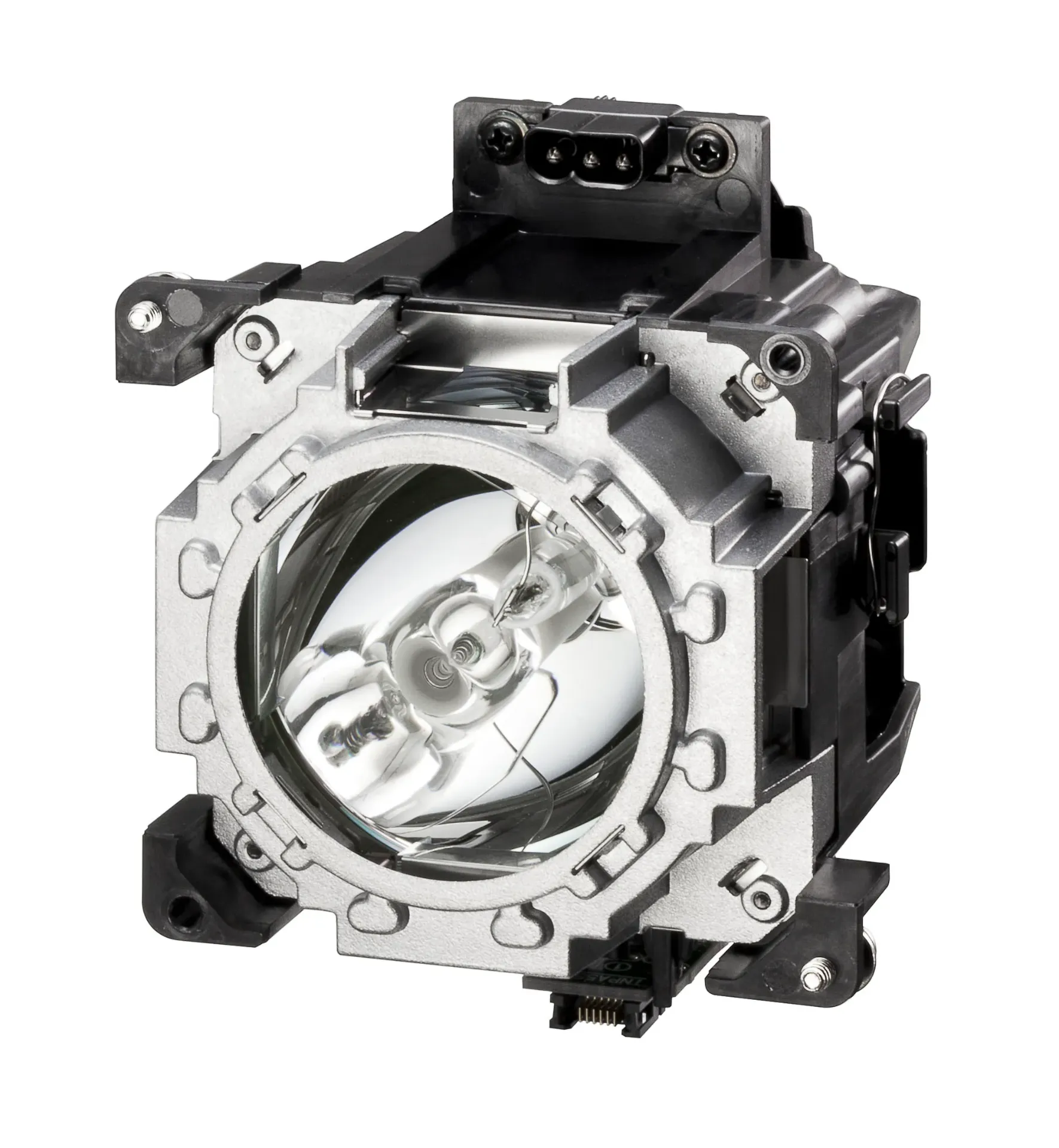

The ET-LAD520F is a genuine OEM replacement kit containing four (4) UHM lamp modules. Each module comes pre-installed in its own dedicated, heat-resistant housing for a safe and rapid "slide-in" replacement. This kit is the standard maintenance requirement for the second-generation DZ21K series, offering improved longevity and stability over previous lamp generations.
Key Features
Quad-Pack Convenience: One part number provides a complete light-engine overhaul, ensuring all lamps start with zero hours simultaneously.
UHM Technology: Ultra-High-Performance mercury lamps provide the specific spectral output required for the high-contrast 3-Chip DLP™ light engine.
Tool-Free Maintenance: Designed for the fast-paced world of rental and staging, allowing lamps to be swapped out quickly between shows.
High Output: Rated at 432W per lamp to maintain the projector's 20,000-lumen specification.
Compatibility
The ET-LAD520F is designed exclusively for the following Panasonic 3-Chip DLP™ Projectors:
PT-DZ21K2 / PT-DZ21K2U / PT-DZ21K2E
PT-DS20K2 / PT-DS20K2U
PT-DW17K2 / PT-DW17K2U
PT-DZ16K2 / PT-DZ16K2U
Technical Specifications
| Feature | Specification |
| Product Type | Projector Replacement Lamp (Quad-Pack) |
| Quantity | 4 Lamp Modules per box |
| Lamp Wattage | 432 Watts (per lamp) |
| Lamp Life | Approx. 3,000 Hours (Standard Mode) |
| Weight | Approx. 1.0 kg (Total package) |
