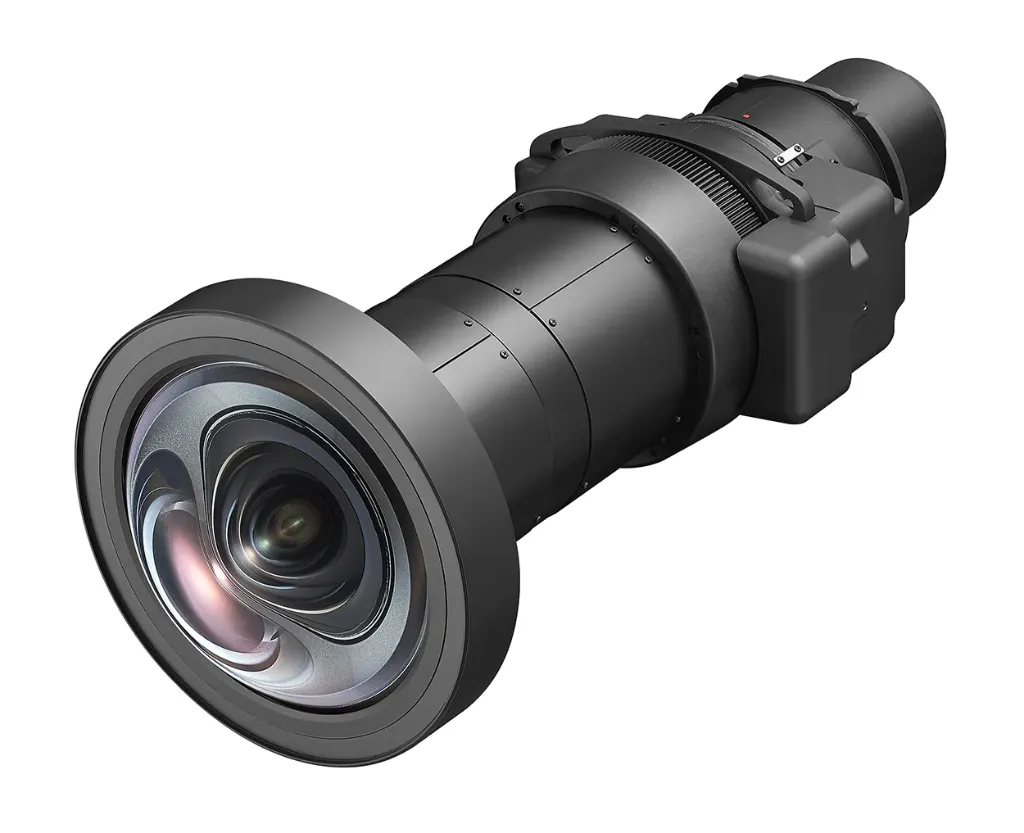

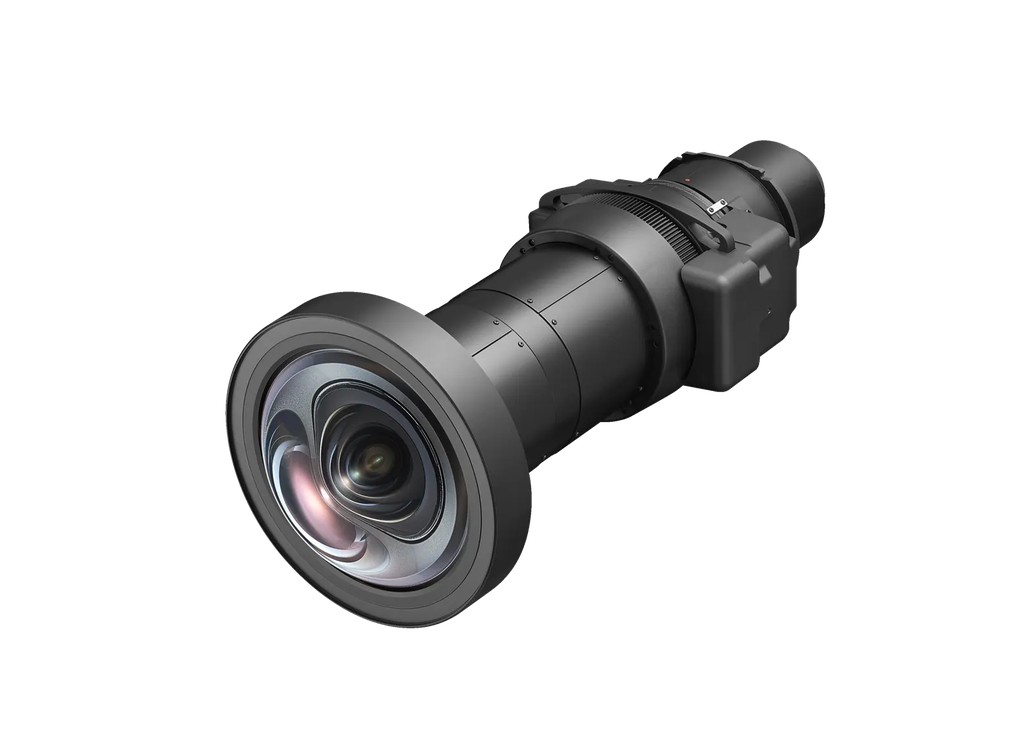

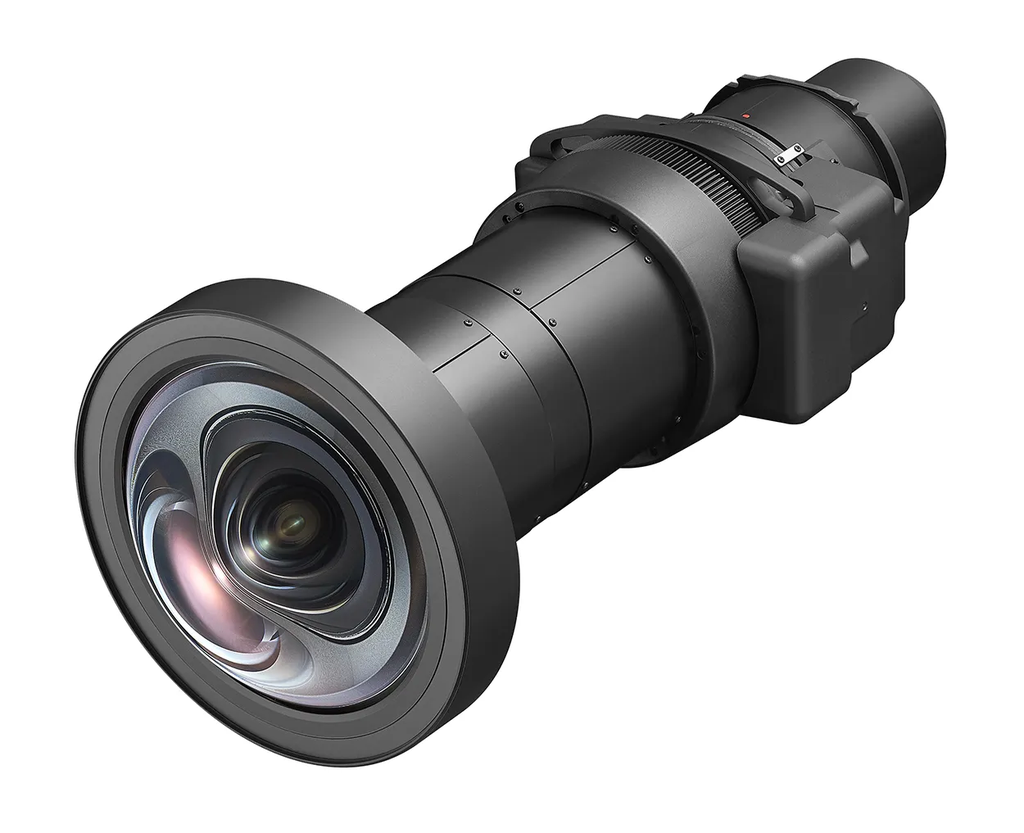

3LCD Ultra-Short-Throw Zoom Lens

Key Features

• Ultra-Short-Throw with Zero Offset: 0.330–0.353:1 throw ratio (WUXGA) — supports a minimum ~1.43m projection distance for a 200-inch image, letting viewers approach the screen without casting a shadow. Ideal for museums, exhibitions, and rental/staging use.
• Zero Screen Offset: Eliminates the gap between image top and ceiling/mounting surface — enables direct ceiling mounting without costly in-ceiling recessing.
• Mirrorless, Lens-Centered Design: Supports rear-projection with the lens at screen center for more uniform brightness and color.
• Powered Zoom & Wide Lens Shift: x1.07 zoom with +50%/-20% vertical and ±20% horizontal lens shift — adjust image position after installation via remote or Smart Projector Control app.
• AFO (Active Focus Optimizer): Continuously monitors lens temperature to maintain optimal focus as brightness fluctuates, keeping images sharp.

Compatible Models

PT-MZ20KL, PT-MZ17KL, PT-MZ14KL, PT-MZ11KL, PT-MZ16KL, PT-MZ13KL, PT-MZ10KL.
