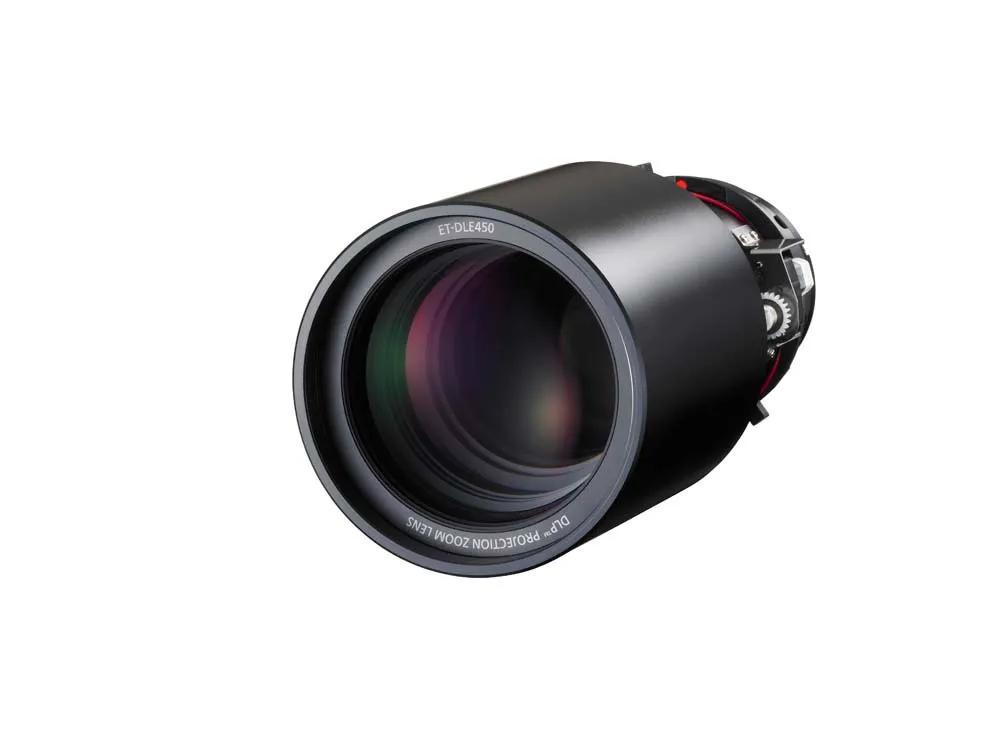

1-Chip DLP™ Projector Zoom Lens

Key Features

• Ultra Long-Throw Zoom: Throw ratio of 5.36–8.58:1 (WUXGA), 5.64–9.01:1 (WXGA), 5.55–8.88:1 (XGA) — the longest-throw option in the DLE family, ideal for very large venues or rear-projection booths set far back from the screen.
• Wide Aperture Range: F-number of 1.8–2.4 across its extended zoom range.
• Compact for Its Reach: 95 × 95 × 210mm, weighing 1.3kg — manageable despite the long focal length (79.5–125.2mm).
• Part of a Wider Lens Family: Shares its mount and design lineage with the ET-DLE085/105/150/170/250/350 series, giving integrators a full range of throw ratios on the same platform as venue distance requirements vary.
• Broad Projector Support: Compatible across Panasonic's RQ, RZ, RCQ, RW, RX, DZ, DW, DX, and D-series projectors.

Compatible Models

PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10/RCQ10L, PT-RCQ80/RCQ80L, PT-RZ120/RZ120L, PT-RZ990/RZ990L, PT-RZ890/890L, PT-RZ790/790L, PT-RZ690/RZ690L, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-DZ870, PT-DW830, PT-DX100, PT-DW750, PT-DX820, PT-DZ770K, PT-DW740S, PT-DX810S, PT-DW730S, PT-DX800S, PT-DZ680, PT-DW640, PT-DX610, PT-DZ6710, PT-DZ6700, PT-DW6300S, PT-D6000S, PT-D5000S.
