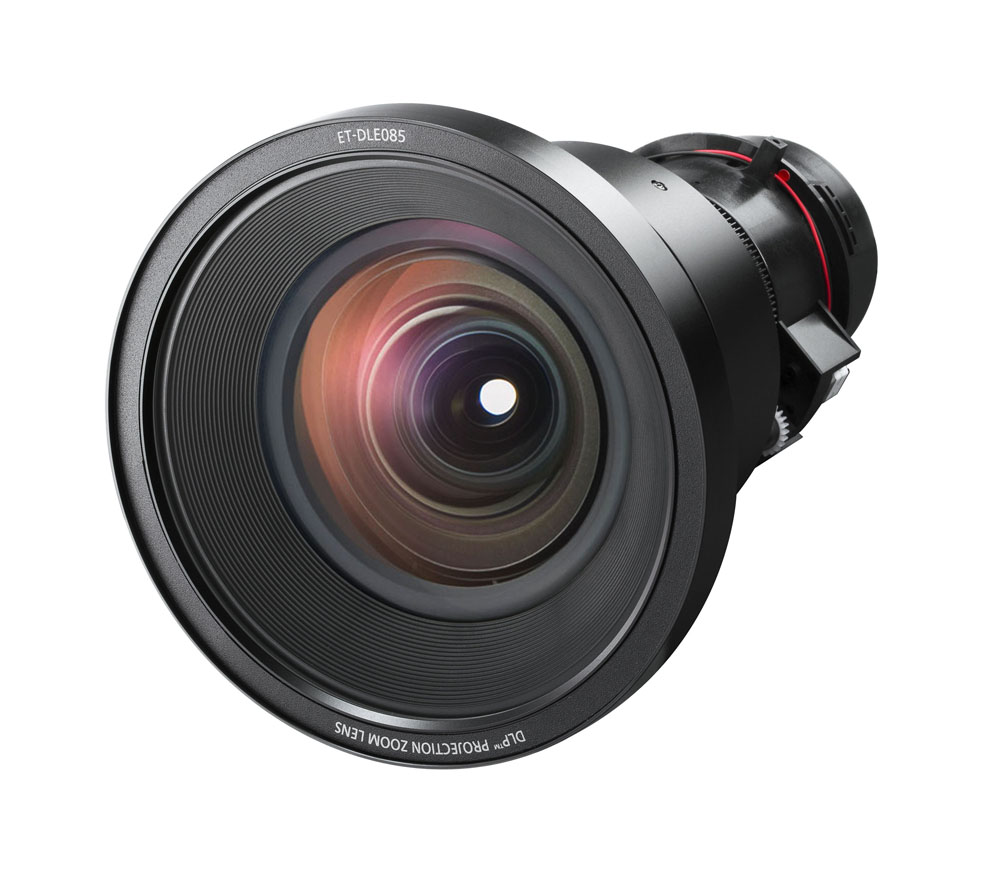

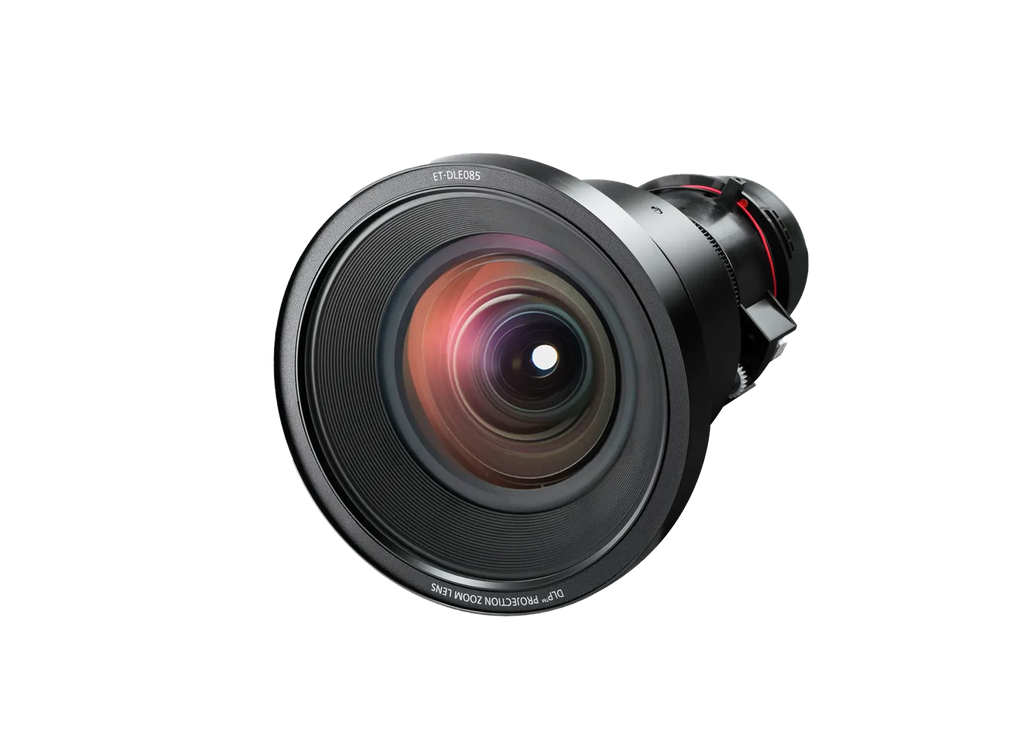

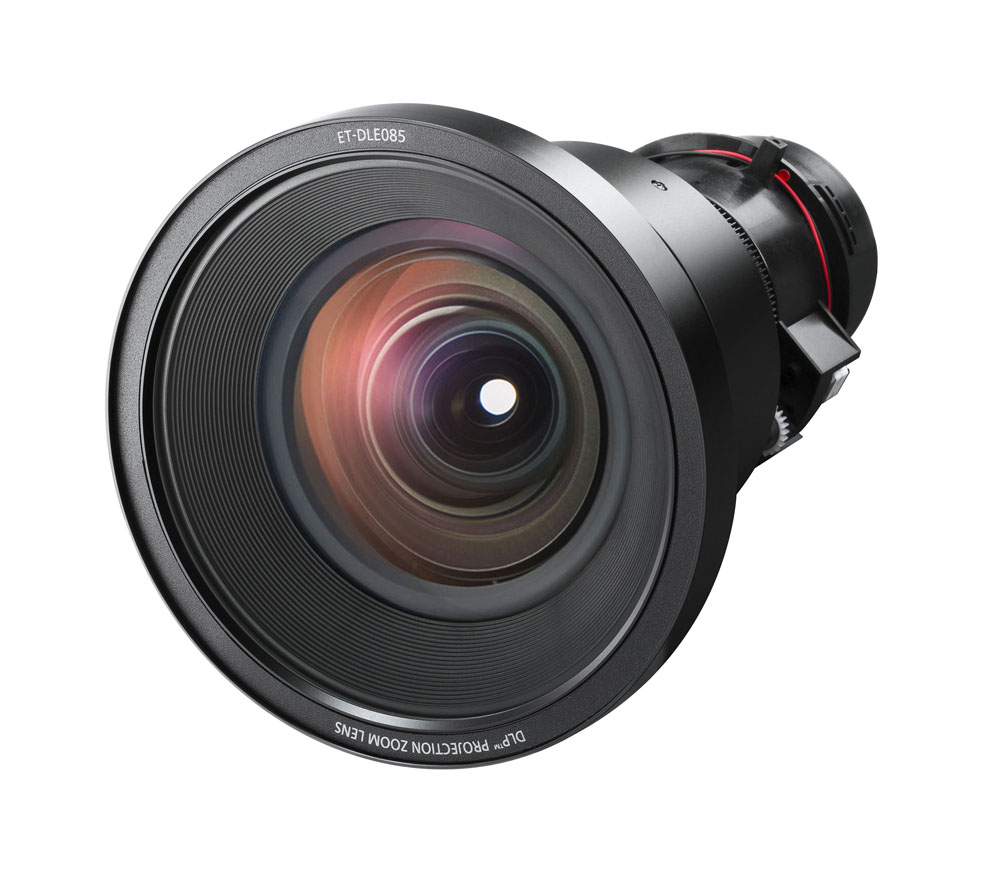

Product Description
The ET-DLE085 allows for large-scale, high-impact projection in spatially constrained environments where the projector must be positioned close to the screen. Unlike fixed short-throw lenses, it features a motorized 1.2x optical zoom, enabling precise image scaling and alignment without physically relocating the projector.
Equipped with a fast f/1.85–2.20 aperture, the lens ensures maximum brightness and excellent color uniformity. Its optical design is optimized to resolve 4K and WUXGA resolutions with minimal geometric distortion and chromatic aberration, making it a reliable choice for technical integrations requiring high clarity.
| Lens type | Zoom Lens |
|---|---|
| F-number | 1.85–2.20 |
| Focal length (f) | 11.8–14.6 mm |
| Throw ratio -> WUXGA | 0.782-0.977:1 |
| Throw ratio -> WXGA | 0.823-1.03:1 |
| Throw ratio -> XGA | 0.810-1.01:1 |
| Dimensions (WxHxD) | 140 × 140 × 206 mm (5-1/2 × 5-1/2 × 8-1/8") |
| Weight [kg] | 1.3 kg (2.9 lbs.) |
