Product Description

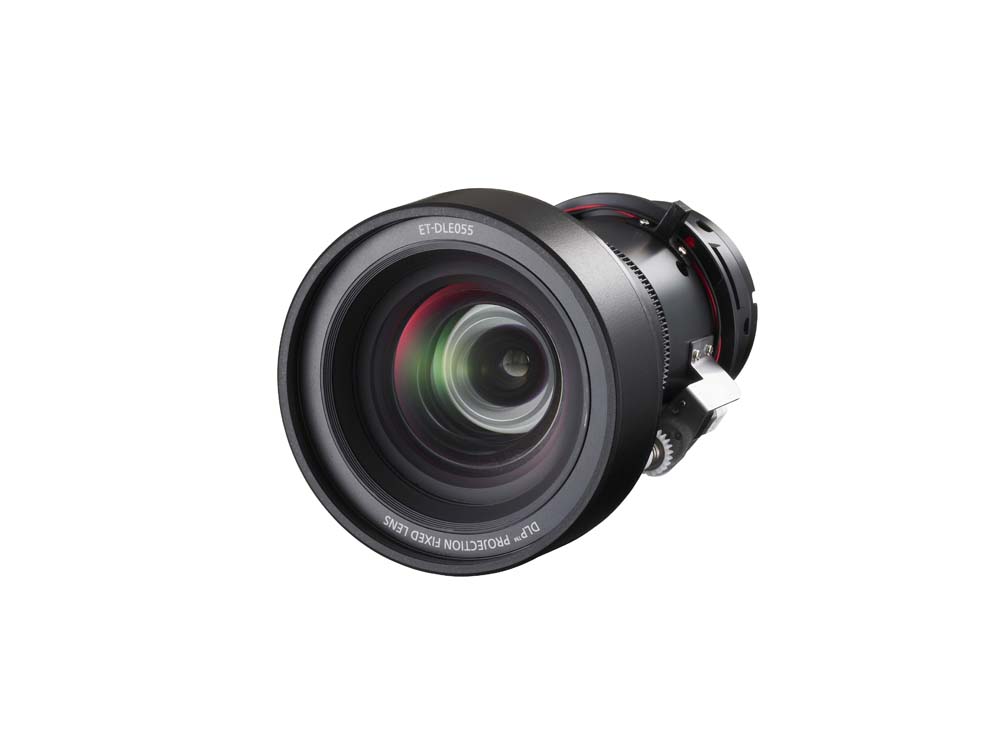

The ET-DLE055 achieves a throw ratio of approximately 0.8:1 (WUXGA). As a fixed-focus prime lens, it eliminates the additional glass elements found in zoom lenses, resulting in superior light transmission and exceptional edge-to-edge sharpness.
Built with low-dispersion glass to minimize chromatic aberration, it is a "straight" lens (non-periscope), making it easier to integrate into traditional ceiling mounts or rear-projection enclosures. It fully supports the motorized lens shift functions of compatible Panasonic 1-Chip DLP™ laser projectors for precise image positioning.
| Lens type | Zoom Lens |
|---|---|
| F-number | 1.8 |
| Focal length (f) | 11.9 mm |
| Throw ratio -> WUXGA | 0.785:1 |
| Dimensions (WxHxD) | 95 × 95 × 150 mm (3-3/4 × 3-3/4 × 5-29/32") |
| Weight [kg] | Approx. 0.8 kg (1.8 lbs.) |
