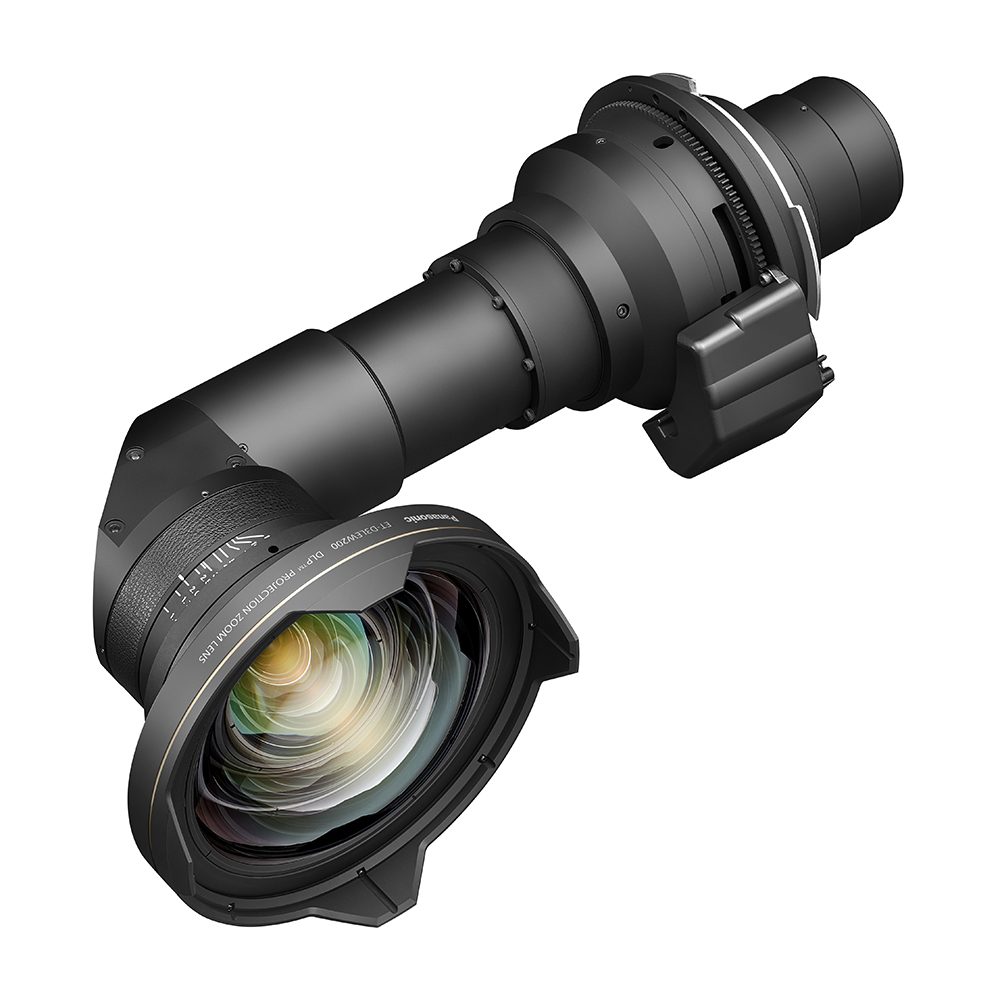

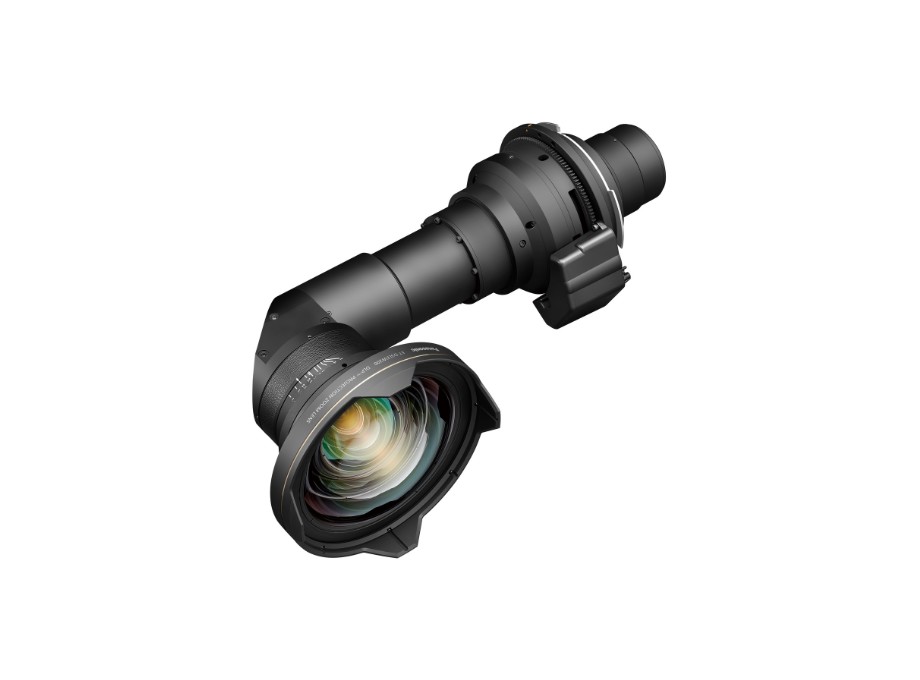

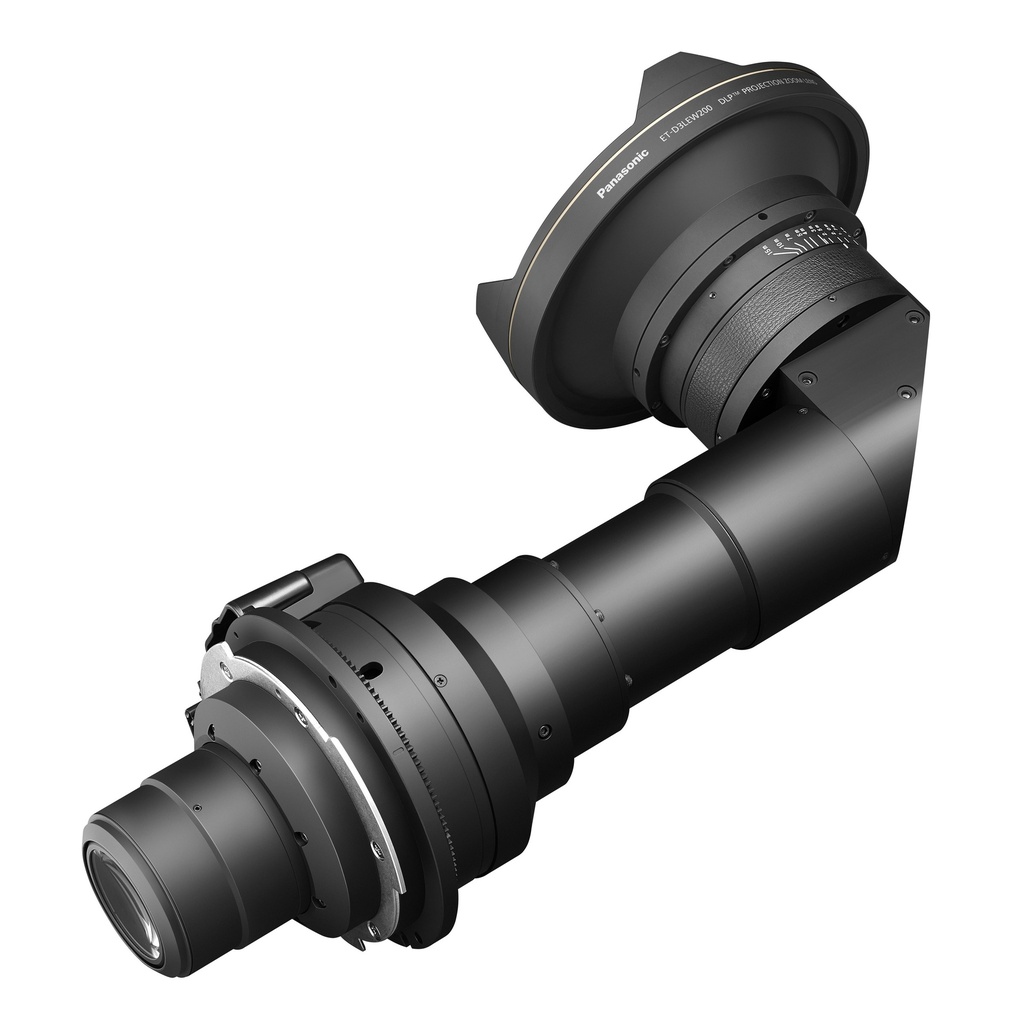

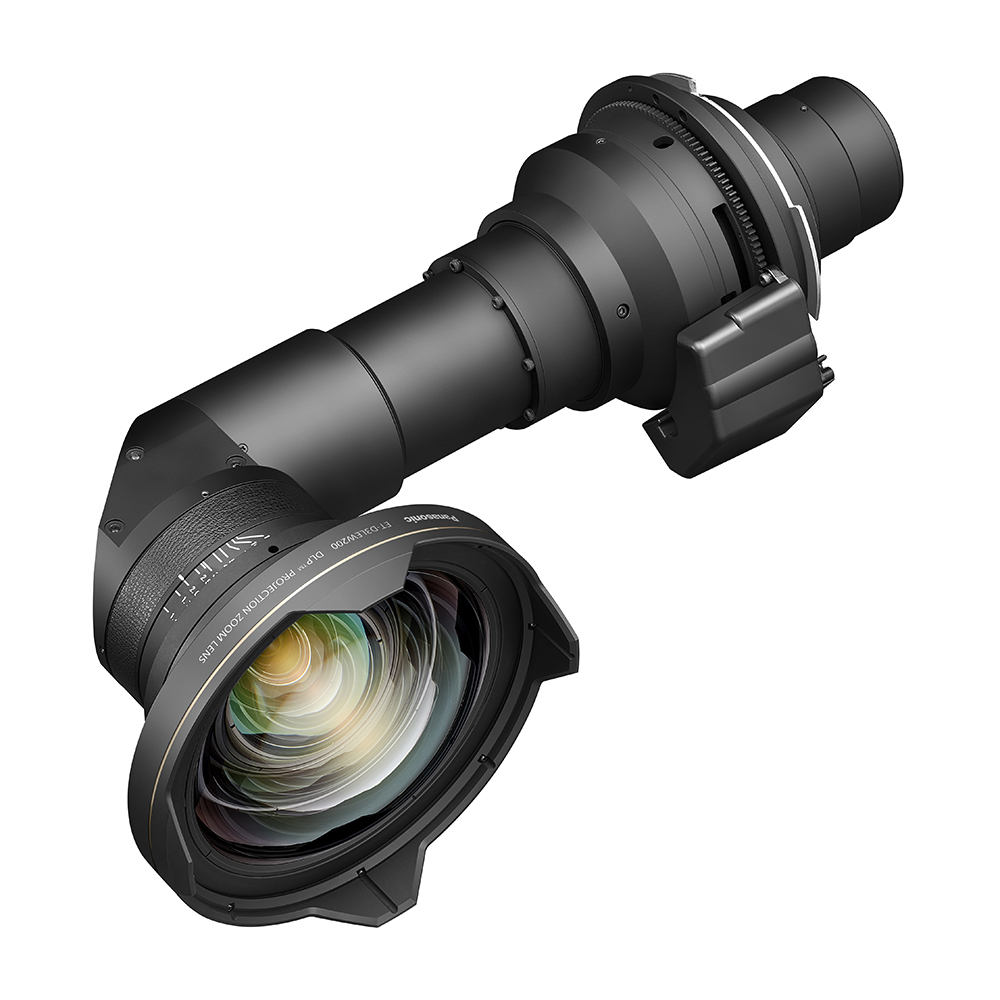

The ET-D3LEW200 brings together the best of both worlds: the space-saving benefits of an ultra-short-throw lens and the installation flexibility of a motorized zoom. With a throw ratio of approximately 0.65–0.91:1, it allows for large-scale projection in rooms where depth is limited, such as smaller studios, museum galleries, or low-ceiling corporate stages.
Its distinctive L-shaped design ensures the projector body remains parallel to the screen, keeping the hardware out of the audience's line of sight.
| Lens type | Short-Throw Zoom Lens |
|---|---|
| F-number | 2.5 |
| Focal length (f) | 13.8–18.1 mm (17/32˝–23/32˝) |
| Screen size | 200–600 inches |
| Throw ratio -> 4K+ | 0.693 ～ 0.913:1 |
| Throw ratio -> WUXGA | 0.645 ～ 0.850:1 |
| Throw ratio -> SXGA+ | 0.699 ～ 0.921:1 |
| Auto Lens Identification function Compatible models | PT-RQ32K/RZ31K/RS30K/RQ25K/RZ24K/RQ18K/RZ17K/RZ14K/RQ22K/RZ21K/RS20K |
| Lens-shift -> Vertical *1 | ±56 % |
| Lens-shift -> Horizontal *1 | ±19 % |
| Zoom | Yes |
| Dimensions -> (W) | 250 mm(9 27/32˝) |
| Dimensions -> (H) | 193 mm(7 19/32˝) |
| Dimensions -> (D) | 495 mm(19 1/2˝) |
| Weight [kg] | Approx. 9.0 kg (19.8 lbs) |
| Applicable projectors *2 | RQ35K Series/RQ32K/RZ31K Series/RQ25K Series/RQ22K/RZ21K Series/RZ16K/RZ14K |
| Footnote Description | * Value is for ceiling installations using the PT-RQ22K. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value. |
| Dimensions(WxHxD) | 250 × 193 × 495 mm (9-27/32 × 7-19/32 × 19-1/2") |
