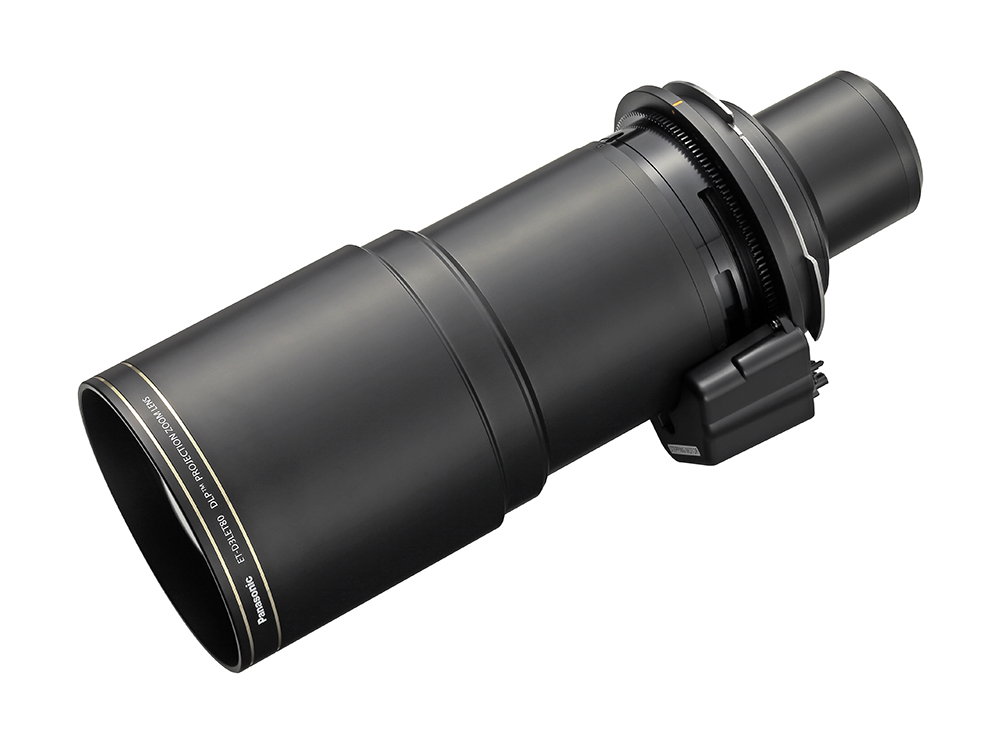

ET-D3LET80 — 3-Chip DLP™ Super-Long-Throw Zoom Lens

This is the longest-throw option in the family, a 7.34-13.8:1 (WUXGA) zoom lens for jobs where the projector needs to sit extremely far back from the screen — think stadiums, large-format rear projection, or oversized venue installs. It carries the same broad compatibility as the rest of the D3LE lens group, covering everything from the RQ35K2/RZ34K2 down through the RQ25K/RZ24K, RQ18K/RZ17K, and the new PT-HTQ20.

Key Features:

• Super-long throw ratio of 7.34–13.8:1 (WUXGA), stretching to 8.83–16.60:1 on the RQ25K Series
• Broad compatibility across nearly the entire current 3-Chip DLP™ range, including the new PT-HTQ20
• Heaviest and largest lens in the family (8.5 kg, 404mm deep) — reflects the extended optical path needed for this throw range
• Auto Lens Identification supported across all compatible bodies

Specifications:

• Lens type: Zoom Lens
• F-number: 2.5
• Focal length: 154.1–288.8 mm
• Throw ratio (WUXGA): 7.34–13.8:1 (RQ35K2/RQ35K/RZ34K2/RZ34K/RQ25K/RZ24K/RQ18K/RZ17K/RZ16K), or 8.83–16.60:1 (RQ25K/RZ24K/RQ18K/RZ17K/RZ14K)
• Throw ratio (4K+): 7.87–14.8:1
• Compatible models: PT-RQ45K/RZ44K, PT-RQ35K2/RZ34K2, PT-RQ35K/RZ34K, PT-RQ32K/RZ31K, PT-RS30K, PT-RQ25K/RZ24K, PT-RQ18K/RZ17K/RZ14K, PT-RQ22K/RZ21K, PT-RS20K/RZ16K, PT-HTQ20
• Dimensions (W x H x D): 154 x 154 x 404 mm
• Weight: Approx. 8.5 kg
