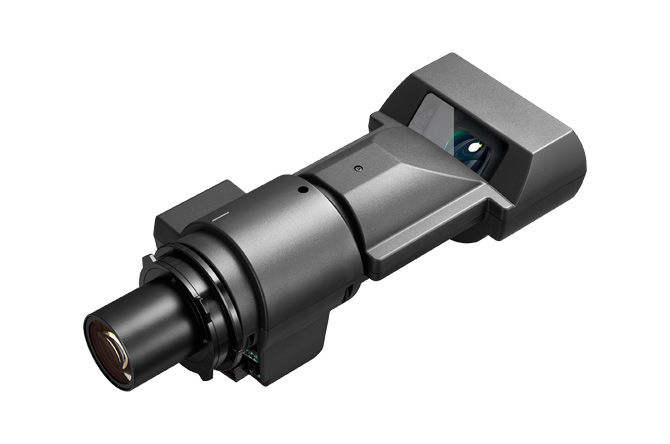

ET-C1U200 — Fixed Mirror Ultra-Short-Throw Lens

This is the ultra-short-throw option in Panasonic's new C1 lens series, a fixed-mirror design at 0.380:1 throw ratio for jobs where the projector has to sit right up close to the screen — ideal for tight cabinet installs, low-ceiling rooms, or rear-projection kiosks. Unlike the rest of the C1 lineup, it's a fixed mirror lens (no zoom), purpose-built for close-mount setups on the PT-REQ15 and PT-REZ15 series projectors.

Key Features:

• Ultra-short throw ratio of 0.380:1 (WUXGA) — covers 100–500 inch screens
• Fixed mirror design (no zoom) purpose-built for close-mount and cabinet installs
• Wide powered vertical lens shift (+78% to +88%) for flexible close-range placement
• UED glass and proprietary AR coating for improved native contrast and color uniformity
• Auto Lens Identification and Lens Memory supported across all compatible bodies
• Compact and lightweight for its throw class (2.2 kg)

Specifications:

• Lens type: Fixed Mirror Ultra-Short-Throw Lens
• F-number: 2.0
• Focal length: 6.4 mm
• Screen size: 100–500 inches
• Throw ratio (WUXGA): 0.380:1
• Lens shift: Vertical +78% to +88%, Horizontal ±9%
• Compatible models: PT-REQ15/REQ12/REQ10/REQ80, PT-REZ15/REZ12/REZ10/REZ80
• Dimensions (W x H x D): 139 x 124 x 359 mm
• Weight: Approx. 2.2 kg
