Product Description

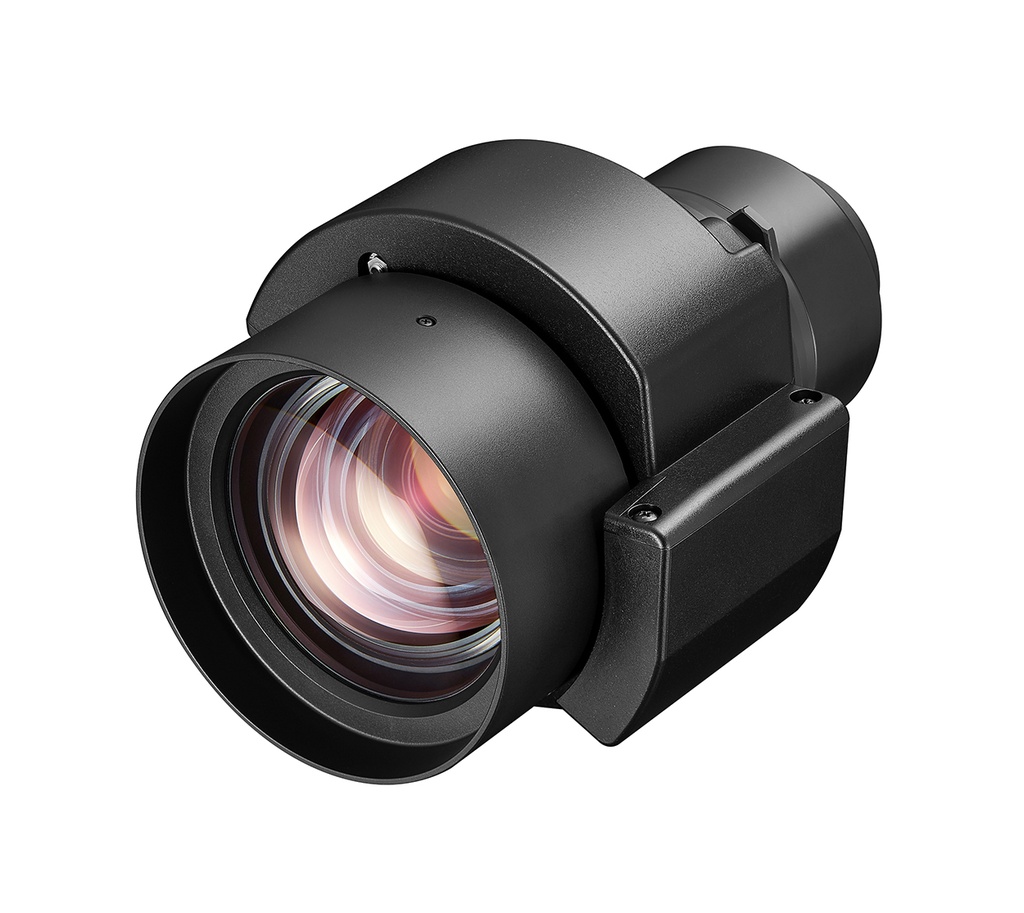

The Panasonic ET-C1S600 is the "Standard Zoom" lens of the C1 series. It is often the primary lens included (or "supplied") with Panasonic’s high-end 1-Chip DLP™ laser projectors because its throw range covers the most common installation distances in corporate offices, classrooms, and small-to-midsize event spaces.
| Lens type | Zoom Lens (Supplied Lens) |
|---|---|
| F-number | 1.8–2.3 |
| Focal length (f) | 23.9–37.2 mm (15/16"–1 15/32") |
| Screen size | 70–1000 inches |
| Throw ratio -> WUXGA | 1.36–2.10:1 |
| Auto Lens Identification function Compatible models | PT-REQ15/REQ12/REQ10/REQ80/ PT-REZ15/REZ12/REZ10/REZ80 |
| Lens-shift -> Vertical *1 | ±60 % |
| Lens-shift -> Horizontal *1 | ±29 % |
| Zoom | x1.54 |
| Dimensions -> (W) | Approx. 135 mm (5 5/16") |
| Dimensions -> (H) | Approx. 148 mm (5 13/16") |
| Dimensions -> (D) | Approx. 205 mm (8 1/16") |
| Weight [kg] | Approx. 1.7 kg (3.7 lbs) |
| Applicable projectors *2 | PT-REQ15/REQ12/REQ10/REQ80//PT-REZ15/REZ12/REZ10/REZ80 |
| Dimensions(WxHxD) | 135 × 148 × 205 mm (5-5/16 × 5-13/16 × 8-1/16") |
