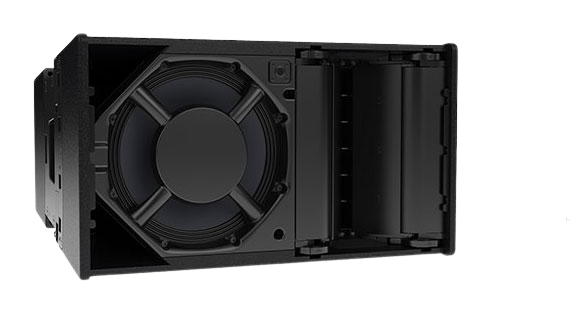

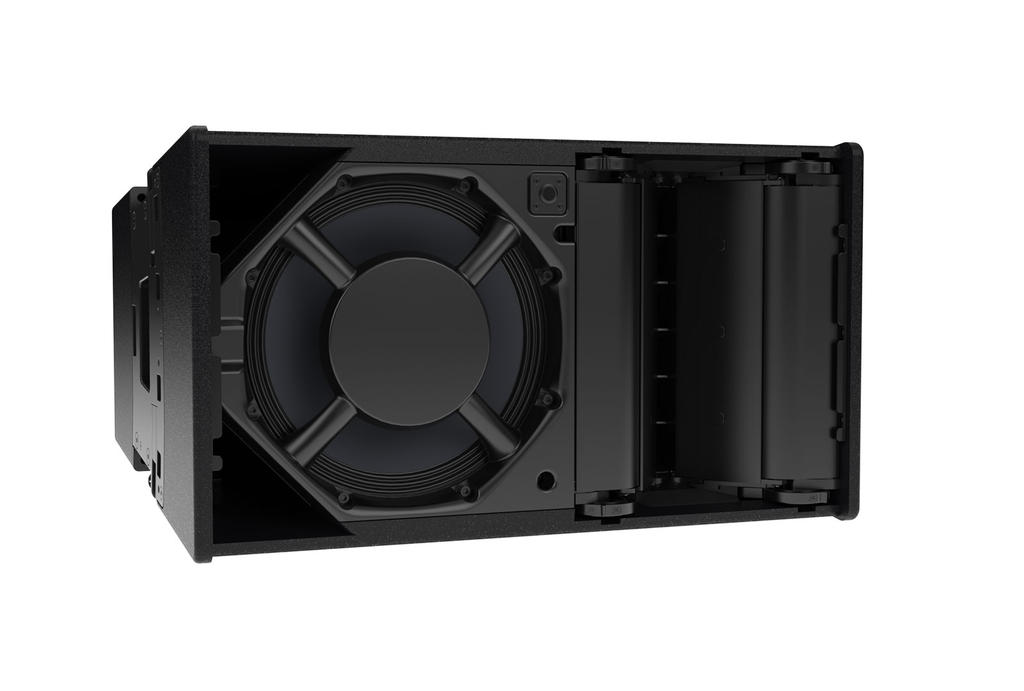

Passive, 15 degree Fixed Angle Constant Curvature Array Loudspeaker
For applications that typically require a throw between 15-30m, a full-blown line array is not always practical, optimal or affordable. Conversely, a point source solution may not be sufficient in coverage and SPL. TORUS is a constant curvature array, designed to fill that gap perfectly, combining optimised coverage, SPL and cost efficiency.
T1215 offers a narrow vertical pattern of 15° with a flexible horizontal pattern that can be manually adjusted between 90°, 60° or 75° (Asymmetrical) via the Dynamic Horn Flare™.
Features
- 1 x 12” (300mm) LF driver & 3 x 1.4” (35mm) HF drivers
- Passive fixed angle array cabinet of 15° for a narrow vertical dispersion pattern
- Manually adjustable Dynamic Horn Flare™ (between 60°, 90° or 75° Asymmetrical) for flexible horizontal pattern
- Phase plug for increased mid-band sensitivity
- Optimised coverage via DISPLAY 3 and powered by iKON amplifiers
- Plug-and-play system, quick set-up and easy rigging
Applications
- Optimised for short to medium-throw live sound and installation applications
- Fills, distributed systems, and centre clusters
