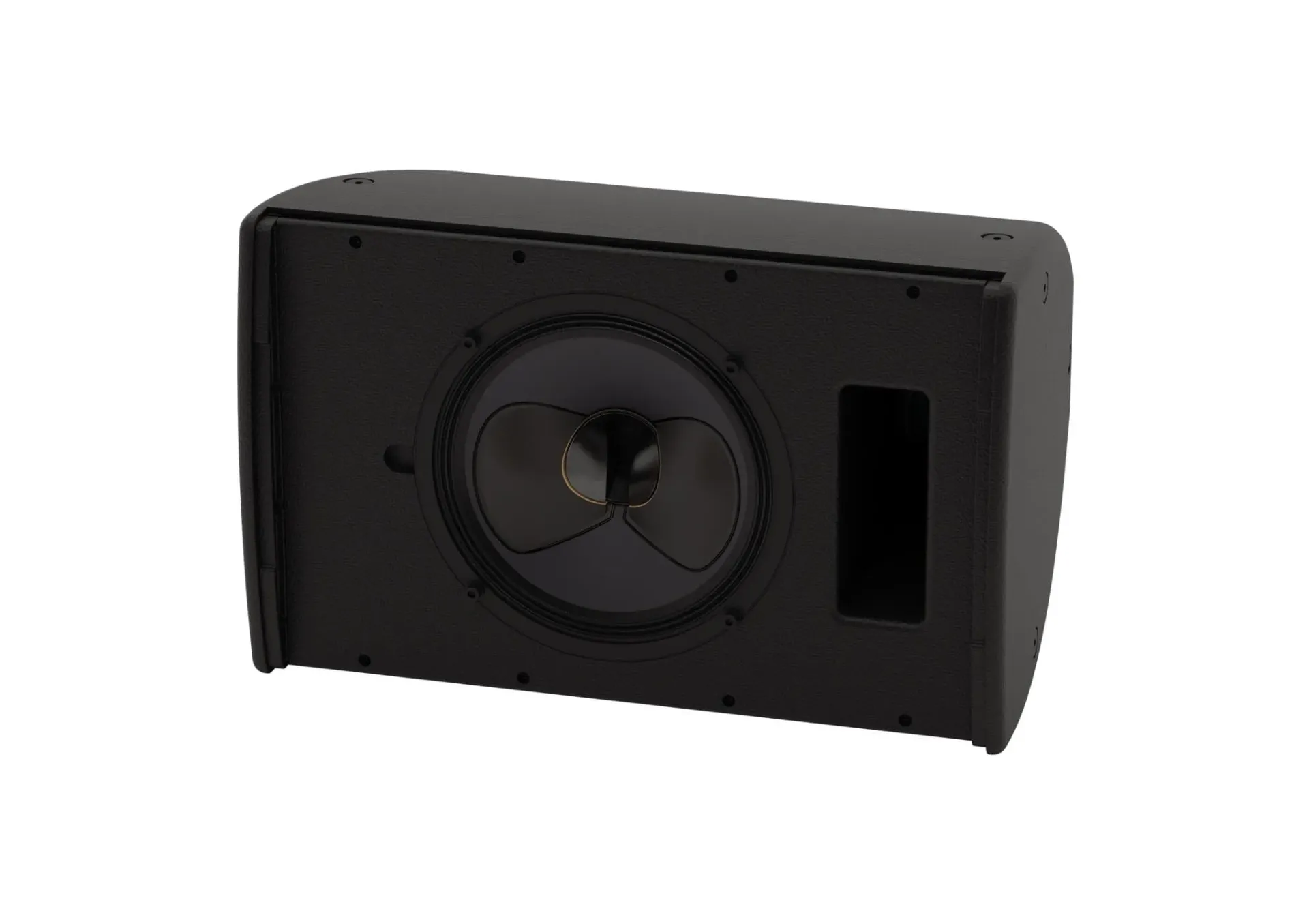

The CDD10TX is a very compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector) that utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver.
It is uniquely placed to meet the foreground requirements of varied architectural applications that require upfront sound levels from a very compact enclosure and that benefit from amplifier efficiency by being able to daisy-chain loudspeakers through use of the inbuilt transformer.
Features
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- Discreet mounting accessories
- Integral inserts for eyebolt suspension
- Black or white standard colour options
- 70V/100V line transformer (no low impedance)
| color | Black, White, RAL |
No reviews yet.
Specifications
| color | Black, White, RAL |
