Product Description
The Linea Research 88C06 (often referred to as the 88C6) is a versatile, high-density power amplifier designed for premium permanent installations. Delivering a total of 6,000 Watts RMS across eight independent channels, this 2U unit provides the perfect balance of power and high-resolution control for mid-sized venues, themed attractions, and luxury hospitality spaces.
With eight channels of sonically pure amplification in a single chassis, the 88C06 allows for complex multi-zone management while significantly reducing rack space and cooling requirements.
High-Density 8-Channel Power
The 88C06 is engineered for maximum flexibility, providing consistent power across all eight channels for various loudspeaker loads:
750W per channel @ 2 Ohms
750W per channel @ 4 Ohms
750W per channel @ 8 Ohms
750W per channel @ 70V/100V Hi-Z lines
1,500W per bridged pair @ 4 Ohms
Key Technical Features
Masterful 8-Channel 96kHz DSP: Every channel features Linea’s proprietary signal processing suite. Access high-resolution EQ, delay, and the advanced VX Limiter suite (Peak, RMS, and Excursion limiting) to ensure every zone is perfectly tuned and protected.
Networked Control: Full remote setup, monitoring, and management via a standard Ethernet connection, allowing for easy control of all eight zones from a central location.
Sonically Pure Class D: Features Linea Research’s proprietary 5th generation Class D topology, delivering the "warmth" and detail of high-end audio with modern digital efficiency.
Universal Power Supply: The advanced auto-sensing power supply (85V to 240V) ensures the amplifier remains stable even in areas with inconsistent power grids.
Physical & Installation Specs
Chassis Height: Standard 2U Rack Space.
Dimensions: 88mm x 482mm x 357mm (H x W x D).
Weight: 12.5kg (27.5 lbs).

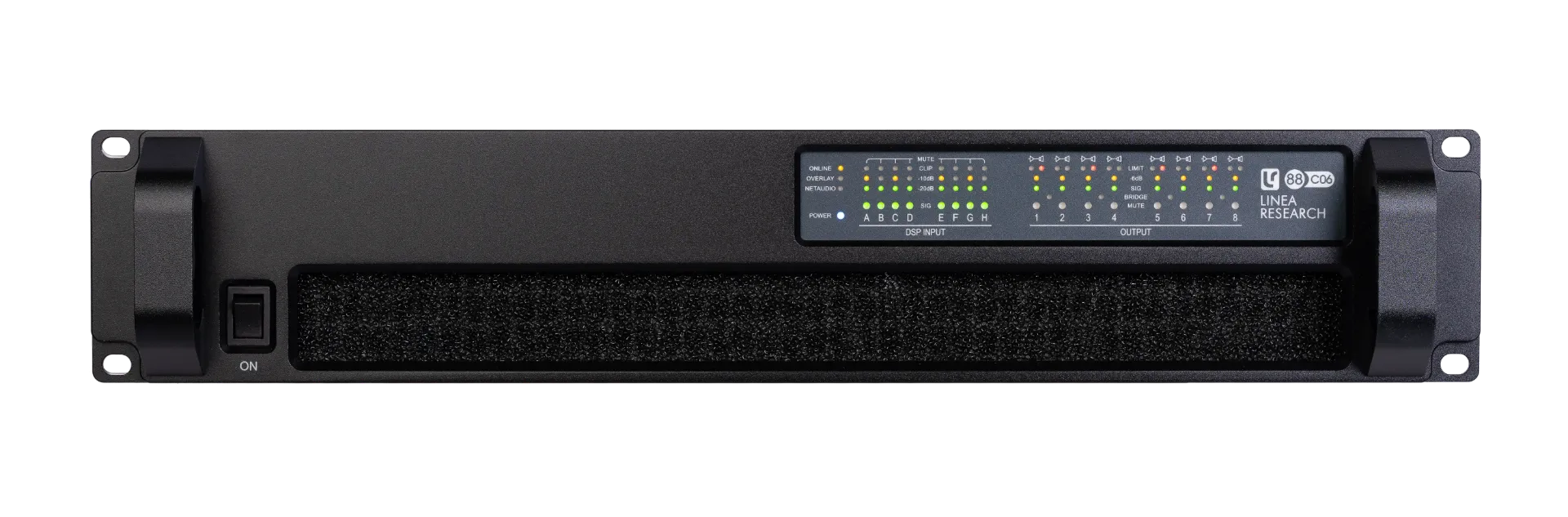

Front Panel: A clean, tamper-proof design with multi-segment LED indicators for signal, limit, and status across all 8 channels.
