Product Description

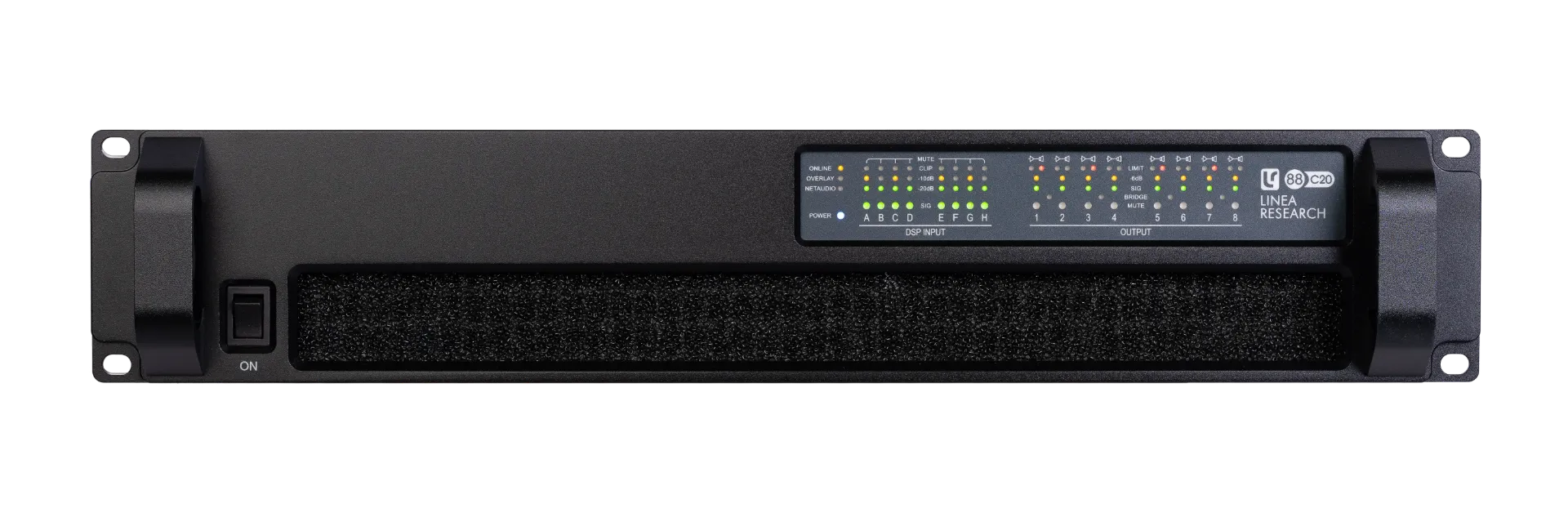

The Linea Research 88C20-Dante is the high-power flagship of the 88C Series, offering an extraordinary 20,000 Watts RMS across eight channels. Designed for large-scale, high-SPL installations like stadiums, arenas, and major performance venues, this 2U powerhouse provides massive headroom and unrivaled channel density.
By combining eight channels of high-current amplification with integrated 96kHz DSP and Dante™/AES67 networking, the 88C20-Dante allows you to drive an entire high-performance system from a single, compact unit.
Massive 8-Channel Power Density
The 88C20-Dante delivers staggering power levels, ensuring that even the largest loudspeaker arrays and subwoofers have the current they need:
2,500W per channel @ 2 Ohms
2,500W per channel @ 4 Ohms
1,500W per channel @ 8 Ohms
2,500W per channel @ 70V/100V Hi-Z lines
5,000W per bridged pair @ 4 Ohms
Key Technical Features
Integrated Dante™ & AES67: Dual-port Dante connectivity provides a direct digital audio path with full hardware redundancy and low-latency performance across your facility's network.
Masterful 96kHz DSP Suite: Every channel is equipped with Linea’s proprietary LMD (Linea Micro Detail) processing, featuring high-resolution EQ, FIR filters, and the advanced VX Limiter suite for total speaker protection.
Thermal Efficiency: Despite its massive 20kW output, the advanced Class D topology and resonant switch-mode power supply ensure minimal heat waste, keeping your equipment racks cool.
Universal Power Supply: Auto-sensing 85V to 240V operation allows for seamless global deployment and stability during power fluctuations.
Physical & Installation Specs
Rack Height: Standard 2U Rack Space (Saves significant rack real estate compared to multiple 2-channel or 4-channel amps).
Dimensions: 88mm x 482mm x 357mm (H x W x D).
Weight: 12.5kg (27.5 lbs).
Front Panel: Minimalist, tamper-proof design with multi-segment LED meters for signal, limit, and protection status for all 8 channels.
