Product Description

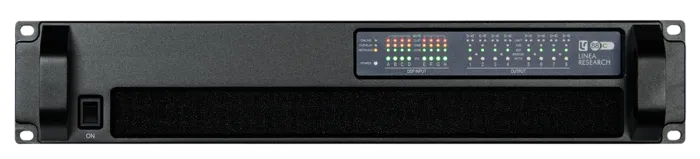

The Linea Research 88C10-Dante is a high-density power solution designed for sophisticated permanent installations. By providing eight independent channels of high-performance amplification in a compact 2U chassis, it allows system integrators to manage complex multi-zone environments with ease. With integrated 96kHz DSP and Dante™/AES67 networking, the 88C10-Dante ensures every zone—from the main lobby to the grand ballroom—sounds spectacular.
High-Density 8-Channel Power
The 88C10-Dante provides incredible flexibility for driving various loudspeaker loads across eight channels:
1,250W per channel @ 2 Ohms
1,250W per channel @ 4 Ohms
1,250W per channel @ 8 Ohms
1,250W per channel @ 70V/100V Hi-Z lines
2,500W per bridged pair @ 4 Ohms
Key Technical Features
Integrated Dante™ Networking: Dual-port Dante/AES67 connectivity allows for seamless digital audio distribution across large facilities with full hardware redundancy.
8-Channel Advanced 96kHz DSP: Every channel features Linea’s world-class signal processing suite, including high-resolution EQ, delay, and the advanced VX Limiter suite for precise loudspeaker protection.
Installation-Focused Efficiency: The 5th generation Class D topology is optimized to run cool in high-density equipment racks, reducing the need for additional cooling infrastructure.
Universal Power Supply: An auto-sensing 85V to 240V power supply ensures rock-solid performance on any power grid globally.
Physical & Installation Specs
Rack Height: Standard 2U Rack Space (Ideal for saving space in crowded AV racks).
Dimensions: 88mm x 482mm x 357mm (H x W x D).
Weight: 12.5kg (27.5 lbs).
Front Panel: Clean, tamper-proof design with clear LED indicators for signal, limit, and status per channel.
