Product Description

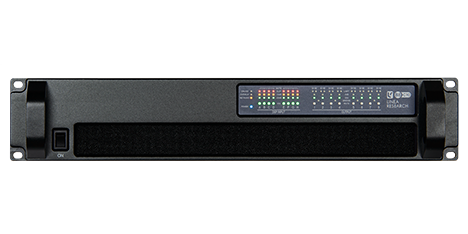

88C Series Amplifiers
Linea’s 88C Series of eight channel amplifiers are optimised for use in installations. Combining massive power and peerless audio performance with unique DSP, the 88C Series also incorporates many features that ease it’s integration on to both new and legacy systems, the 88C Series represents an unmatched advancement in amplifier technology.
88C Series Features
- Eight channels of sonically pure Class D amplification
- Unique, precise, 96kHz digital signal processing
- Over‐designed switch mode power supply
- 85V to 240V Auto-sensing PSU
- 3,000 to 20,000 watts RMS total output
- Tamperproof front panel
- Ethernet network for system operation and monitoring
- Analogue, AES3 and optional Dante™ / AES67 digital network audio
- Powerful grouping & multi‐layer EQ
- Accepts 48kHz and 96kHz FIR files via System Engineer (certain models)
- Fully designed and engineered in house by Linea Research
- Manufactured in the UK
| Number of output channels | Eight |
| Total power output, all channels driven | 20,000, 10,000, 6,000 and 3,000 Watts RMS |
| Audio inputs | 8x Analogue, 2x AES3 and 8x Dante™ / AES67 (factory fitted option) |
| Digital Signal Processing | High performance 96kHz DSP on all inputs and outputs |
| Control, monitoring and system status alarms | Ethernet network, RS232 & RS485 Volt-free relay and contact closure ports. Heartbeat system health output |
| Power-save modes | Standby after user defined time with fast wake up on audio Deep ECO sleep after user defined time with wake up on command |
| System standby and wakeup | Network command, audio detection & contact closure |
