Product Description

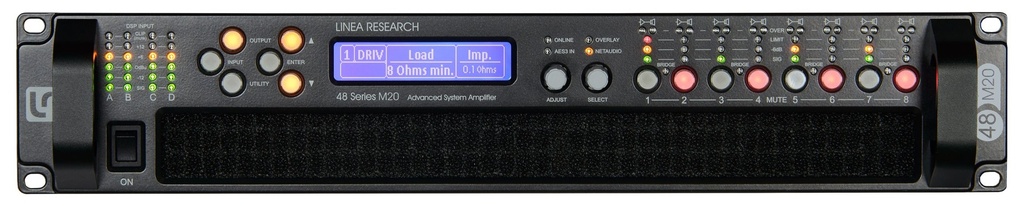

48M Series Amplifiers
Offering a unique combination of power and audio performance, seamlessly combined with advanced DSP and network control, the 48M Series range of eight channel amplifiers is available in models developing between 400 Watts and 1,250 Watts per channel.
Over designed high capacity power supplies ensure the full power specification can be delivered into 2 ohms with all channels driven while remaining highly efficient.
48M Series Features
- Eight channels of sonically pure Class D amplification
- Unique, precise, 96kHz digital signal processing
- Over‐designed switch mode power supply
- 85V to 240V Auto-sensing PSU
- 3,000 to 20,000 watts RMS total output
- Full front panel user interface
- Ethernet network for system operation and monitoring
- Analogue, AES3 and optional Dante™ / AES67 digital network audio
- Powerful grouping & multi‐layer EQ
- Accepts 48kHz and 96kHz FIR files via System Engineer (certain models)
- Fully designed and engineered in house by Linea Research
- Manufactured in the UK
| Number of channels | Eight |
| Total power output, all channels driven | 20,000, 10,000, 6,000 and 3,200 Watts RMS |
| Audio inputs | 4x Analogue, 2x AES3 and 4x Dante™ / AES67 (factory fitted option) |
| Digital Signal Processing | High performance DSP processing on all inputs and outputs |
| Control, monitoring and system status alarms | Ethernet network Volt-free relay and contact closure port |
| Power-save modes | Standby after user defined time, instant wake up on audio Deep ECO sleep after user defined time, wake up on command |
| System sleep and wakeup | Front panel switch, network command and audio detection |
