Product Description

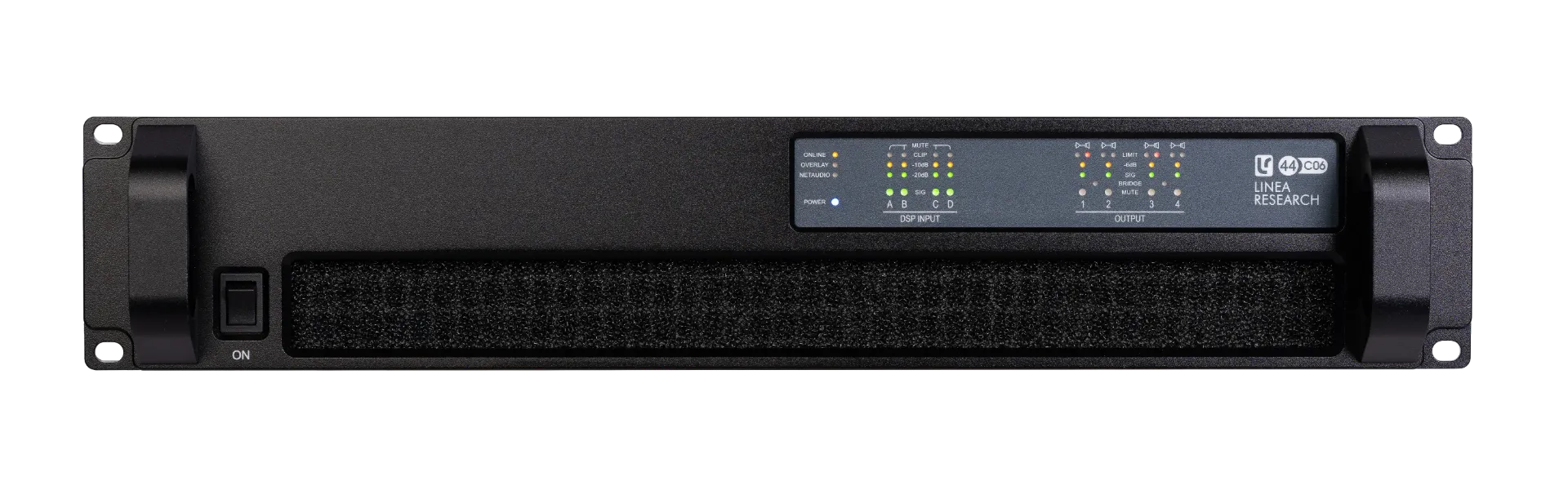

The Linea Research 44C06 is a high-performance installation amplifier that defines efficiency and sonic transparency. Delivering a total of 6,000 Watts RMS across four channels, this unit is engineered for high-end commercial spaces, performance venues, and auditoriums that require elite-level power and precision without the need for Dante networking.
Versatile Power for Any Installation
The 44C06 provides incredible flexibility, maintaining consistent power delivery across a variety of loudspeaker loads:
1,500W per channel @ 2 Ohms
1,500W per channel @ 4 Ohms
1,500W per channel @ 8 Ohms
1,500W per channel @ 70V Hi-Z lines
3,000W per bridged pair @ 4 Ohms
Key Technical Features
Networked Control: Full remote setup and monitoring via a standard Ethernet connection, allowing for easy system management from a central location.
Masterful 96kHz DSP: Includes Linea’s world-class signal processing suite. Access high-resolution EQ, delay, and the advanced VX Limiter suite (Peak, RMS, and Excursion limiting) to keep your system safe and sounding perfect.
Sonically Pure Class D: Features Linea Research’s proprietary 5th generation Class D topology, offering the warmth and detail of a high-end analog amplifier with modern digital efficiency.
Universal Power Supply: The advanced auto-sensing power supply (85V–240V) ensures the amplifier remains stable even in areas with fluctuating power grids.
Physical & Installation Specs
Chassis Height: Standard 2U Rack Space.
Dimensions: 88mm x 482mm x 357mm (H x W x D).
Weight: 12.5kg (27.5 lbs).
Inputs: Balanced analog inputs via rear-panel connectors, optimized for permanent fixed-installation wiring.
