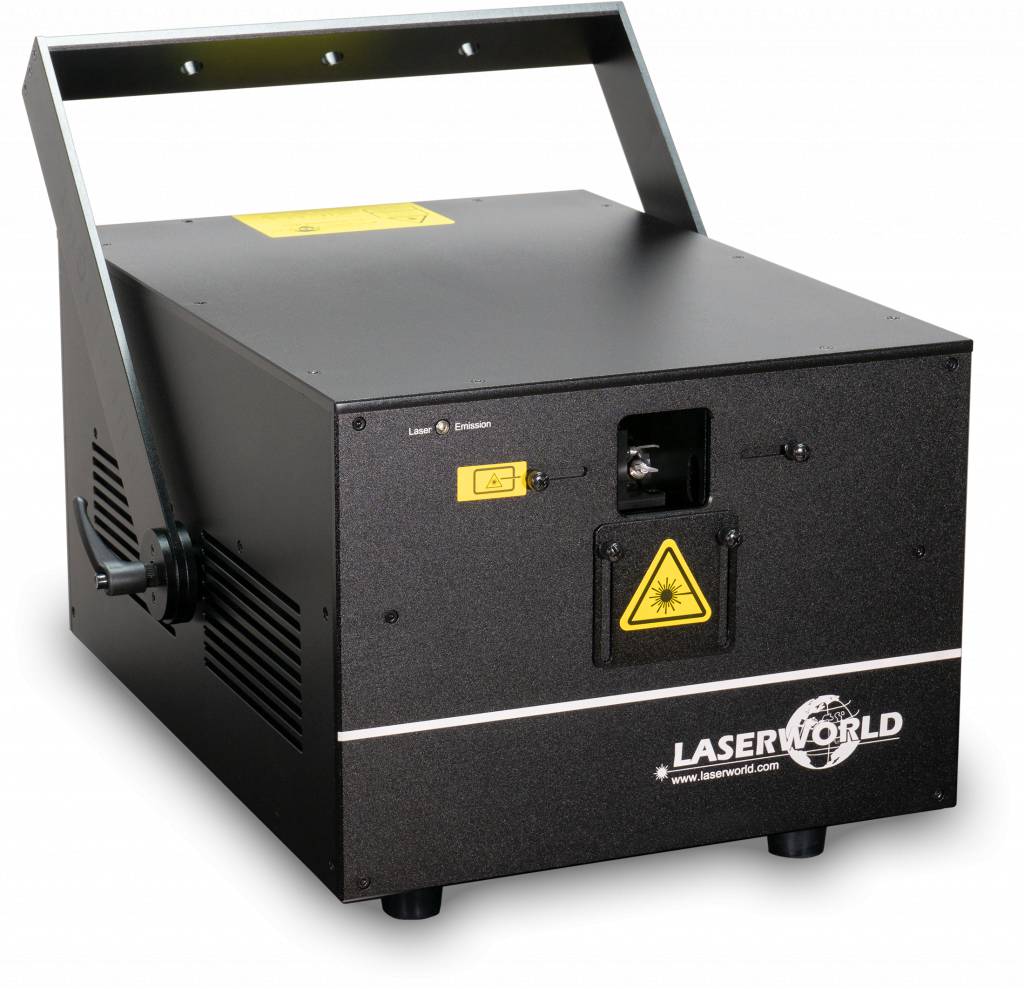

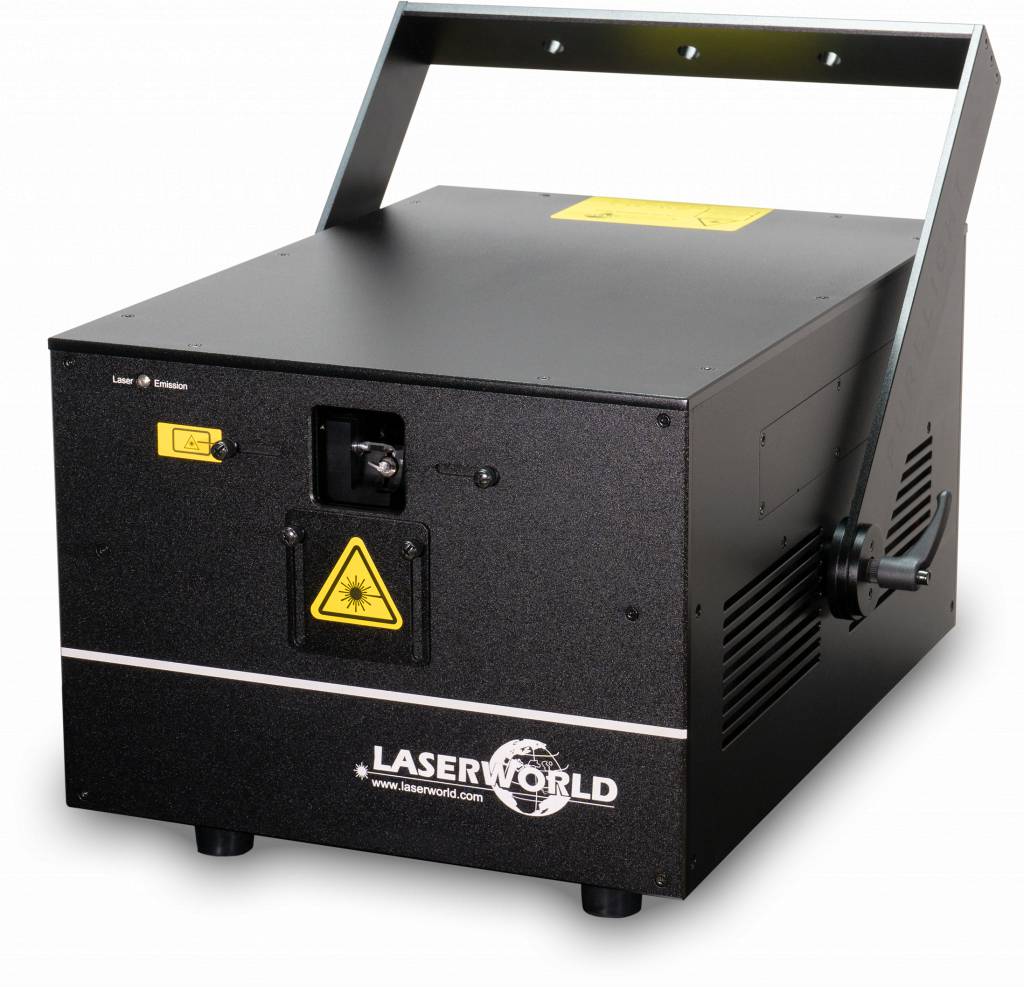

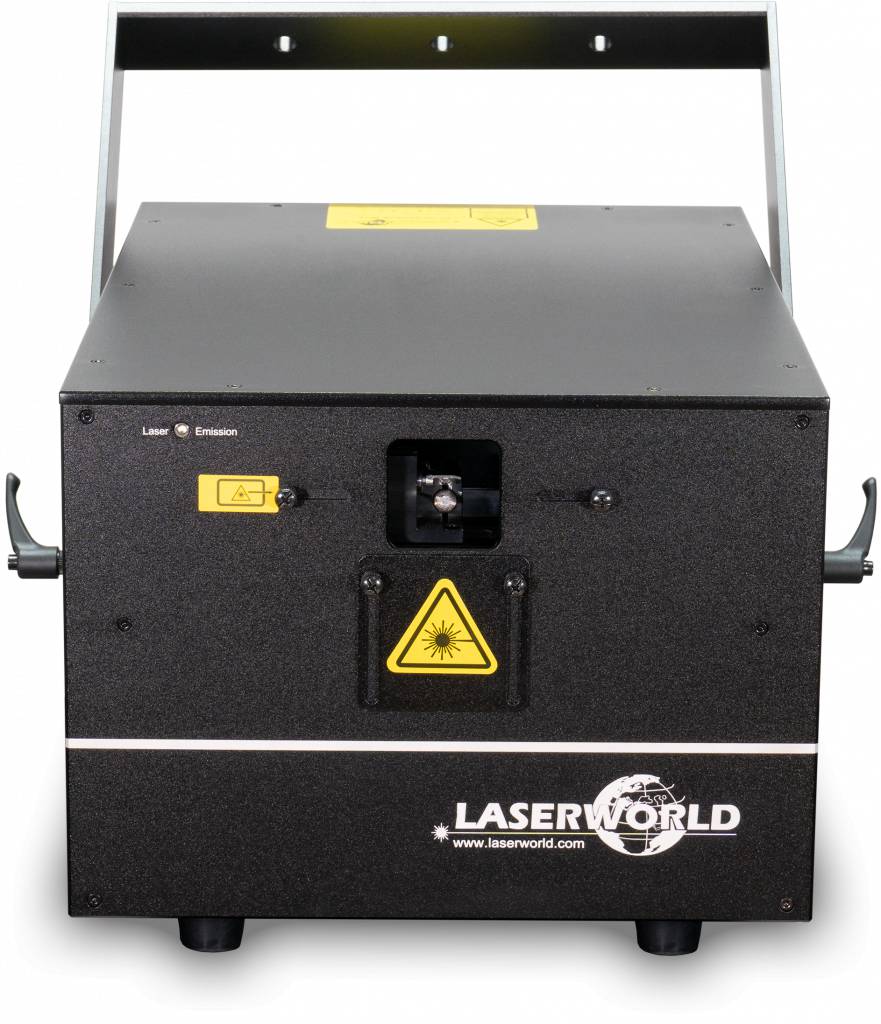

Laserworld Laserworld PL-30.000RGB MK3

The Laserworld PL-30.000RGB MK3 show laser light is completely equipped with diodes and has a good white balance, with linear color fading behaviour and high visibility. The Laserworld PL-30.000RGB MK3 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX or automatic mode. The Laserworld PL-30.000RGB MK3 comes with integrated ShowNET network interface and free laser show software. Details in the box below. Advantages of the Laserworld PL-30.000RGB MK3 laser light are:

• a low-cost yet powerful solution for power demanding laser applications
• great for large nightclubs and big stages
• brilliant colors with great linear color fading behavior
• ideal for long distance beam shows and basic graphics projections

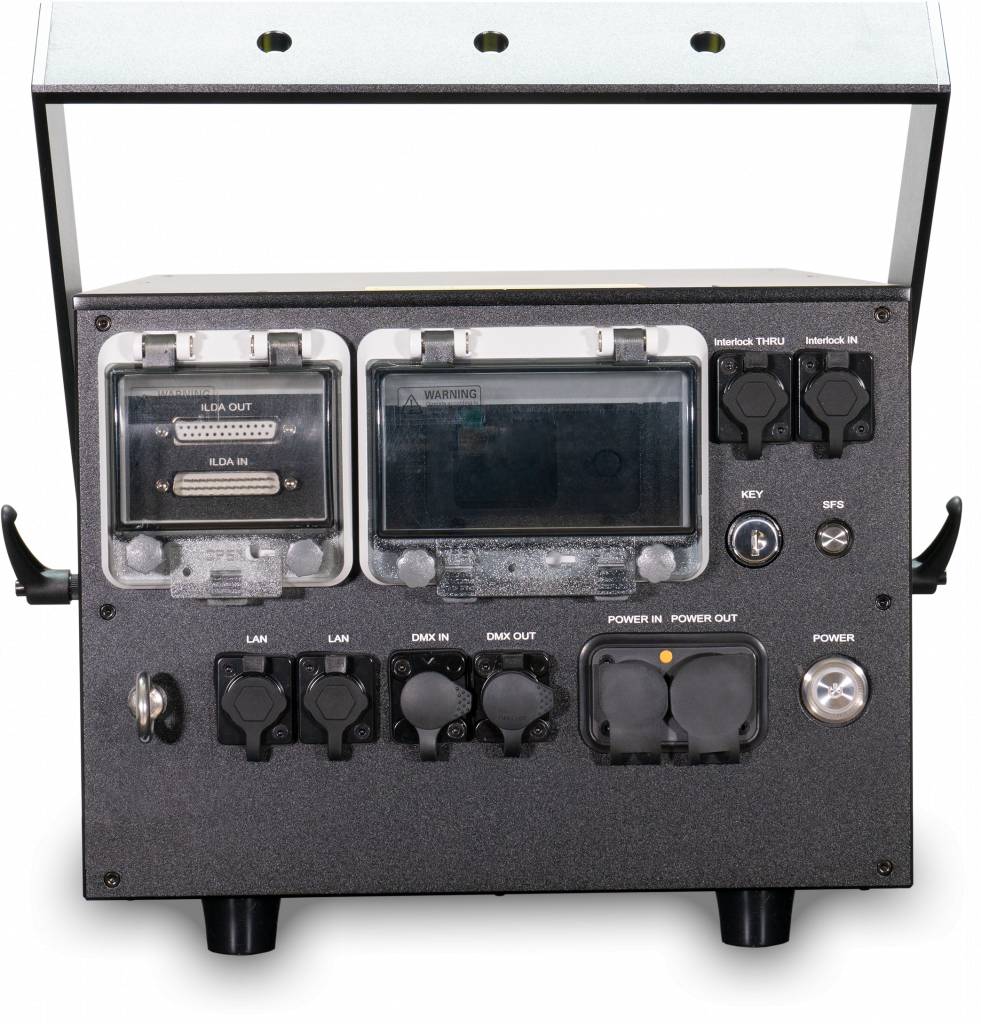

The Laserworld PL-30.000RGB MK3 has a beam diameter of about ca. 6.5 mm and beam divergence of ca. 1.0 mrad. Guaranteed output power at aperture is 30'000 mW. 9'000 mW / 638 nm (red), 12'000 mW / 520 nm (green), 12'000 mW / 450 nm (blue). Fast scanners work at a speed of 40kpps @ 8° ILDA and can do a max. scan angle of 50°. The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low. The show laser has an internal PSU for easy handling. At the back of the unit there are trim pots for color settings, so the color balance can be quickly adjusted. The X- / Y-axis can also be mirrored through switches. Additionally the scan safety can be set at the backside of the laser system.
