Product Description

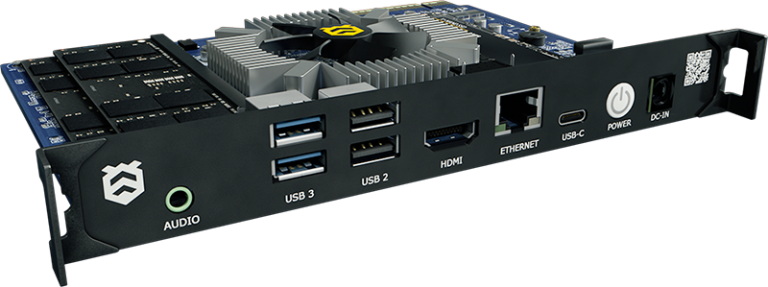

The Pluto variant is a powerhouse of performance, named after one of the world’s largest and most powerful bees, symbolizing its strength and capability. Designed to handle the most demanding media tasks, it offers storage options of 2TB or 4TB, ensuring ample space for high-resolution content. Supporting a maximum media resolution of 8192 x 4320 at 60Hz and delivering output via HDMI 2.0 at up to 4K at 60HZ, Pluto can sample from an 8K media file and output 4k visuals with unmatched clarity and detail, while supporting smooth 240 frames per second for HD content.
With the ability to manage HEVC bitrates up to 800 Mbps, Pluto excels in advanced playback scenarios, supporting up to two 4K layers or a single 8K layer. This makes it the ultimate solution for professionals who demand top-tier performance and versatility in their media workflows.
| GPU | Intel® Iris® Xe |
|---|---|
| Memory | 32GB DDR4 |
| Storage Option 1 | 2TB |
| Storage Option 2 | 4TB |
| Max media resolution | 8192 × 4320 @ 60 |
| Output | HDMI 2.0, NDI |
| Max output resolution | 4096 × 2400 @ 60Hz |
| Max frame rate | 240 FPS (HD) |
| Max HEVC bit rate | 800 Mbit |
| Layers | 2 × 4K or 1 × 8K + Media Regions |
| Ethernet | 1 Gigabit |
| Video Input | NDI, USB |
| Connections | SDM, USB 2.0, USB 3.0, USB-C, RJ45, HDMI 2.0 |
| Inputs | NDI, USB capture |
| Voltage | 12V DC or SDM |
| Power | 40W average, 60W max |
| Dimensions | W 175mm × D 100mm × H 24.5mm |
| Weight | 250g |
| Operating temperature | 0°C to 25°C |
| Cooling | Internal fan (~45 dB) |
| Codec support | H265 / HEVC, H264, Notch LC, AIM |
| Control | Artnet, UDP, OSC, HTTP, WebSockets, StreamDeck, Companion |
| Synchronisation | Beesync HDMI genlock equivalent, SMPTE MTC, Artnet timecode |
| Software | Hive Render Engine, Hive Web Server, OS: Ubuntu 22.04 |
| Optional Accessories | PSU, optional enclosures for non-SDM displays |
