Product Description

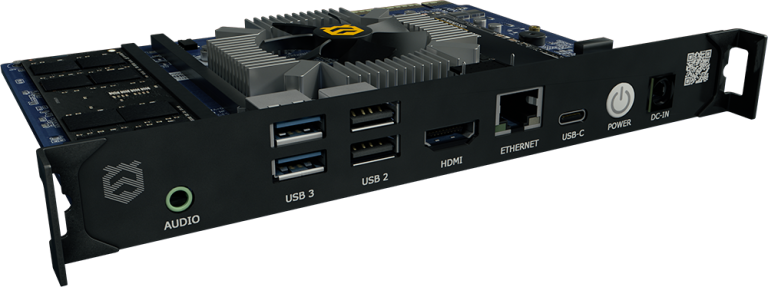

The Osmia variant is a versatile and robust solution for 4K playback, taking its name from the Osmia bee, an everyday bee known for its adaptability and reliability. With storage options of 1TB or 2TB, it is built to handle demanding workflows with ease. Supporting a maximum media resolution of 4096 x 2400 at 60Hz and offering output via HDMI 2.0, the Osmia delivers stunning 4K visuals with smooth performance at up to 120 frames per second for HD content.
Equipped to manage HEVC bitrates up to 400 Mbps and supporting up to two 4K playback layers, the Osmia is an ideal choice for professionals seeking a balance of power and efficiency in their media operations.
| GPU | Intel® Iris® Xe |
|---|---|
| Memory | 16GB DDR4 |
| Storage Option 1 | 1TB |
| Storage Option 2 | 2TB |
| Max media resolution | 4096 × 2160 @ 60 |
| Output | HDMI 2.0, NDI |
| Max output resolution | 4096 × 2160 @ 60 |
| Max frame rate | 120 FPS (HD) |
| Max HEVC bit rate | 400 Mbit |
| Layers | 2 × 4K + Media Regions |
| Ethernet | 1 Gigabit |
| Video Input | NDI, USB |
| Connections | SDM, USB 2.0, USB 3.0, USB-C, RJ45, HDMI 2.0 |
| Inputs | NDI, USB capture |
| Voltage | 12V DC or SDM |
| Power | 30W average, 60W max |
| Dimensions | W 175mm × D 100mm × H 24.5mm |
| Weight | 250g |
| Operating temperature | 0°C to 25°C |
| Cooling | Internal fan (~45 dB) |
| Codec support | H265 / HEVC, H264, Notch LC, AIM |
| Control | Artnet, UDP, OSC, HTTP, WebSockets, StreamDeck, Companion |
| Synchronisation | Beesync HDMI genlock equivalent, SMPTE MTC, Artnet timecode |
| Software | Hive Render Engine, Hive Web Server, OS: Ubuntu 22.04 |
| Optional Accessories | PSU, optional enclosures for non-SDM displays |
