Product Description

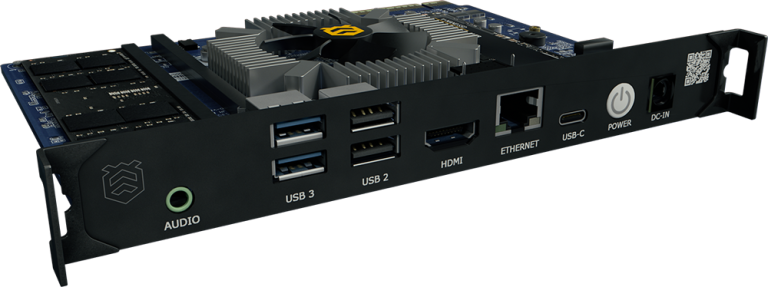

The MINIMA variant is a compact yet powerful solution for HD playback, inspired by its namesake—the world’s smallest bee, known for its precision and efficiency.
With storage options of 500GB, it offers flexibility to meet your media needs. Supporting a maximum media resolution of 2048 x 1200 at 60Hz and delivering output via HDMI 2.0, the Minima ensures crystal-clear visuals at up to 60 frames per second.
Designed for efficiency, it handles HEVC bitrates up to 240 Mbps and supports up to two 2K playback layers, making it ideal for demanding professional applications where precision and reliability are key.
| GPU | Intel® UHD |
|---|---|
| Memory | 16GB DDR4 |
| Storage Option 1 | 500GB |
| Storage Option 2 | 1TB |
| Max media resolution | 2048 × 2160 @ 60 |
| Output | HDMI 2.0, NDI |
| Max output resolution | 2048 × 2160 @ 60 |
| Max frame rate | 60 FPS |
| Max HEVC bit rate | 240 Mbit |
| Layers | 2 × 2K + Media Regions |
| Ethernet | 1 Gigabit |
| Video Input | NDI, USB |
| Connections | SDI, USB 2.0, USB 3.0, USB-C, RJ45, HDMI 2.0 |
| Inputs | NDI, USB capture |
| Voltage | 12V DC or SDM |
| Power | 25W average, 60W max |
| Dimensions | W 175mm × D 100mm × H 24.5mm |
| Weight | 250g |
| Operating temperature | 0°C to 25°C |
| Cooling | Internal fan (~45 dB) |
| Codec support | H265 / HEVC, H264, Notch LC, AIM |
| Control | Artnet, UDP, OSC, HTTP, WebSockets, StreamDeck, Companion |
| Synchronisation | Beesync HDMI genlock equivalent, SMPTE MTC, Artnet timecode |
| Software | Hive Render Engine, Hive Web Server, OS: Ubuntu 22.04 |
| Optional Accessories | PSU, optional enclosures for non-SDM displays |
