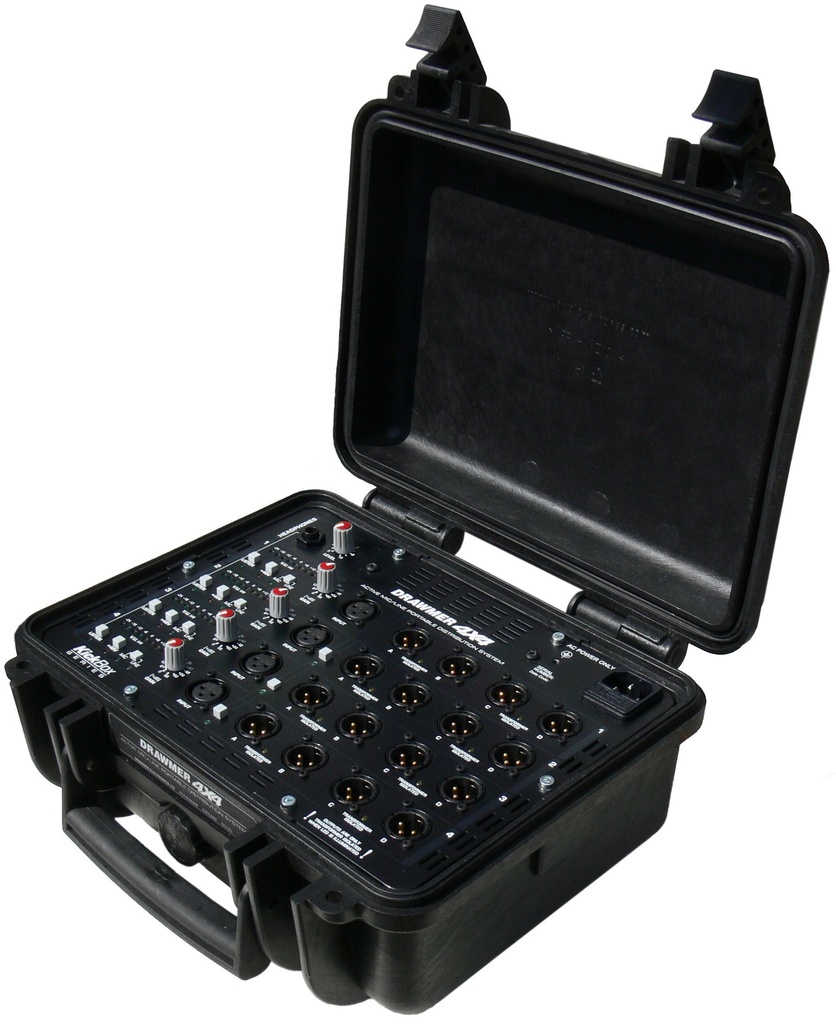

Drawmer KICKBOX 4X4

Inputs

4 STUDIO GRADE MIC/LINE PRE-AMPS; INDEPENDENT INPUT BARGRAPH METERING; 66dB OF VARIABLE GAIN; 48V PHANTOM POWER; MIC/LINE SWITCHING; HEADPHONE MONITORING FACILITY;

Outputs

4 OUTPUTS PER CHANNEL; ACTIVE SPLITTING ALLOWS FOR LONG CABLE RUNS; OPTIONAL TRANSFORMER ISOLATION; TRANSFORMER LOADED LED STATUS. LINKING;

Can be configured as:

1x 1 IN/16 OUT; 2x 1 IN/ 8 OUT; 1x 1 IN/12 OUT plus 1 IN/4 OUT; 4x 1 IN/4 OUT;

Other Features

PORTABILITY; INTERSTACKABLE; REMOVABLE LID TO PROVIDE EASY ACCESS AND CABLE ROUTING; COMPACT SELF CONTAINED ROAD PROOF CASE ELIMINATES THE NEED FOR BULKY FLIGHT CASES; WHEN LOCKED IT’S DUST / WATER / CORROSION PROOF;
