Brand Name:
Drawmer
Product Description
Rackmount Active Splitter

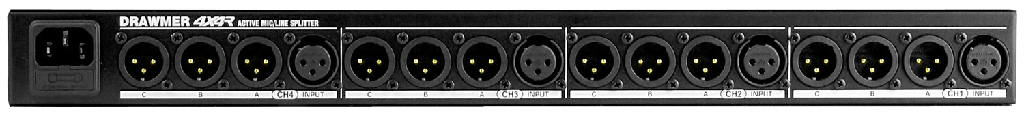

The 4x4R is a 4 in/16 out mic/line signal splitter. Its extremely high audio quality, robust build make it the ideal tool to provide multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events and any situation where distribution of high quality audio is required. It incorporates 4 studio grade mic/line pre-amps, each providing up to 66dB of gain and 16 balanced output stages, each with the option of transformer isolation and comprehensive linking facilities all in a 1U rackmountable housing.A Multi-Purpose Tool For Signal Distribution
Inputs
- 4 Studio Grade Mic/line Pre-amps.
- Independent Input Bargraph Metering.
- 66db of Variable Gain.
- 48v Phantom Power.
- Mic/line Switching.
- Headphone Monitoring Facility.
Outputs
- 4 Outputs Per Channel.
- Active Splitting Allows for Long Cable Runs.
- Optional Transformer Isolation.
- Linking.
Configurations
- 1x 1 IN/16 OUT.
- 2x 1 IN/ 8 OUT.
- 1x 1 IN/12 OUT plus 1 IN/4 OUT.
- 4x 1 IN/4 OUT.
