Product Description

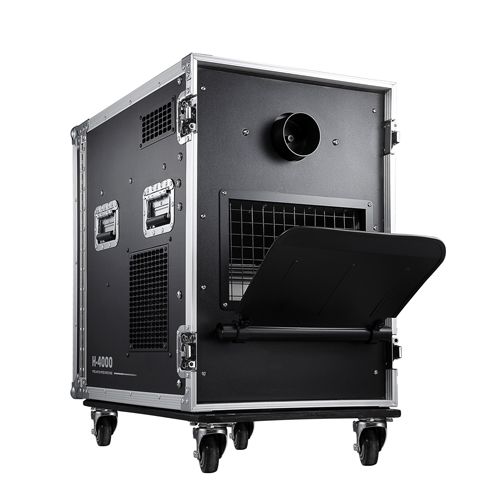

H-4000 PRO wave haze machine is specially designed for big shows. Integrated in a flight case, it creates enormous amounts of fog or fine, long-lasting haze to fill up the venue in minutes. It is perfect for theaters, large clubs, stage productions, rental companies and industrial applications.
SPECIFICATIONS
AC POWER
Input Voltage & Rate: 220-240 V, 50/60 Hz
Current Limiter Type: Breaker
Current Limiter Specifications: 15 A, 250 V
Total Power Consumption: 2,900 W
Operating Current: 12.6 A
Power Input Connector: Lockable PowerCon
HEATING
Heat Up Time: Appr. 10.0 min
Heater Type: Aluminum Heater Block
CAPACITY
Fluid Tank Capacity : 2.6 Gal.
OUTPUT
Adjustable Volume: √
Volume Adjustment Level/Range: 1-100%
Max Output Volume: Appr. 48,000 cfm
Max Output Distance : Appr. 10 m (5 s)
Max Coverage: Appr. 1,200 ㎡
Fluid Consumption @ full volume : Appr. 150.0 mL/min
Maximum Continuous Duration @ full volume: Unlimited
Continuous Output : √
Max Continuous Output Level: 100%
Fully-loaded Cumulative Output Duration @ full volume: Appr. 66 min
Consumable Type for Standard Output Test: PRO-C/PRO-J
FEATURES
Physical Thermostat: ×
Electronic Thermo-Control: √
Adjustable Output : √
Adjustable Fan Speed: √
No-Fluid Protection: √
CONTROL
On-device Manual Control : LCD control board
Wireless Control: ×
Wired Control: ×
Control Protocol: DMX-512
DMX Channel Range: 2
Data Connectors: 3- and 5-pin XLR
ACCESSORY
Flight Case: √
Power Cord: √
Wireless Controller Model: ×
Wired Controller Model: ×
CONSUMABLE
Consumable: PRO-C or PRO-J Haze Fluid
WEIGHT & DIMENSIONS
Net Weight: 69 kg / 152.1 lb.
Gross Weight: 73.5 kg / 162 lb.
Machine Dimensions: 812 × 512 × 825 mm / 32 × 20.2 × 32.4 in.
Packing Dimensions: 869 × 564 × 895 mm / 34.2 × 22.2 × 35.2 in
