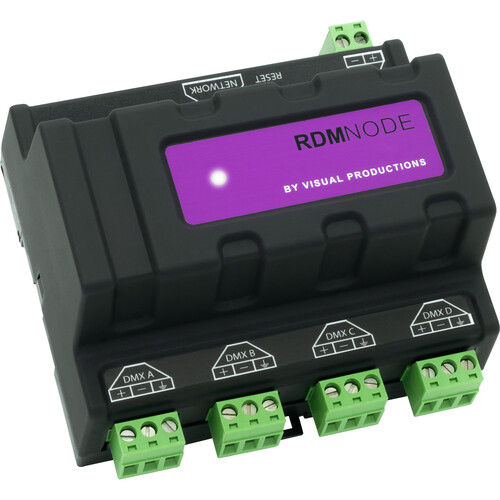

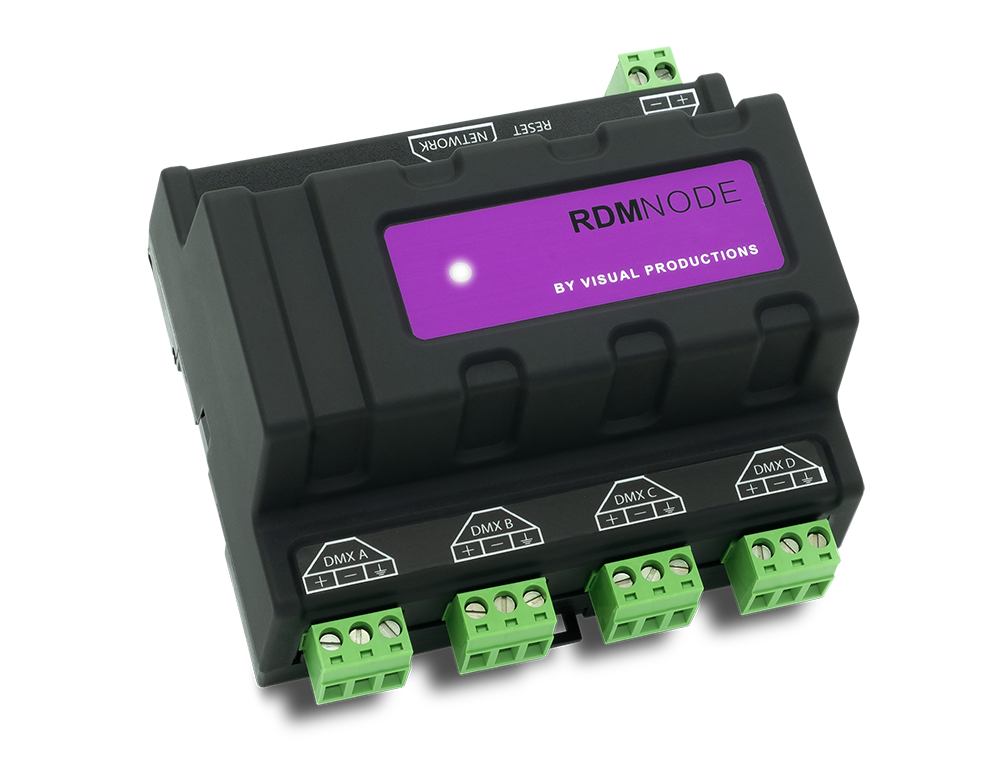

4-port eDMX converter
The RdmNode is a 4-port eDMX node designed to seamlessly convert Art-Net and sACN into DMX-512 and vice versa. Its compact DIN Rail form factor makes it an excellent choice for system integration and architectural lighting projects.
Specifications
- Ethernet port
- Programming via web-interface
- 4 x DMX512-A (ANSI E1.11) port (Opto-isolated, bi-directional)
- RDM over Art-Net
- Art-Net
- sACN
- Power consumption 9-24V DC 500mA
- Power over Ethernet (class I)
- Dimensions 105 x 86 x 60 mm (4.1 x 3.4 x 2.4 inches)
- Operating temperature -20°C to +50°C (-4°F to 122°F)
- Operating relative humidity 10% to 80% non-condensing
- Compliance: CE, ROHS, UKCA
