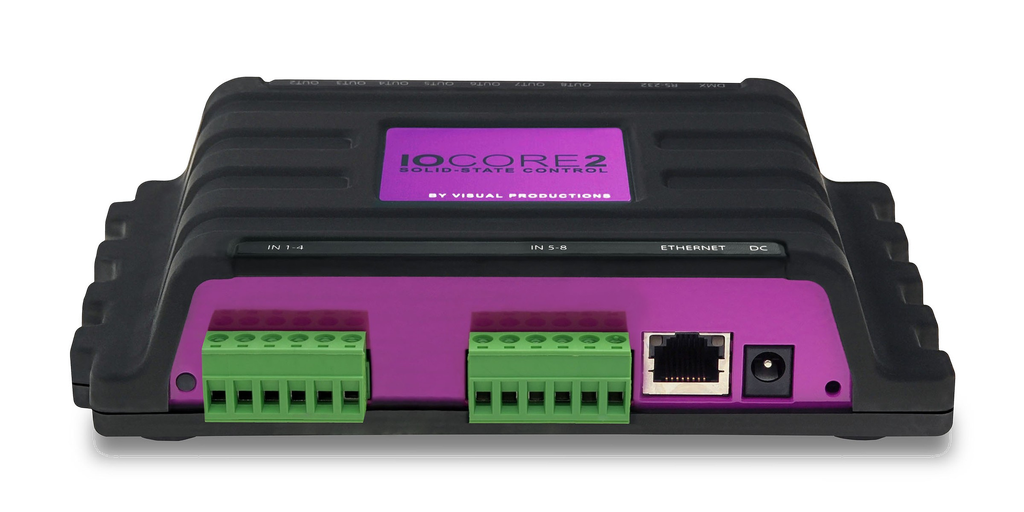

The IoCore2 is a network-based solid-state interface for GPIO signals. It features eight GPI ports that can be configured as digital contact-closures or analog 0-10V level inputs. The IoCore2 also has eight GPO ports that are fitted with potential free relay switches. Furthermore, it has a RS-232 port, a bi-directional DMX-512 port and it supports many Ethernet based protocols.
Specifications
• Ethernet port • Programming via web-interface • 8 x Analogue or Digital inputs • 8 x Relay (250VAC/30VDC max. 2A) • DMX512-A (ANSI E1.11) port (opto-isolated, input or output) • RS-232 port (in & out) • Art-Net (in & out) • sACN (in & out) • TCP (in) • USP & OSC (in & out) • 12-24 DC 500mA (PSU included) • Power over Ethernet (class I) • Kensington lock • Desktop, DIN Rail or 19″ rack mount (optional adapter) • Operating temperature -20°C to +50°C (-4°F to +122°F) • Compliance EN55103-1 EN55103-2 • Bundled with CueluxPro, vManager and Kiosc software
