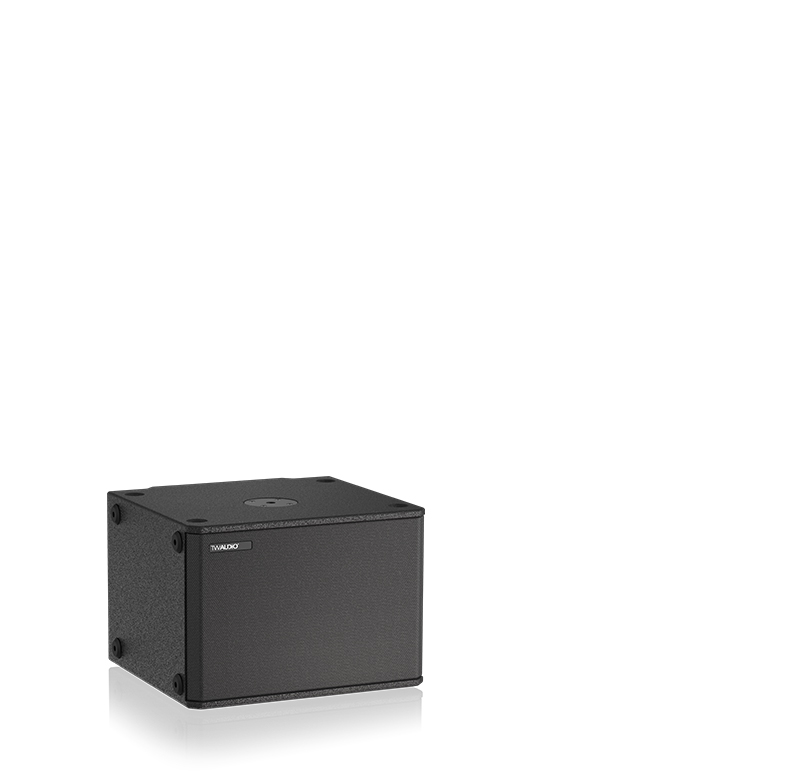

The B12 is a completely newly developed solution that has been optimized in every detail - from the chassis to the enclosure. As a powerful addition, it harmonizes with our ELLA6 system as well as with M8 and M10, for example, and offers maximum flexibility
for a wide range of applications. Its extremely compact housing houses a newly designed chassis that combines extreme power with astonishingly low weight. The B12 weighs just 19 kg. Acoustically, it is anything but a lightweight.
As a direct radiator in a bass reflex design with flow-optimized, symmetrical ports, it offers dynamic and impulse-true bass reproduction - perfect for demanding and versatile applications.
But the B12 can do even more and has an innovative special feature: Two B12 subwoofers can be mechanically connected back to back with a magnet system built into the housing. This creates an acoustic dual 12" subwoofer unit. Simply set it up, wire it up, load the preset for cardio mode and get started. Without any additional measurements. This saves time and allows you to react flexibly and quickly to spatial conditions or artists' wishes. Its concept defines it as a "multifunctional subwoofer" and makes it an incomparable product on the market.
Technical data
| Drivers | 1 × 12" |
| Frequency range | 37 – 170 Hz |
| Power capacity program / peak | 1500 / 3000 W |
| Impedance | 12 Ω |
| Coverage | omni* |
| Sensitivity 1 W / 1 m | 94 dB |
| SPLmax / 1 m | 129 dB |
| Connection | NL4 2± |
| Dimensions (H × W × D) | 356 × 506 × 468 mm [14.02 × 19.92 × 18.43 in] |
| Weight | 19 kg [42 lbs] |
| Finish | Polyurea coating, black |
| Accessories | QDB12, BagB12, Cover2B12 |
| *With 2× B12, cardioid, hypercardioid or endfire coverage can be achieved with the corresponding preset. |
