Features

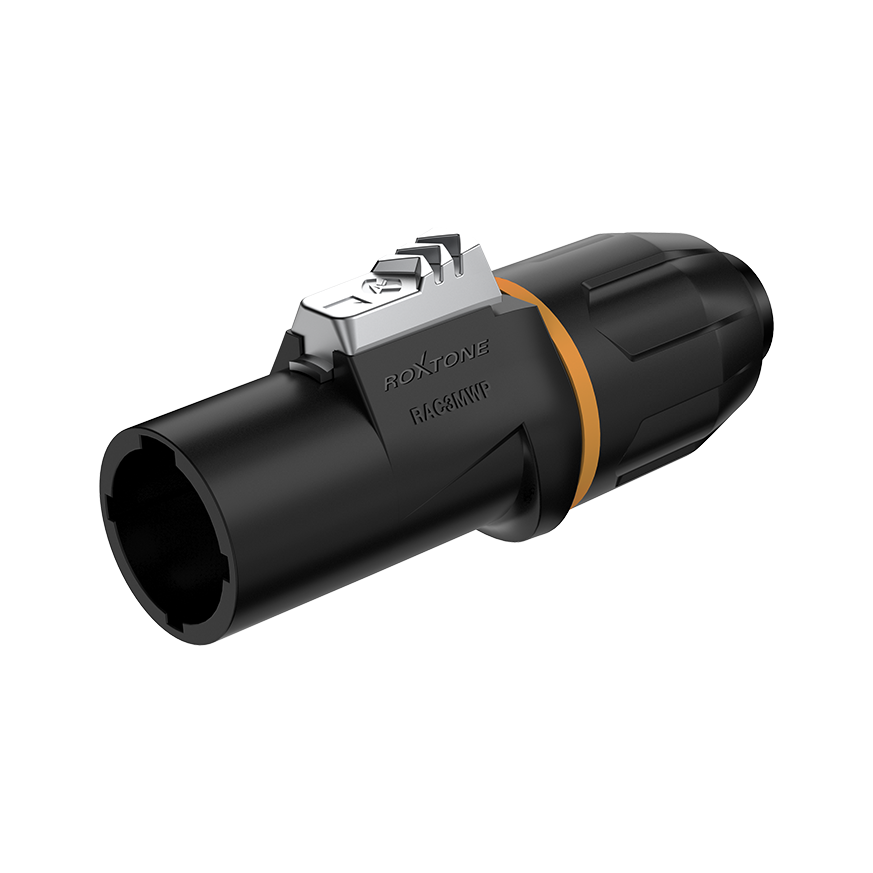

- Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen, lighting and other equipments
- Thicker silver plated brass and beryllium bronze contacts supply excellent contact and conduction properties
- Dust and water resistant according to IP65 in mated condition
- Fast and easy twist lock system
- Flame retardant materials create safer use
- Glass fiber composite material, extremely robust and reliable
- ROXTONE brand engraved on the housing
- Patent-protected
Included 2pcs sealing rings
- Used for cable diameter 7.0mm~9.0mm
- Used for cable diameter 9.0mm~12.0mm
Cable extension
Technical Data
| Housing | PA66 30%GF |
| Insert | PA66 30%GF |
| Latch | Zinc Alloy diecast |
| Unitary contacts | Brass |
| Contacts plating | Silver |
| Strain relief | POM |
| Sealing bushing | Silicone |
| Color ring | PA6 |
| Number of contacts | 3 |
| Rated current per contact | 20 A rms |
| Rate voltage | 250 V ac |
| Cable O.D. range | 7-12 mm |
| Protection class(mated) | IP65 |
| Fammability | UL V-0 |
