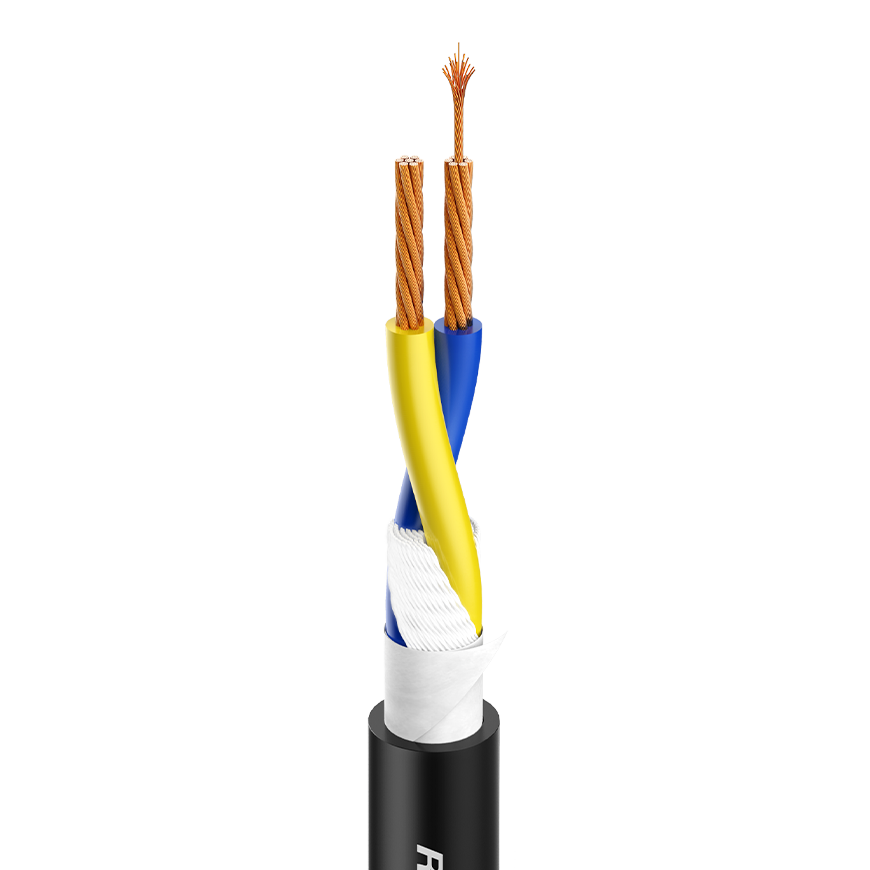

Features
- The special double strands technology with very thin OFC wires ensure the cable to be super highly flexible
- Soft PVC jacket and inner conductors twisted grant a perfect winding
Technical Data
| Jacket, diameter | PVC 9.5 mm |
| AWG | 14 |
| No. of inner conductors | 2 x 2.5 mm² |
| Copper strand per conductor | 318 x 0.10 mm |
| Cond. insulation, diameter | PVC 3.4 mm |
| Temperature range | Min. -20 °C |
| Temperature range | Max. +70 °C |
| Packaging | 100/300 m roll |
Electrical Data
| Capac. cond./cond. per 1 m | 109 pF |
| Cond. resistance per 1 m | 6.6 mΩ |
| اللون | Black |
| Length | 100m |
