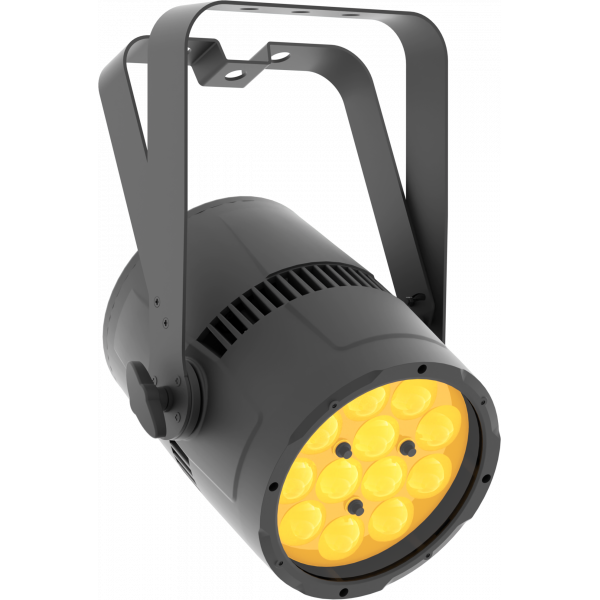

VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.
VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.
Features:12x10W RGBW/FC LED
Wide zoom range from 10° - 60° (1:6 zoom)
HD dimming with selectable PWM
Silent operation for studio application
LIGHT SOURCE
- Source:12x10WRGBW LEDs
- Luminous flux:(10°) 1'450 lm - (60°) 1'786
- Lux:(10°) 3'144 lx - (60°) 249lx@5 m full
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:10° - 60°motorised linear zoom
- Lens type:plano-convex lens path
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:5 / 7 / 10ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:XLR 3p + 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):120W
- Output (at 230V):15units on a single power line
- Power factor:> 0,94
PHYSICAL
- IP rating:IP30
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +40 °C (+14 to +104 °F)
- Dimensions (WxHxD):262x350x261mm
- Weight:5,5kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
