Product Description

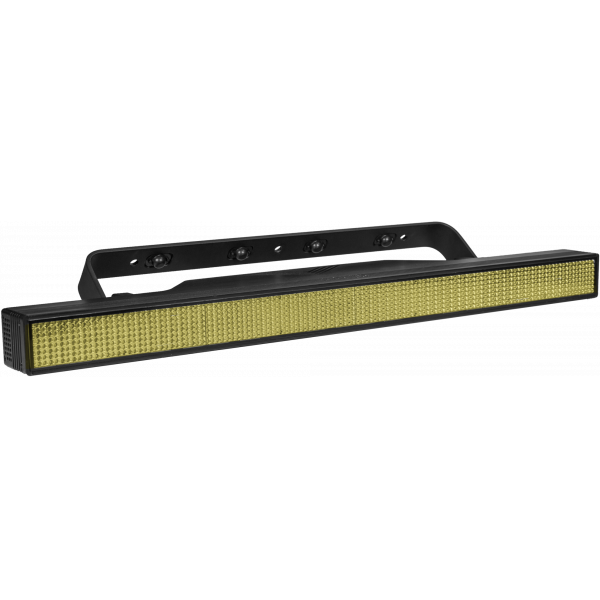

SunBar 2500Max is an exceptionally powerful LED graphic strobe batten also featuring as a static blinder and flood. SunBar 2500Max offers flexible control of the beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.
Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
SunBar 2500Max is an exceptionally powerful LED graphic strobe batten also featuring as a static blinder and flood. SunBar 2500Max offers flexible control of the beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.
Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
Features:Staggering 160'000 lumen output (strobe) with 120° beam angle
Art-Net, Kling-Net and DMX control
Graphic effects from 64 individually controllable groups of 7.000 K White LEDs
- Source:1.024x1,3Whigh-power white LED
- Source CCT:CW: 7.000K
- Luminous flux:strobe without lens (peak) 160'000 lm - static ON without lens 45'000 - strobe with lens (peak) 112'000 - static ON with lens 40'000
- Lux:(120°) 2'093 lx - (40°) 5'640lx@3 m
- CRI:87
- Source life expectancy:> 30.000 h
- Beam angle:without lens 120°, with lens 40°
- Field angle:without lens 150°, with lens 80°
- Additional optics:mountable 40° lens reflector plate (included)
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background index, speed, direction
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Special features:multi-layer pixel FX control
- Rotating gobos:dynamic patterns with speed and rotation control
- Supported Protocols:DMX512, RDM, Art-Net, Kling-Net
- DMX channels:from 1 to 71ch
- Pixel control:1 / 2 / 4 / 8 / 16 / 64individually select and control sections
- RDM:for remote addressing and parameter configuration
- Display:black TFT touch display
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Data connection:Art-NetRJ45 IN/OUT
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):full static: 596 W - strobing: 1'060W
- Output (at 230V):3units on a single power line
- Max power consumption (120V):full static: 621 W - strobing: 1'166W
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):1000x75x231mm
- Weight:9,5kg
- Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, UKCA, RCM
