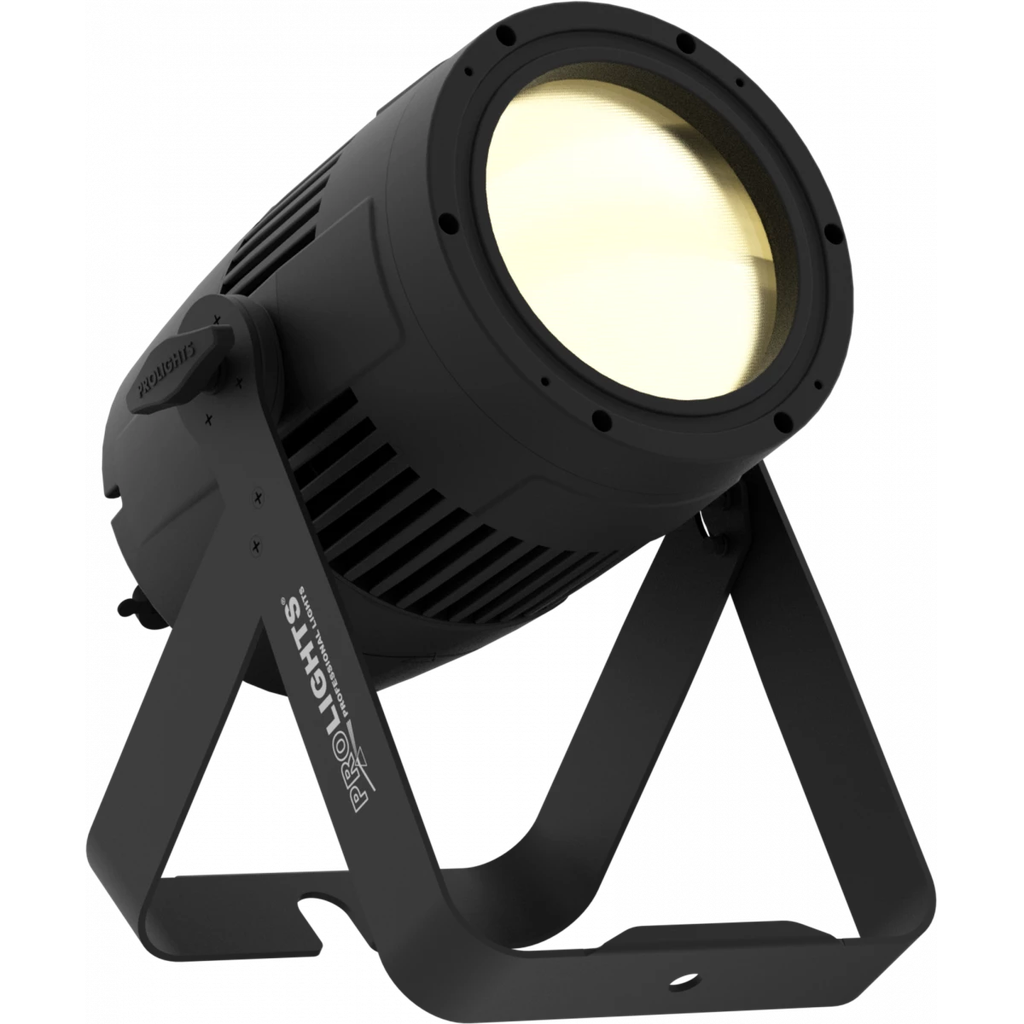

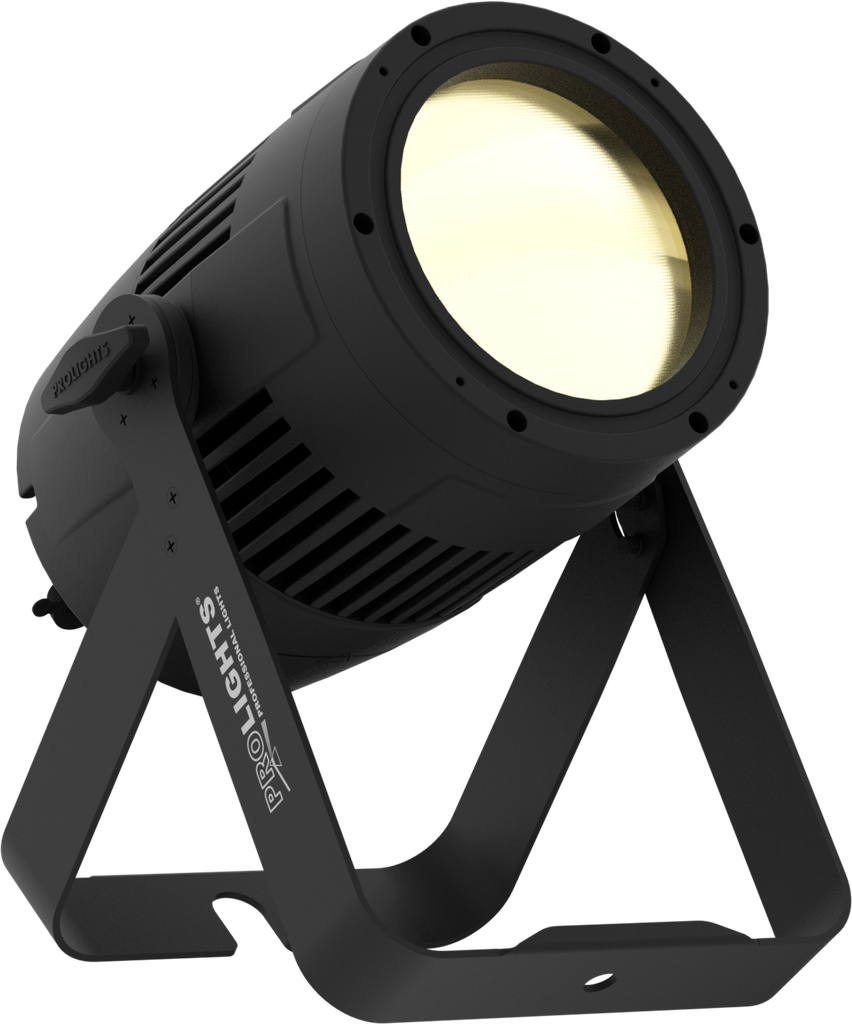

StudioCob PlusNW is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.
StudioCob PlusNW is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.
Features:IP65 rated connectors for easy use both indoor and outdoor
150W 4.000K Warm White COB LED source with HD dimming and high CRI
Flexible lens options of 18° - 38° - 60°
LIGHT SOURCE
- Source:150WWhite LED
- Source CCT:4.000K
- Luminous flux:(18°) 9'910
- Lux:(18°) 7'000lx@3 m
- CRI:> 80
- Source life expectancy:> 30.000 h
OPTICS
- Beam angle:(on-board) 18° - (inc) 38° - (opt) 60°
- Field angle:(on-board) 36° - (inc) 63°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:flood (without lens) - 38° (inc)
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 5ch
- RDM:for remote addressing and parameter configuration
- Display:black OLED touch display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)

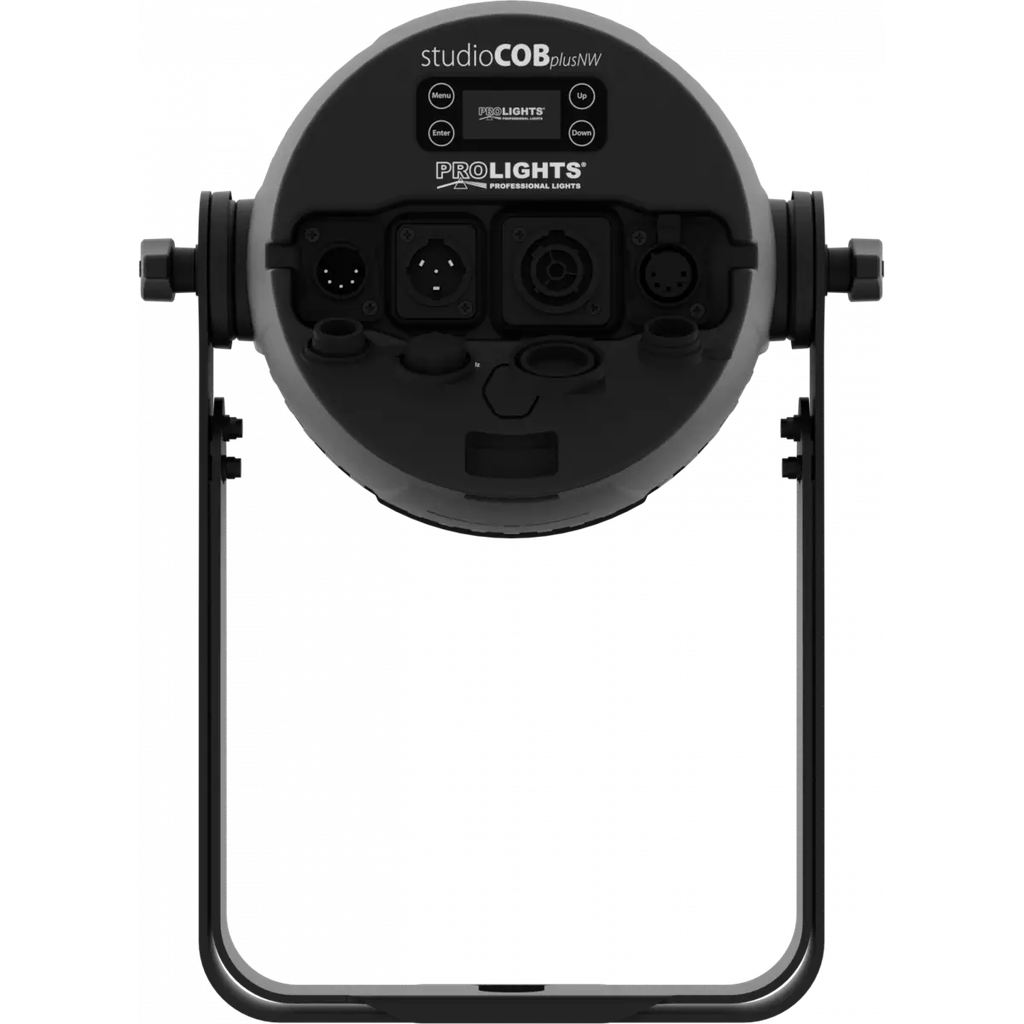

CONNECTIONS
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):154W
- Output (at 230V):25units on a single power line
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black or white finishing
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):259x187x370mm
- Weight:4,95kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM, cTUVus, FCC
