STUDIOCOBCWBK
Share this product

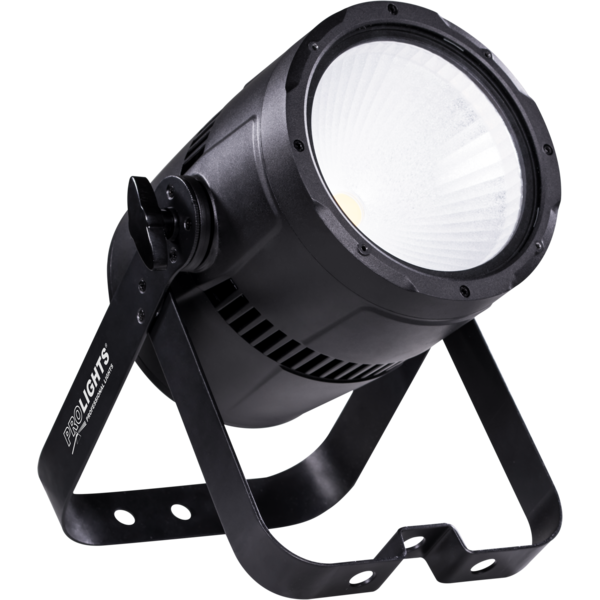

Prolights STUDIOCOBCWBK

1x100W CW COB LED projector, 60°, HDL-dimming, IP20, 121W, 4,5Kg, Black&White& White

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.

  • 100 W 5.000 K COB LED source with HD dimming and high CRI.
  • Flexible lens options of 15° - 30° - 60°.
  • Functional barn doors for beam control.

    • STUDIOCOBCW is a powerful and incredibly versatile LED PAR. Fusing the old and the new it pairs a 5.000 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenized output, single shadow and flexible lens options.

    Features:
    100 W 5.000 K COB LED source with HD dimming and high CRI.
    Flexible lens options of 15° - 30° - 60°.
    Functional barn doors for beam control.

    LIGHT SOURCE
    • Source:
      100
      W
      White COB LED
    • Source CCT:
      5.000
      K
    • Luminous flux:
      4'880
    • Lux:
      (60°) 599,7
      lx
      @3 m
    • Lux:
      (30°) 1936
      lx
      @3 m
    • CRI:
      > 91
    • Source life expectancy:
      > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      80
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      30° (opt) - 15° (opt)
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      1 / 2 / 5
      ch
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      flash(s), mechanical
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      121
      W
    • Output (at 230V):
      12
      units on a single power line
    • Max power consumption (120V):
      120
      W
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black or mirror
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      262x190x371
      mm
    • Weight:
      4,5
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
