Product Description

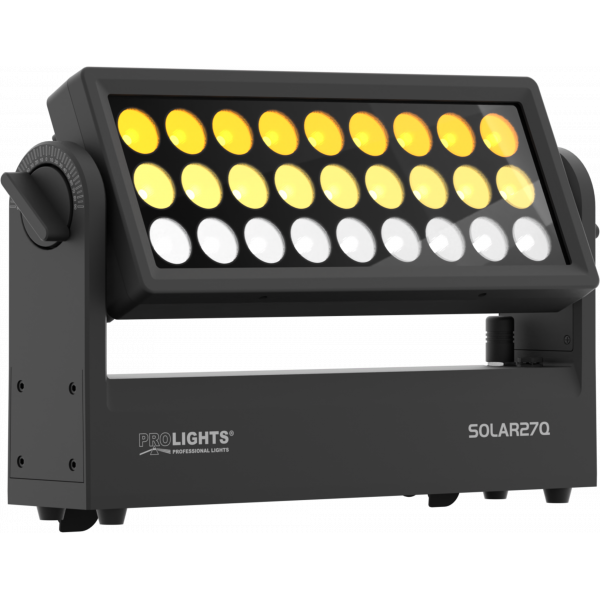

Solar 27Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 10'832 lumens. Equipped with 27x10W RGBW/FC LEDs, delivering superior colour mixing. Featuring a slim size as well as the multiple interchangeable optics through magnets, including asymmetrical filters which, all together, make the Solar 27Q an incredibly flexible device for indoor use and outdoor. Whilst highly-powerful, the Solar 27Q also benefits from being silent.
Solar 27Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 10'832 lumens. Equipped with 27x10W RGBW/FC LEDs, delivering superior colour mixing. Featuring a slim size as well as the multiple interchangeable optics through magnets, including asymmetrical filters which, all together, make the Solar 27Q an incredibly flexible device for indoor use and outdoor. Whilst highly-powerful, the Solar 27Q also benefits from being silent.
Features:27x10W RGBW/FC LEDs, delivering 10'832 lumens
Compact form factor and fan-free
Wireless DMX on-board
- Source:27x10WRGBW LEDs
- Luminous flux:@FULL 10'832 lm - with included filter 6'987
- Lux:@FULL (25°) 6'340 lx - with included filter 1'027lx@3 m full
- Lux:@FULL (25°) 2.282 lx - with included filter 370lx@5 m full
- CRI:71,8
- Source life expectancy:> 50.000 h
- Beam angle:25°
- Additional optics:10° / 15° / 45° / 40° filter /60° filter/ 10x60° filter / 30x60° filter
- Other:magnetic 40° filter included , barn door not included
- Colour mixing:RGBW / FC
- CCT:CCT control through dedicated DMX channel
- Colour wheel:virtual colour wheel with macros
- FX generator:section effect with 3 horizontal individually select and control sections
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM, W-DMX
- DMX channels:5 / 7 / 10 / 13 / 17ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Tilt:0 - 150°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:selectable dimming modes available
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:W-DMX receiver
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):268W
- Output (at 230V):9units on a single power line
- Max power consumption (120V):275W
- Output (at 120V):5units on a single power line
- Power factor:> 0,94
- IP rating:IP65 for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +50 °C (-4 to +122 °F)
- Dimensions (WxHxD):454x269x83mm
- Weight:9kg
- Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
- Hardware on-board:magnetic filter frame with 40° filter
- Compliance:CE, UKCA, RCM
