SMARTBATWASH

Kit of 4 x SMARTBATWASH, include barndoors and 25° filters

QUOTE ONLY
0.00 AED 0.00 AED

SKU: SMARTBATWASH
CATEGORY: Battery-Operated
BRAND: Prolights
DELIVERY For orders above AED 1,000
SECURE PAYMENT Safe encrypted checkup
EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONTACT US

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

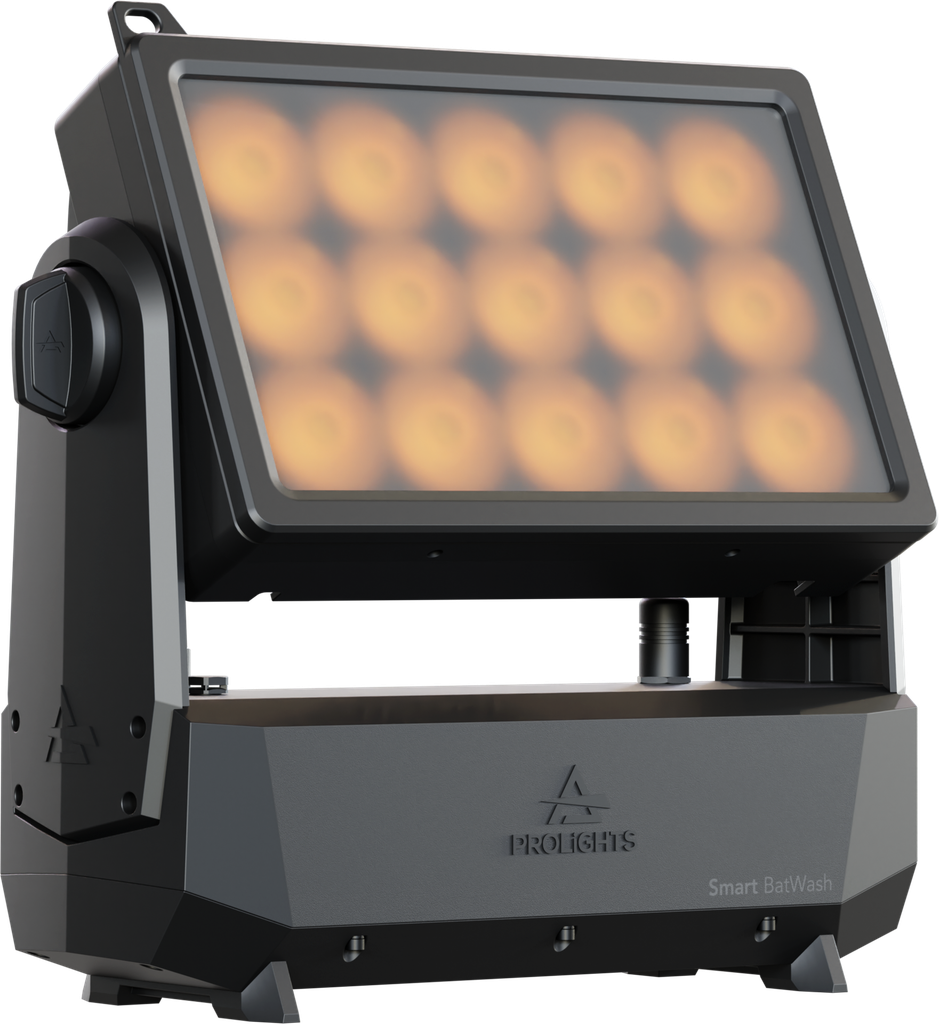

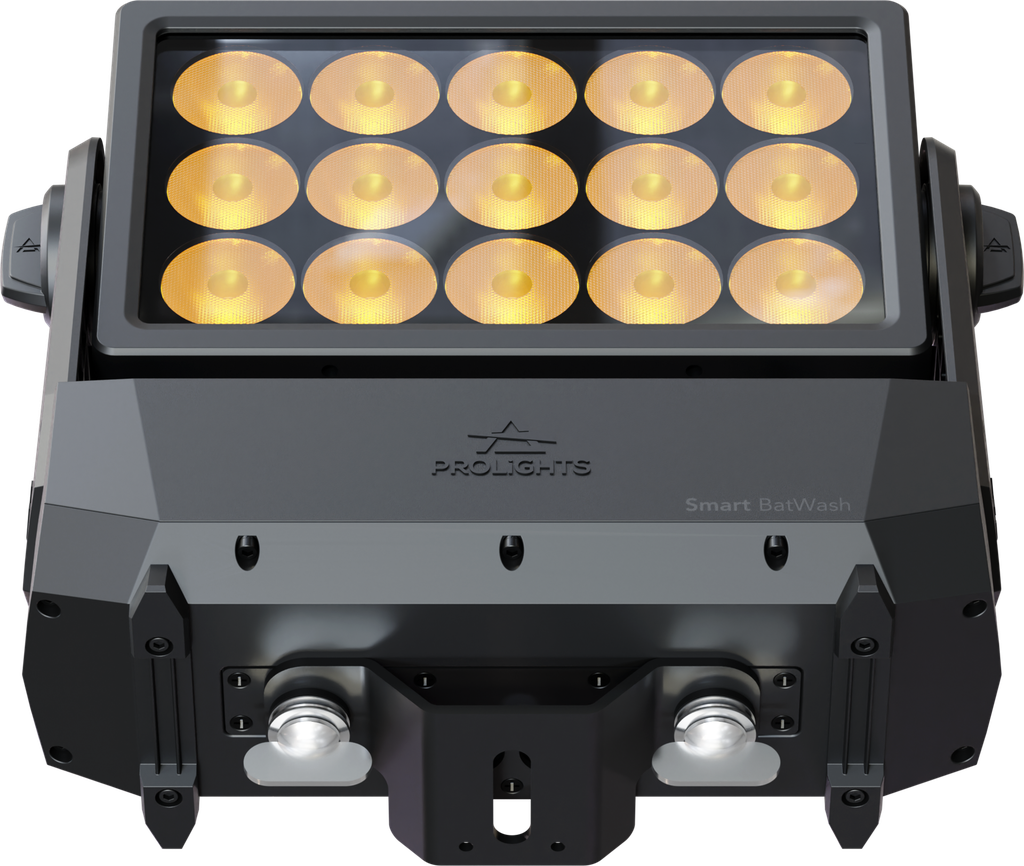

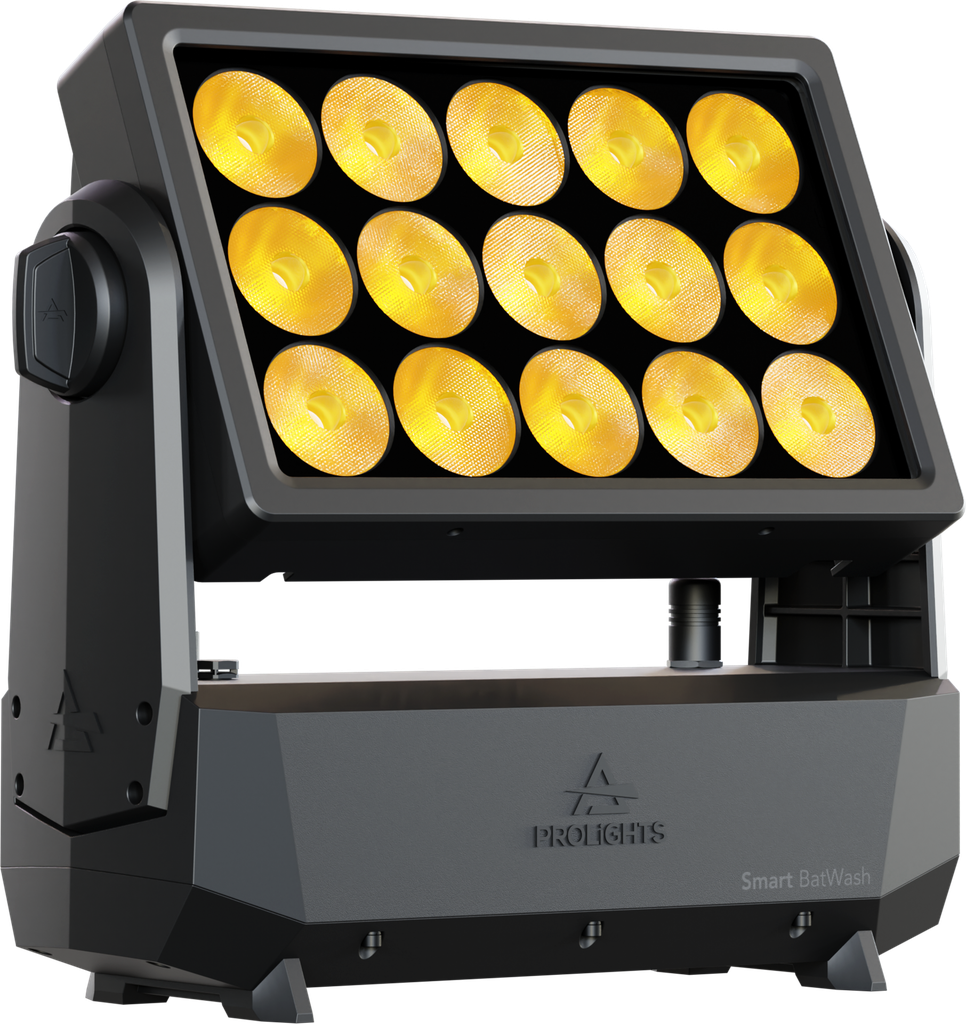

The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.

This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.

The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.

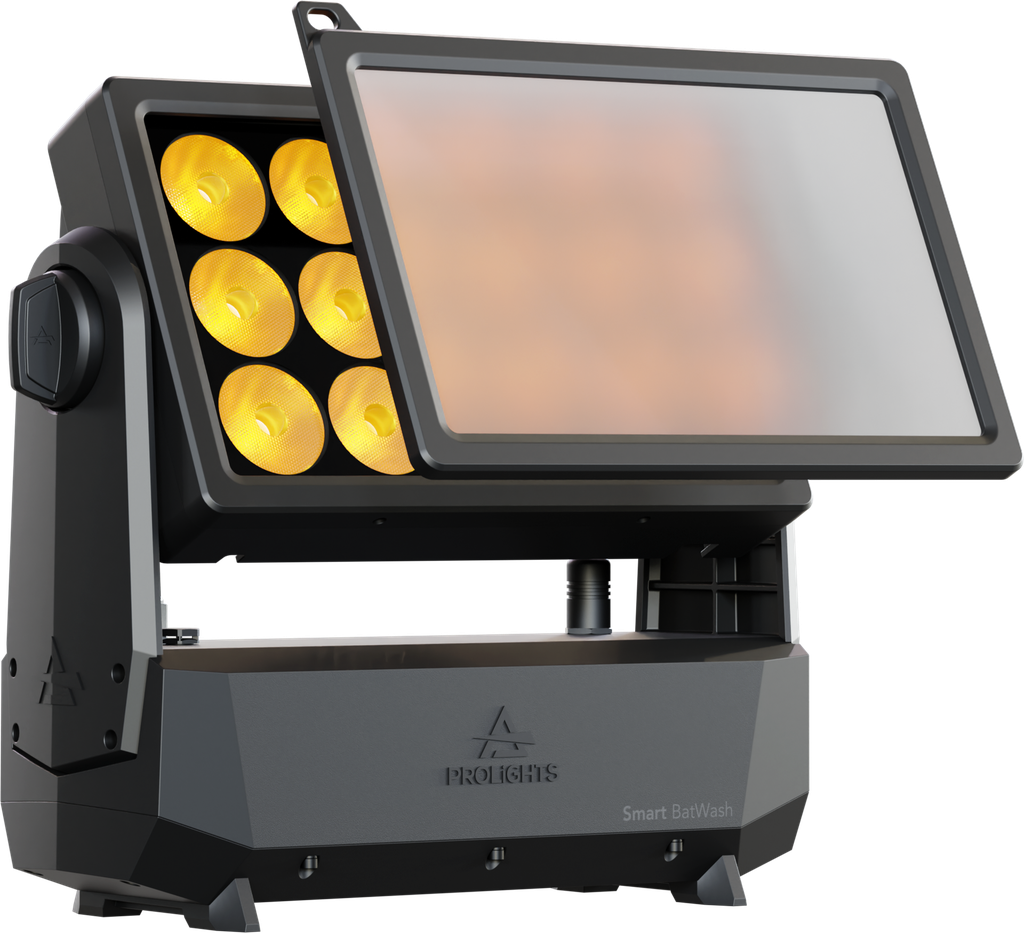

The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.



 The pack includes:

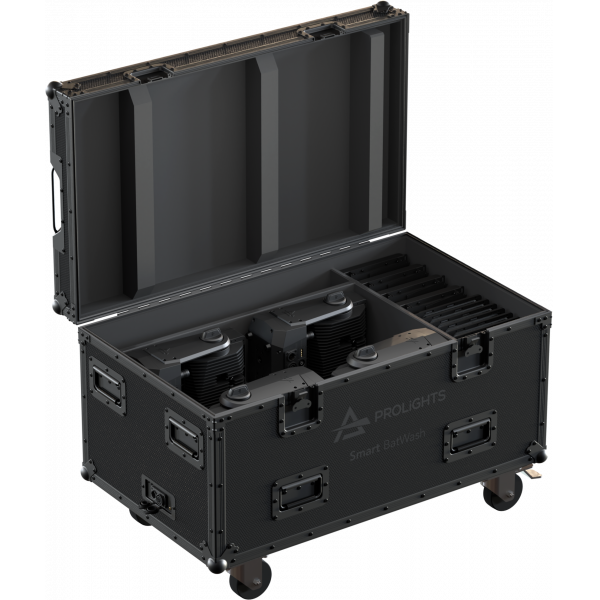

1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
4 x SMARTBATWASH with 25° magnetics filter on-board
4 x barndoors (SBWBD)
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
4 x omega clamp (OS25)
1 x User Manual



  • High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle
  • The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.

    This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.

    The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.

    The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.



     The pack includes:
    1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
    4 x SMARTBATWASH with 25° magnetics filter on-board
    4 x barndoors (SBWBD)
    1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
    4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
    4 x omega clamp (OS25)
    1 x User Manual



    Features:
    High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
    15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
    Range of holographic filters that modify the shape of the beam angle

    LIGHT SOURCE
    • Source:
      15x20
      W
      RGB + Warm White LED
    • Luminous flux:
      6'300 lm @full
    • Lux:
      4'451
      lx
      @5 m full
    • CRI:
      > 95 @3200K ; > 93 @5600K
    • R9:
      > 98 @3200K ; > 93 @5600K
    • TLCI:
      > 84 @5600K
    • TM30 Rf:
      94.2 @3200K ; > 92 @5600K
    • TM30 Rg:
      104.4 @3200K ; > 105 @5600K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      10
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBWW
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2'800K - 10'000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX + WDMX
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • IR:
      infrared sensor controlled by remote
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life:
      up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
    • Recharge connection:
      Directly from the mains power or magnetic fast-charge in case
    • Recharge time:
      5
      h (max)
    • Battery level indicator:
      shown on display
    • Other:
      Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase

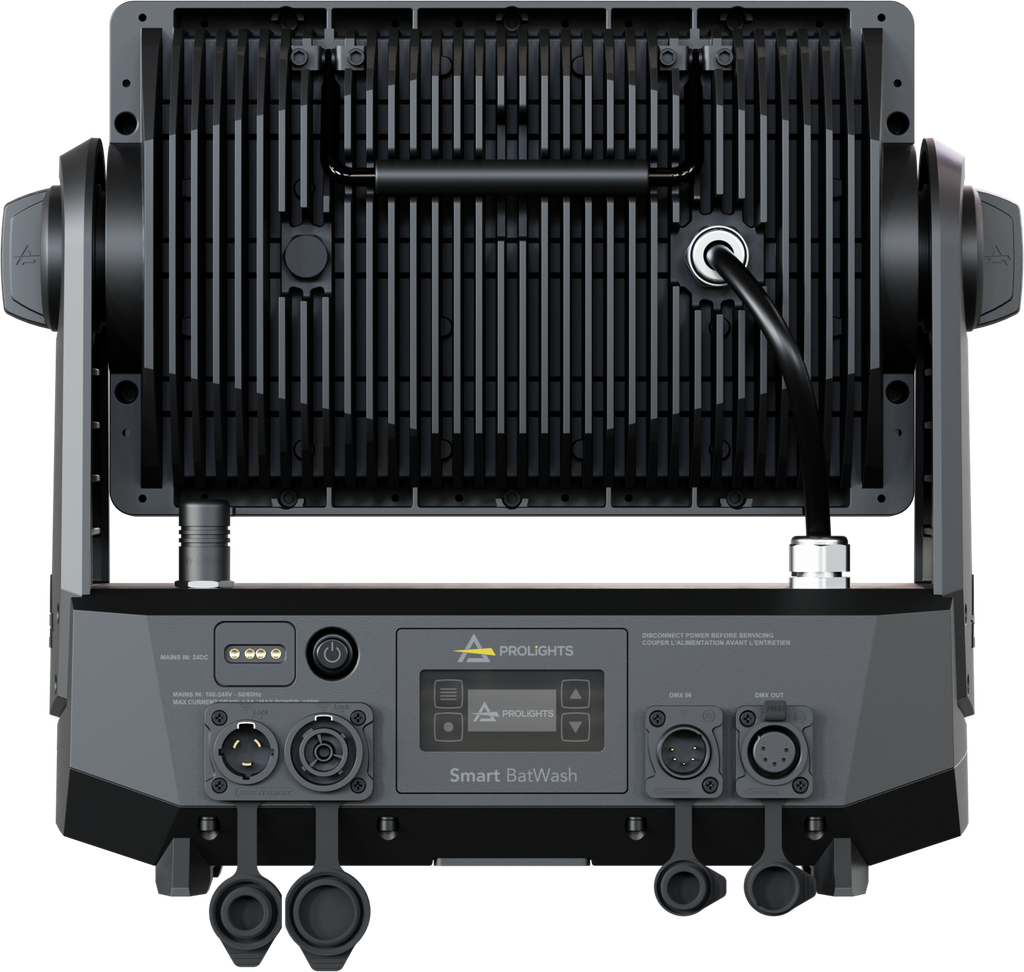

    CONNECTIONS
    • Power connection:

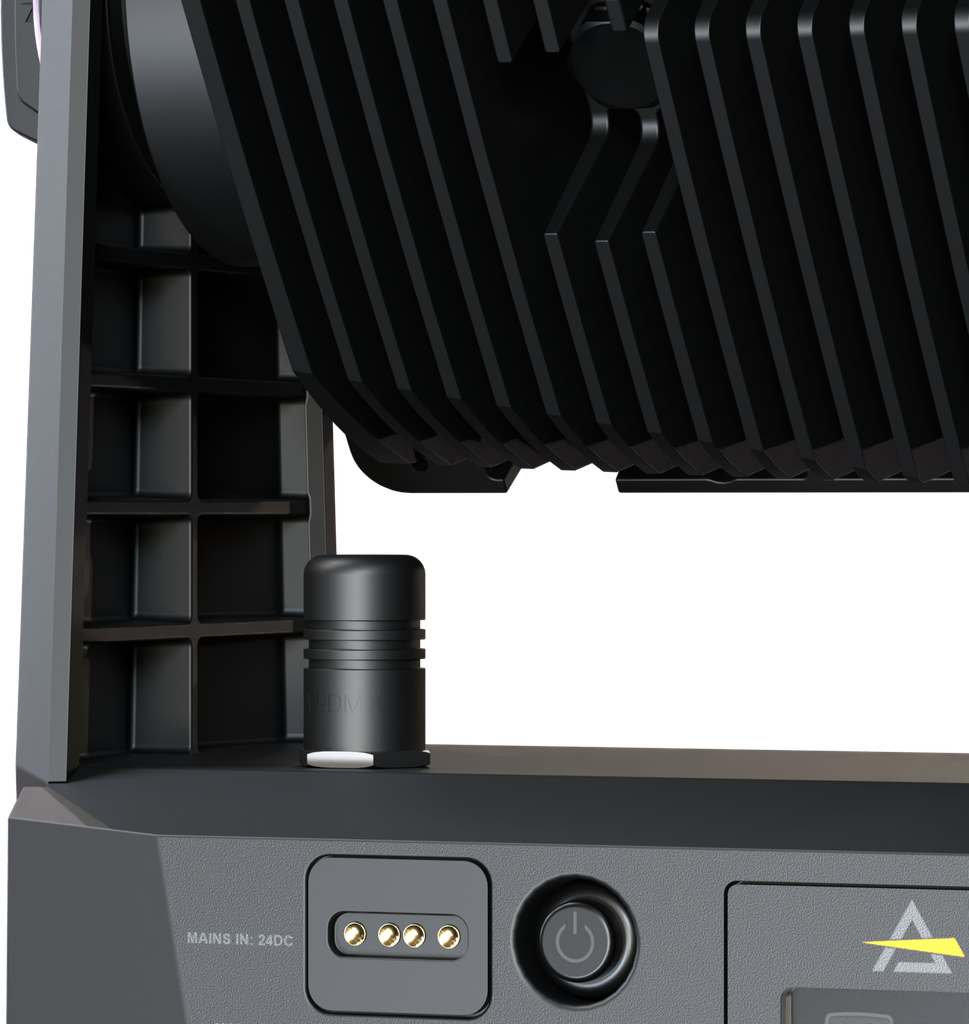

      magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      180
      W
    • Output (at 230V):
      (Data for SMARTBATWASHPACK) 2
      units on a single power line
    • Output (at 120V):
      (Data for SMARTBATWASHPACK) 1
      units on a single power line
    • Power factor:
      >0,94
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:

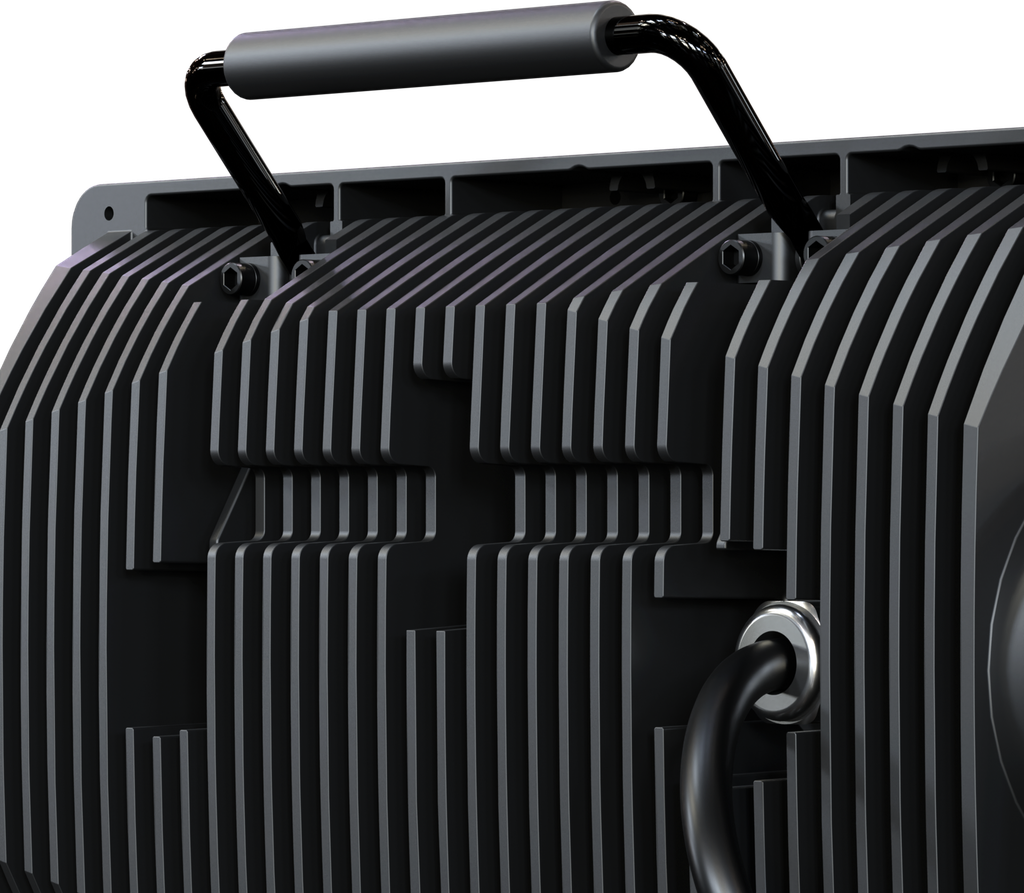

      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      381x344x143
      mm
    • Weight:
      9,8
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC
