SMARTBATPLUS is the more-advanced member of the successfull SMARTBAT range offering more advanced features such as WDMX wirelss card, waterproof housing, increased brightness, high definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with mirror finishing useful when hiding fixtures from view.
The pack includes:

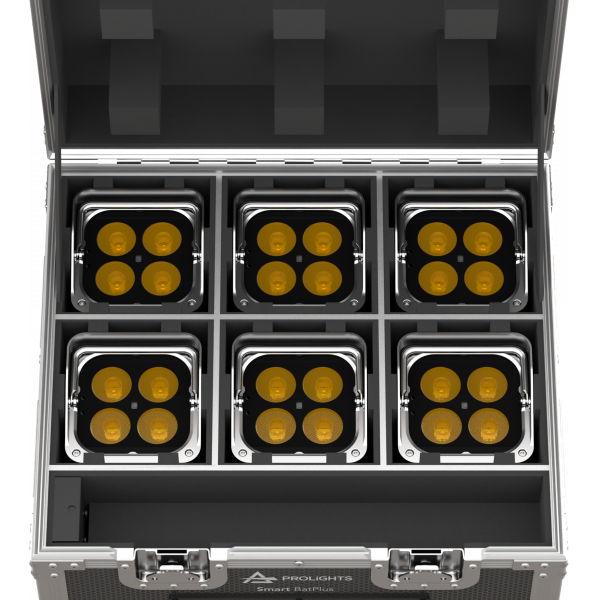

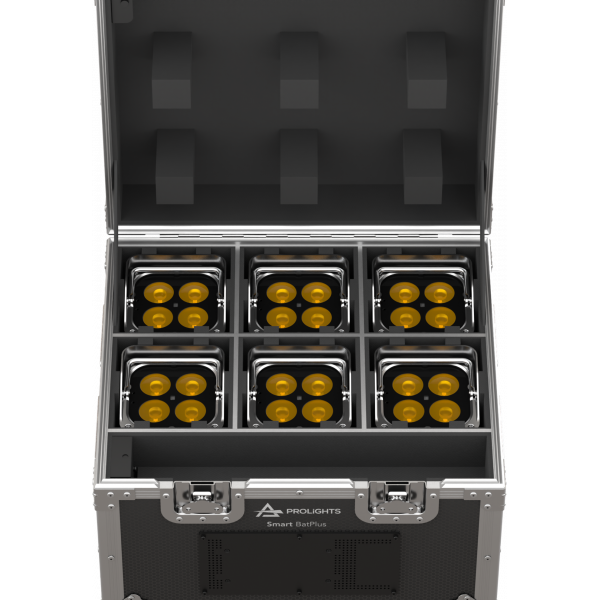

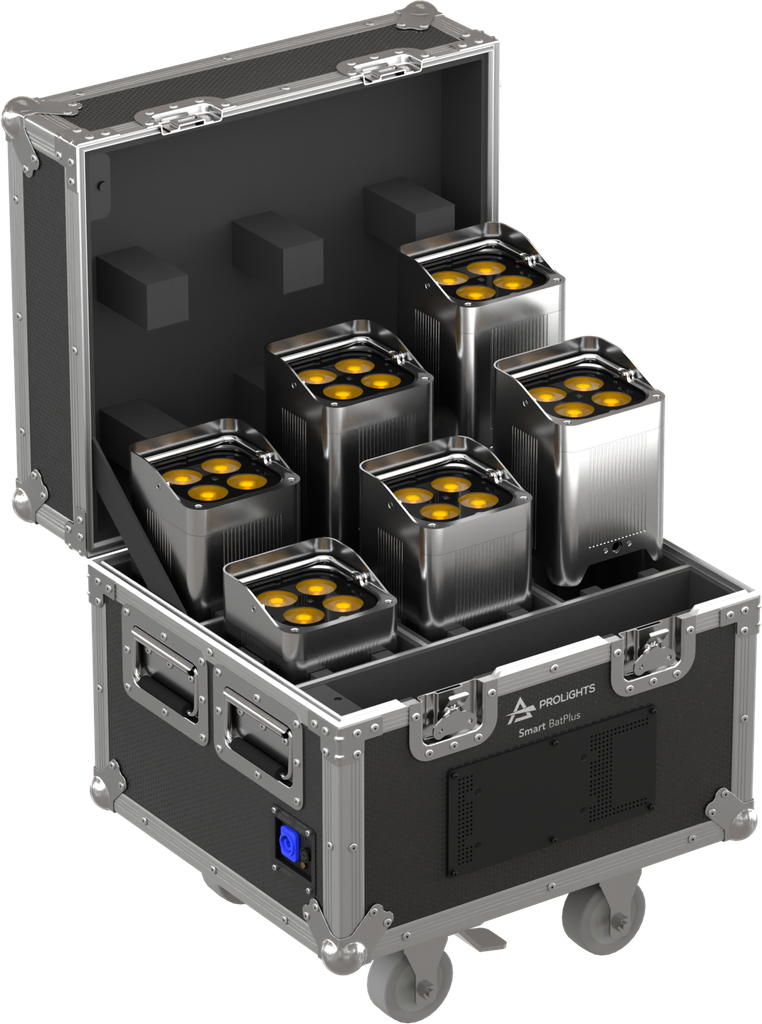

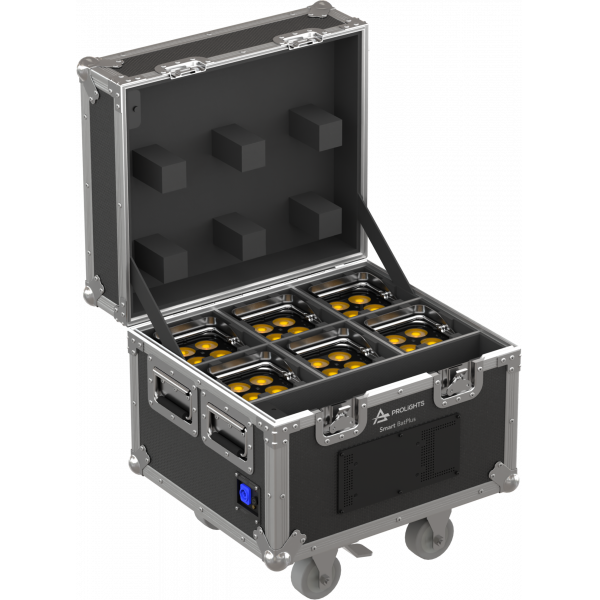

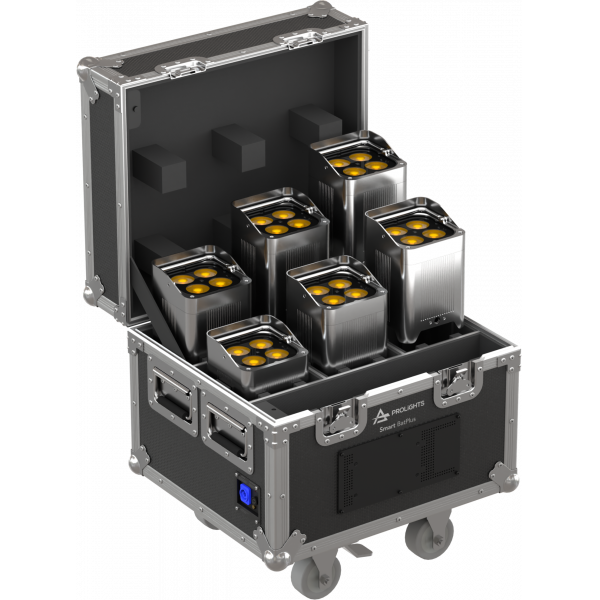

- 6 pcs SMARTBATPLUS

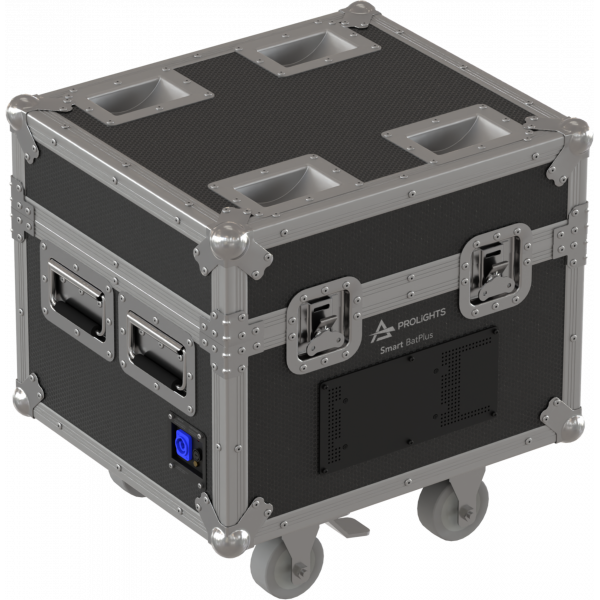

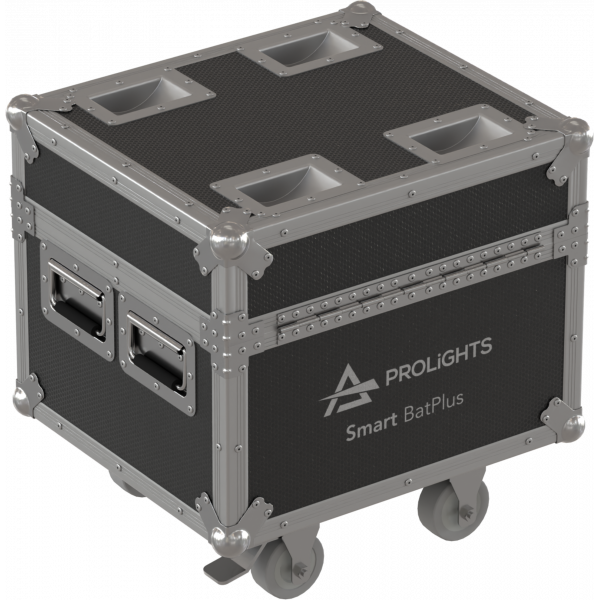

- 1 FLIGHT CASE with integrated battery charger kit
- 1 IR controller
- 1 PowerCON power cable
- Pack weight: 47 kg
SMARTBATPLUS is the more-advanced member of the successfull SMARTBAT range offering more advanced features such as WDMX wirelss card, waterproof housing, increased brightness, high definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with mirror finishing useful when hiding fixtures from view.
The pack includes:
- 6 pcs SMARTBATPLUS
- 1 FLIGHT CASE with integrated battery charger kit
- 1 IR controller
- 1 PowerCON power cable
- Pack weight: 47 kg
4x12W RGBW/FullColor high-power LED delivers 905lm
Long lasting battery capacity: 12h colour changing / 8h FULL
Mirror finish to hide the luminaire to audience
Protection: IP65/IP54, for temporary outdoor use
Built-in antenna transceiver (2,4 Ghz) by Wireless Solution Sweden
Fast charge magnetic connector
Adjustable foot support for tilt regulation (up to 20°)
LIGHT SOURCE
- Source:4x12WRGBW LEDs
- Luminous flux:905
- Lux:759lx@5 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:11°
- Field angle:19°
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- White presets:3.200 K -9.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:W-DMX
- DMX channels:4 / 6 / 10ch
- Display:black OLED touch display
- IR:infrared sensor controlled by remote
MOVEMENT
- Tilt:(up to) 20°with adjustable foot support
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
- Battery:16,8Vlithium
- Battery life in colour change mode up to:12h
- Battery life in full-mode up to:8h
- Recharge connection:magnetic fast-charge in case
- Recharge time:4h (max)
- Battery level indicator:shown on display
CONNECTIONS
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:W-DMX receiver
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz (SBPLUSPOWER charger not included)
PHYSICAL
- IP rating:for temporary outdoor use -IP65 (front) - IP54 (bottom) for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:mirror finishing
- Operating temperature:Ta0 to +40 °C (+32 to +104 °F)
- Dimensions (WxHxD):138x202x145mm
- Weight:3,6kg
INSTALLATION
- Suspension and fixing:M12 threaded insert for easy clamp installation
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
