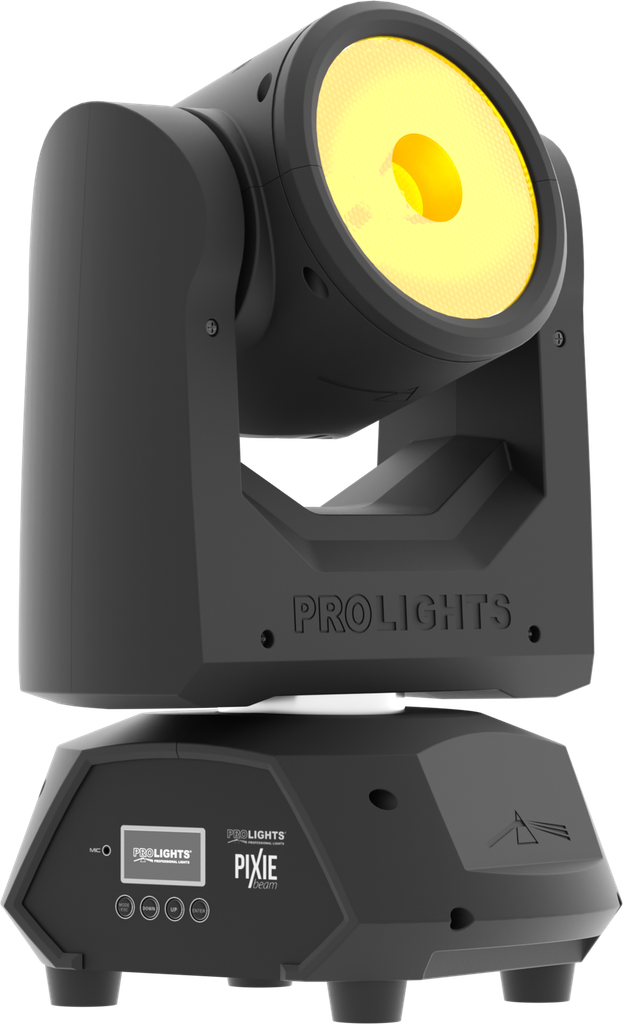

Prolights PIXIEBEAM

كشّاف حزمة ضوئية LED فائق السرعة، 1x60W RGBW/FC Osram Ostar، 4.5°، P/T لا نهائي، 82W، 4 kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: PIXIEBEAM

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

Single 60W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam

Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed

Infinite pan and tilt rotation for additional effects

Features:
Single 60W Osram Ostar RGBW LED with 100 mm lens delivers a bright, consistent 4,5° beam
Compact, lightweight and incredibly fast - the Pixie Beam moves with 'moving mirror' speed
Infinite pan and tilt rotation for additional effects

LIGHT SOURCE

Source:

60
W

RGBW Osram Ostar LEDs
Lux:

11'120
lx

@3 m full
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

4,5
°
Lens diameter:

100
mm

COLOUR SYSTEM

Colour mixing:

RGBW / FC
CCT:

CCT control through dedicated DMX channel
White presets:

2.000 K ~ 8.000
K
Colour wheel:

virtual colour wheel with macros

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

14 / 16 / 18
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Hibernation:

power safe mode when lost DMX
Master/Slave:

for synchronised operation of more units linked in a chain

MOVEMENT

Pan:

540° - 630
°

- 8/16-bit resolution with 360° endless rotation
Tilt:

360
°

- 8/16-bit resolution with 360° endless rotation
Position feedback:

automatic repositioning after external movement

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Strobe / shutter:

1 - 25

Hz, electronic
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included)

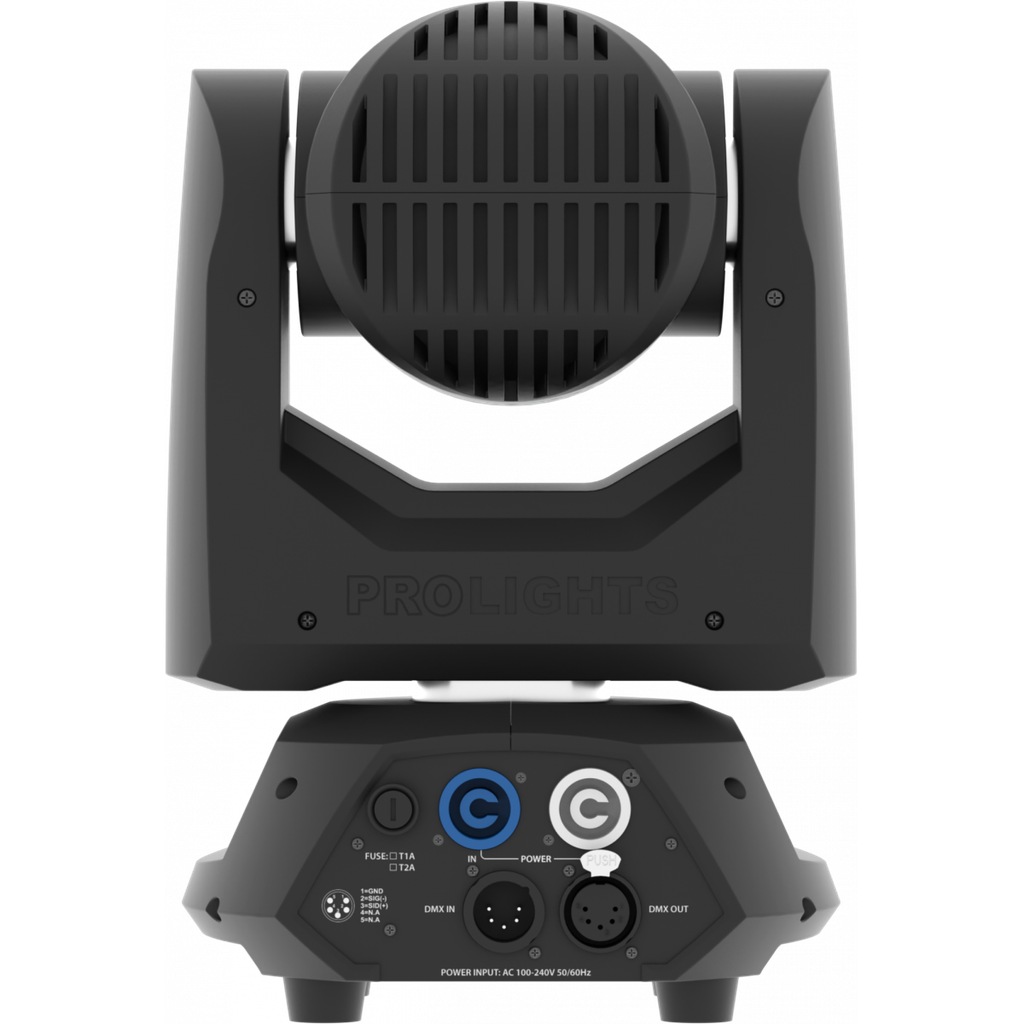

CONNECTIONS

Power connection:

Neutrik powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

100
W
Output (at 230V):

15

units on a single power line
Max power consumption (120V):

100
W

PHYSICAL

IP rating:

IP20
Cooling:

forced-air with low-noise fan
Housing:

Aluminium structure with high-resistance polycarbonate cover
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

208x300x144
mm
Weight:

4
kg

INSTALLATION

Suspension and fixing:

any position with quick-lock omega brackets

CERTIFICATIONS / REPORTS

Compliance:

CE, UKCA, RCM

Pixiebeam_A4_DATASHEET_(EN).pdf Data Sheet

Pixiebeam_USER_MANUAL_ITEN.pdf User / O&M Manual

Pixiebeam_General_Safety_Information_EN.pdf User / O&M Manual

PIXIEBEAM - Drawing (PDF).pdf Drawing (PDF)

PIXIEBEAM - Drawing (CAD).dwg Drawing (CAD)

PIXIEBEAM - DMX Chart.pdf DMX Chart
