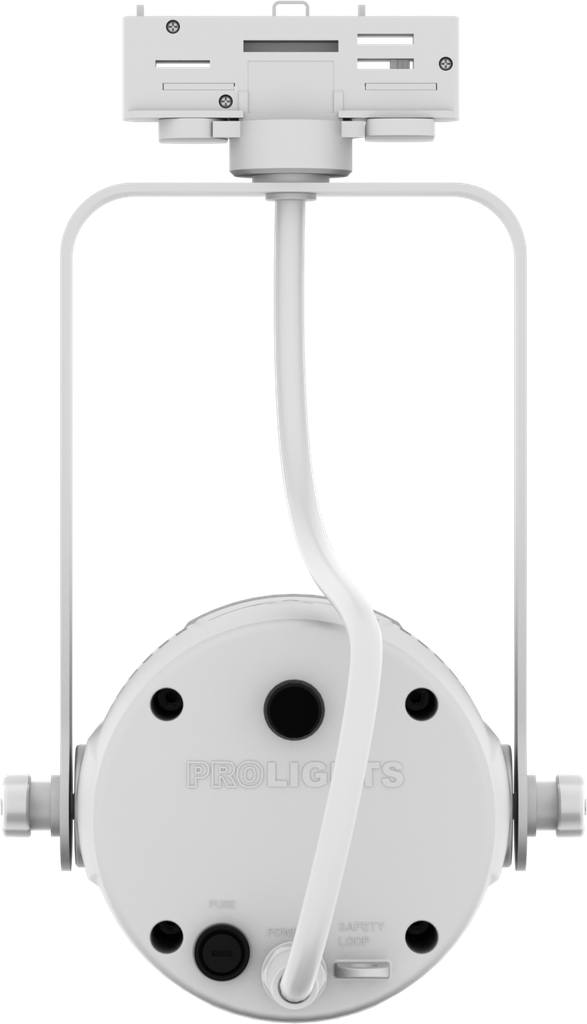

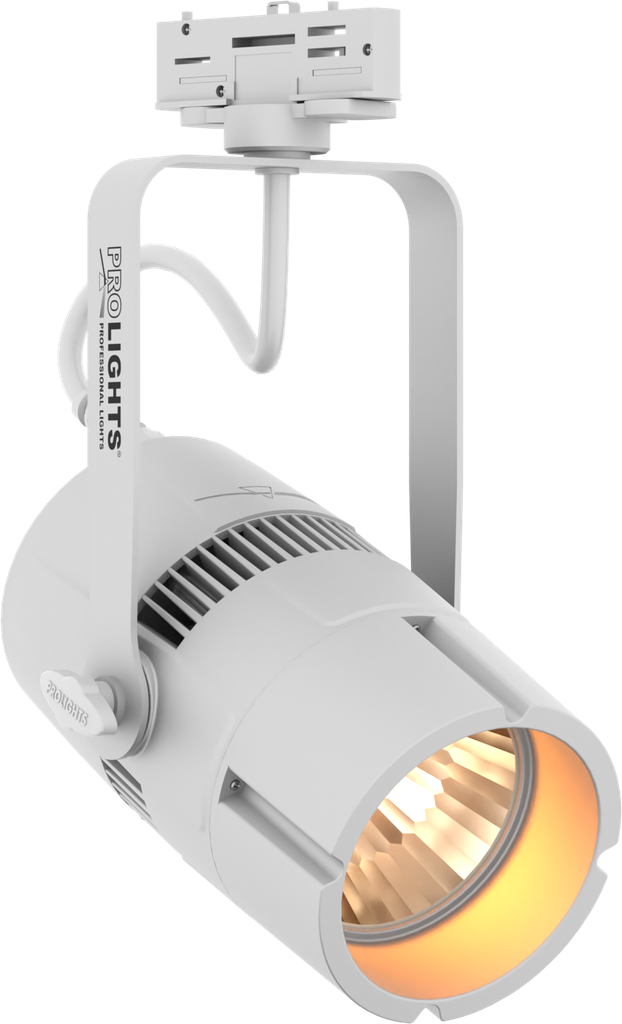

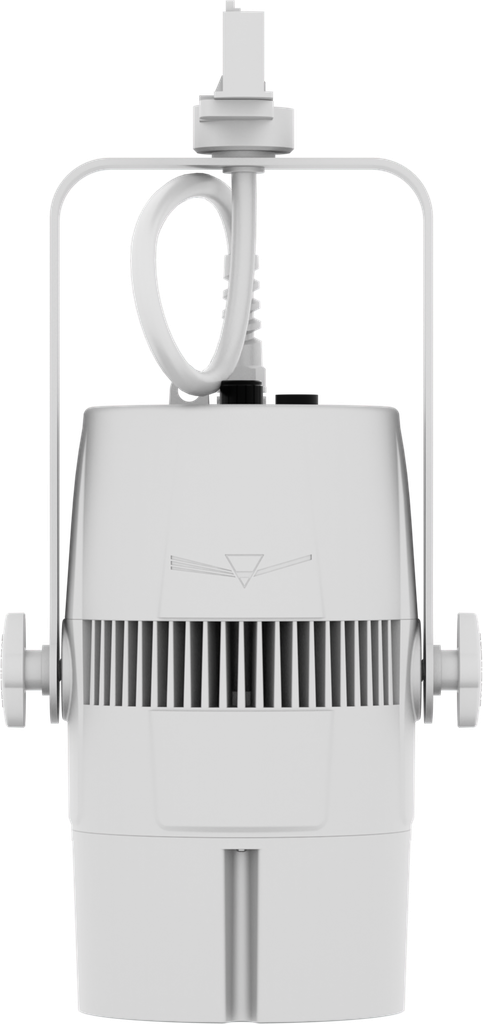

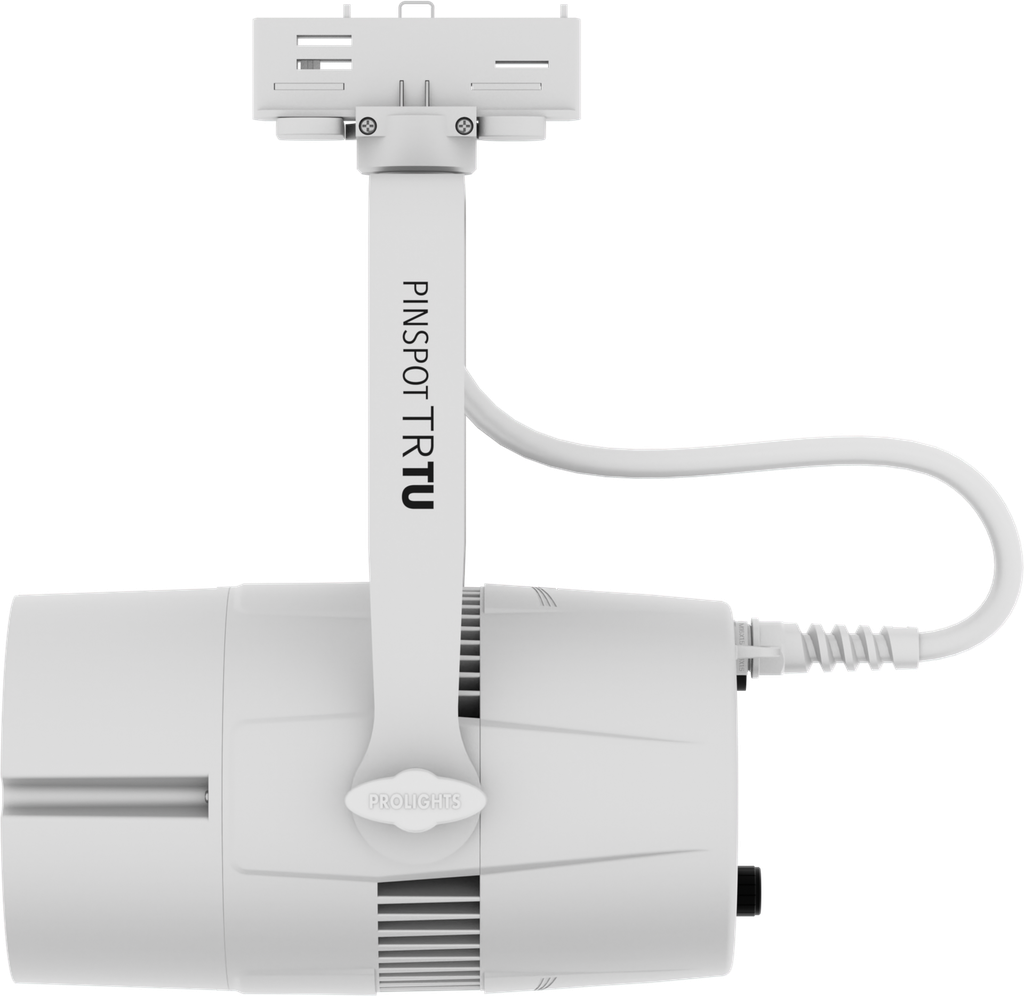

Pin SpotTR LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin SpotTR is able to be used in all the same applications.
Pin SpotTR LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin SpotTR is able to be used in all the same applications.
Features:High power LED source and parabolic reflector delivering a tight, bright beam
Available in both Tungsten and Daylight colour temperature versions
Remove heat, dimmers and lamp changes in one go
LIGHT SOURCE
- Source:13Whigh-power white LED
- Source CCT:Ksee available versions
- Luminous flux:(TU) 775 lm - (DY) 978
- Lux:(TU) 5'030 lux - (DY) 6'320lx@3 m
- CRI:(TU) 90 - (DY) 80
- Source life expectancy:> 30.000 h
OPTICS
- Beam angle:6°
- Field angle:12°
DYNAMIC EFFECTS
- Static mode:selection of static dimmer
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
ELECTRONICS
- Dimmer:linear 0 - 100%, manual knob dimmer
CONNECTIONS
- Power connection:track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):18,9W
- Max power consumption (120V):19,6W
PHYSICAL
- IP rating:IP30
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:white
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):209x167x238mm
- Weight:1,8kg
INSTALLATION
- Suspension and fixing:track-adapter included for suspension and fixing
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
