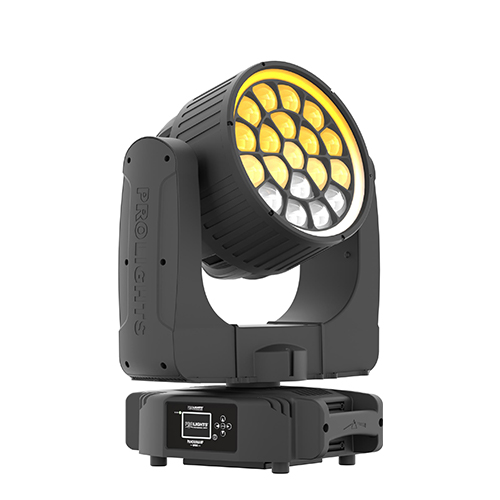

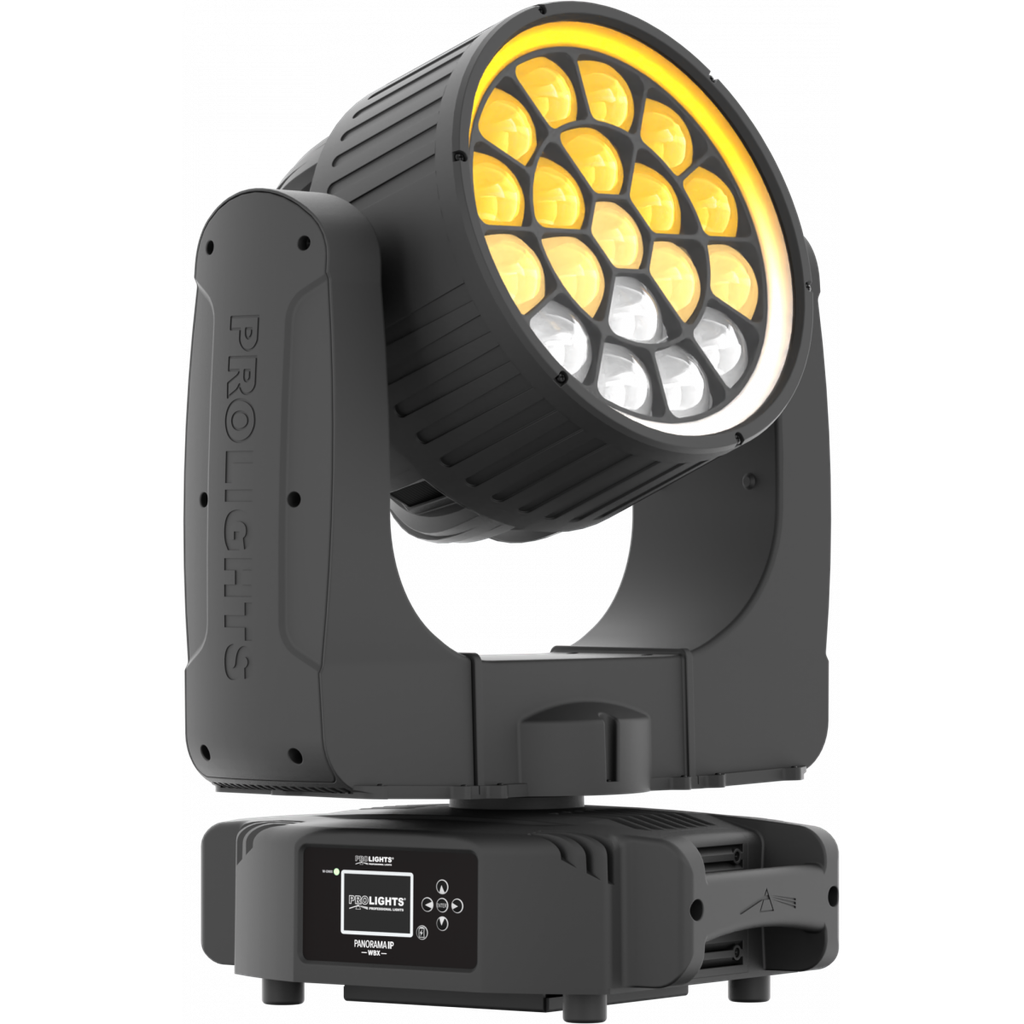

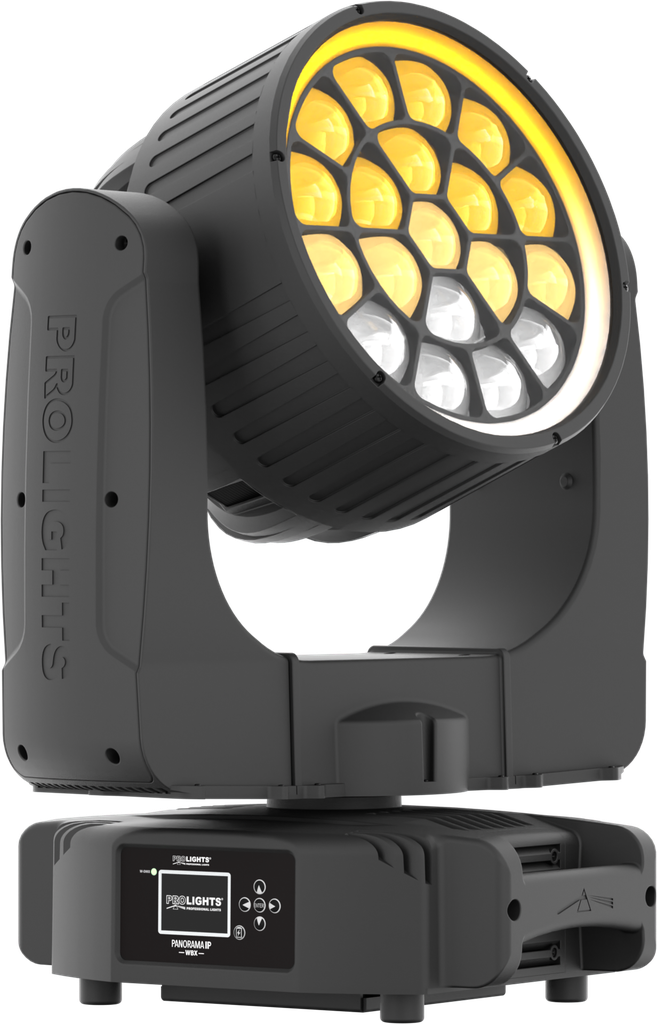

PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.
PanoramaIP WBX is a stunning IP65 high-output, LED wash light with pixel ring designed to bring the workhorse LED wash light to outdoor events. Featuring 19 of Osrams new 40 W RGBW Ostar LEDs, it delivers a massive output with a huge colour range and an extensive toolkit of effects.
Features:IP65 for temporary outdoor application, not for fixed installation.
19 LED RGBW / FC Osram 40W and outer RGB pixel ring.
Massive 4,5° to 36° linear zoom range from beam to wash.
Individual pixel control with on-board FX generator for both LEDs and pixel ring for fast and precise effects.
Heat-pipe cooling system for efficient cooling with virtually no noise.
LIGHT SOURCE
- Source:19x40WRGBW Osram Ostar LEDs
- Luminous flux:(4,5°) 4'452 lm - (36°) 5'803@Full
- Lux:(4,5°) 33'893 lx - (36°) 1'764lx@5 m full
- Other:outer RGB, pixel ring with frost film
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:4,5° - 36°motorised linear zoom
- Lens type:high-quality glass lens optics
- Additional optics:diffuser on outer pixel ring
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- CCT:CCT control through dedicated DMX channel
- White presets:2.000 K - 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Special features:outer RGB, pixel ring with several built in FX macros
CONTROL
- Supported Protocols:DMX512, RDM, Art-Net, W-DMX
- DMX channels:V1: 18 / 42 / 44 / 120 - V2: 18 / 42 / 44 / 120ch
- Pixel control:pixel2pixel control
- RDM:for remote addressing and parameter configuration

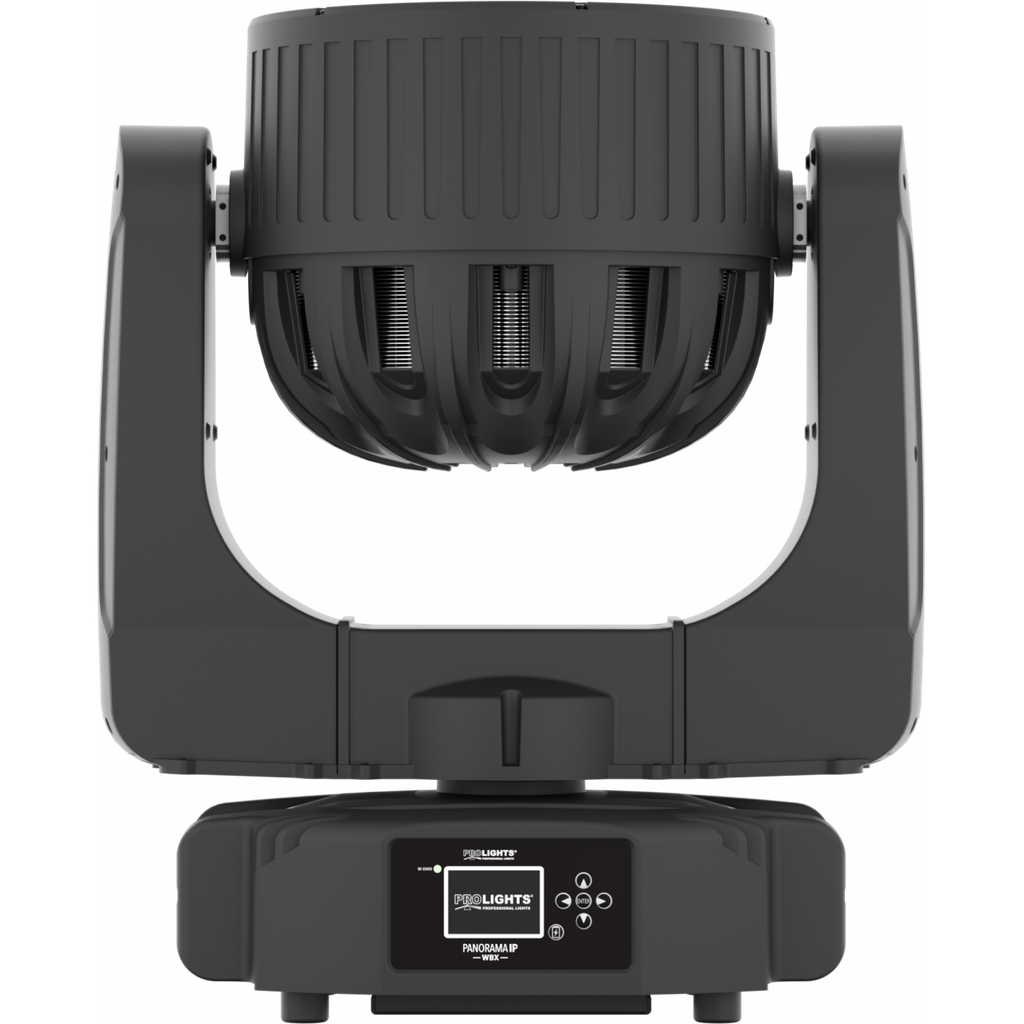

- Display:LCD high resolution colour display with autoflip
- Hibernation:power safe mode when lost DMX
- Master/Slave:for synchronised operation of more units linked in a chain
MOVEMENT
- Pan:540° - 630°- 16-bit resolution
- Tilt:267°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)

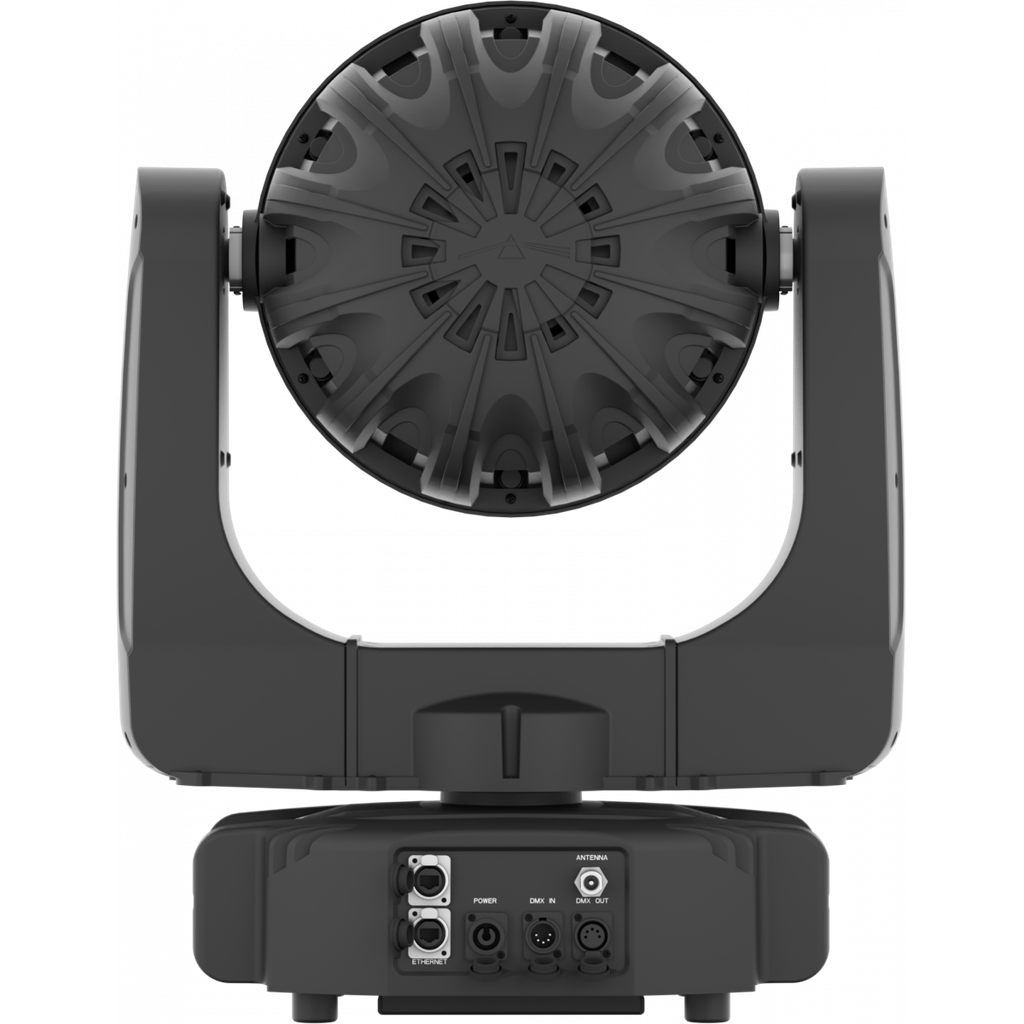

CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN connector
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated W-DMX receiver
- Data connection:Art-NetRJ45 IN/OUT
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):650W
- Output (at 230V):4units on a single power line
- Standby power:41W
- Power factor:> 0,95
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- Cooling:heat pipe with low-noise fan
- Housing:Weatherproof IP65 construction
- Finish:black
- Operating temperature:Ta-20 to +40 °C (-4 to +104 °F)
- Dimensions (WxHxD):531x676x326mm
- Weight:35kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
