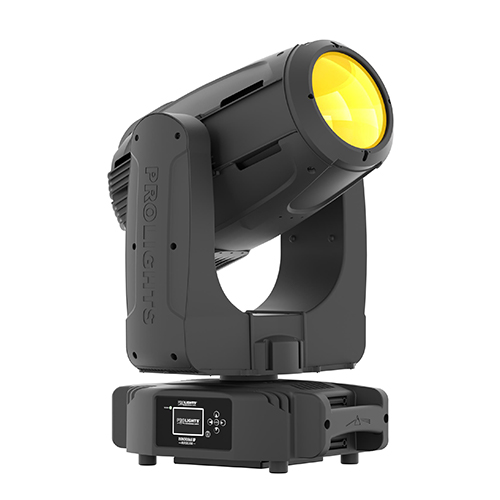

Prolights PANORAMAIPAB

كشّاف متحرك هجين IP65، Osram Sirius HRI 440W S HRI، CMY + 13 لونًا، 2°، 36 kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: PANORAMAIPAB

الفئة: أضواء متحركة خارجية , أضواء متحركة داخلية

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

PanoramaIP AirBeam is a stunning IP65 moving beam light which delivers an unbelievable bright, fat 2° beam ideal for an outdoor searchlight and big air look. Designed to make a statement, the PanoramaIP AirBeam can truly make an event stand out or fill a large outdoor space with spectacular beams.

IP65 rated for temporary outdoor application, not for fixed installation

Powerful 440W S Osram HTI lamp combined with 167 mm HD front lens for bright 2° beam

Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus

Features:
IP65 rated for temporary outdoor application, not for fixed installation
Powerful 440W S Osram HTI lamp combined with 167 mm HD front lens for bright 2° beam
Extensive set of effects including linear CMY mixing, rotating gobo wheel, static gobo wheel, circular and linear prisms, linear frost and focus

LIGHT SOURCE

Source:

440
W

S Osram Sirius HRI
Source CCT:

7.000
K
Luminous flux:

12'457
Lux:

1'270'259
lx

@5 m full
Lux:

317'565
lx

@10 m
CRI:

80
Source life expectancy:

1.500 h

OPTICS

Beam angle:

2
°
Lens diameter:

167
mm
Lens type:

high-quality glass lens optics
Focus:

motorised with auto-focus

COLOUR SYSTEM

Colour mixing:

CMY colour system on 3 gradually fading colour wheels
CCT:

on wheel 2.500 K and 3.200 K + CTB
Colour wheel:

13

dichroic filters on 3 independent colour wheels

DYNAMIC EFFECTS

FX generator:

prisms overlap for spectacular aerial effects
Circular prism:

16
-f

with bi-directional rotation, indexing
Linear prism:

6
-f

with bi-directional rotation, indexing
Frost:

linear 0-100%

GOBOS

Rotating gobos:

9

rotating gobos + open, interchangeable, indexing
Gobo size:

outer: 15,8 mm - image: 9 mm - thickness: 0,3 mm
Fixed gobos:

15

fixed gobos + open

CONTROL

Supported Protocols:

DMX512, RDM, Art-Net, W-DMX
DMX channels:

19 / 22 / 28
ch
RDM:

for remote addressing and parameter configuration
Display:

LCD high resolution colour display with autoflip
Hibernation:

power safe mode when lost DMX

MOVEMENT

Pan:

630° - 540
°

- 16-bit resolution
Tilt:

230
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement

ELECTRONICS

Dimmer:

linear 0 - 100% mechanical dimmer
Strobe / shutter:

1 - 28

flash(s), mechanical
Firmware upgrade:

via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included

CONNECTIONS
