MOSAICOXLPLUS
Share this product

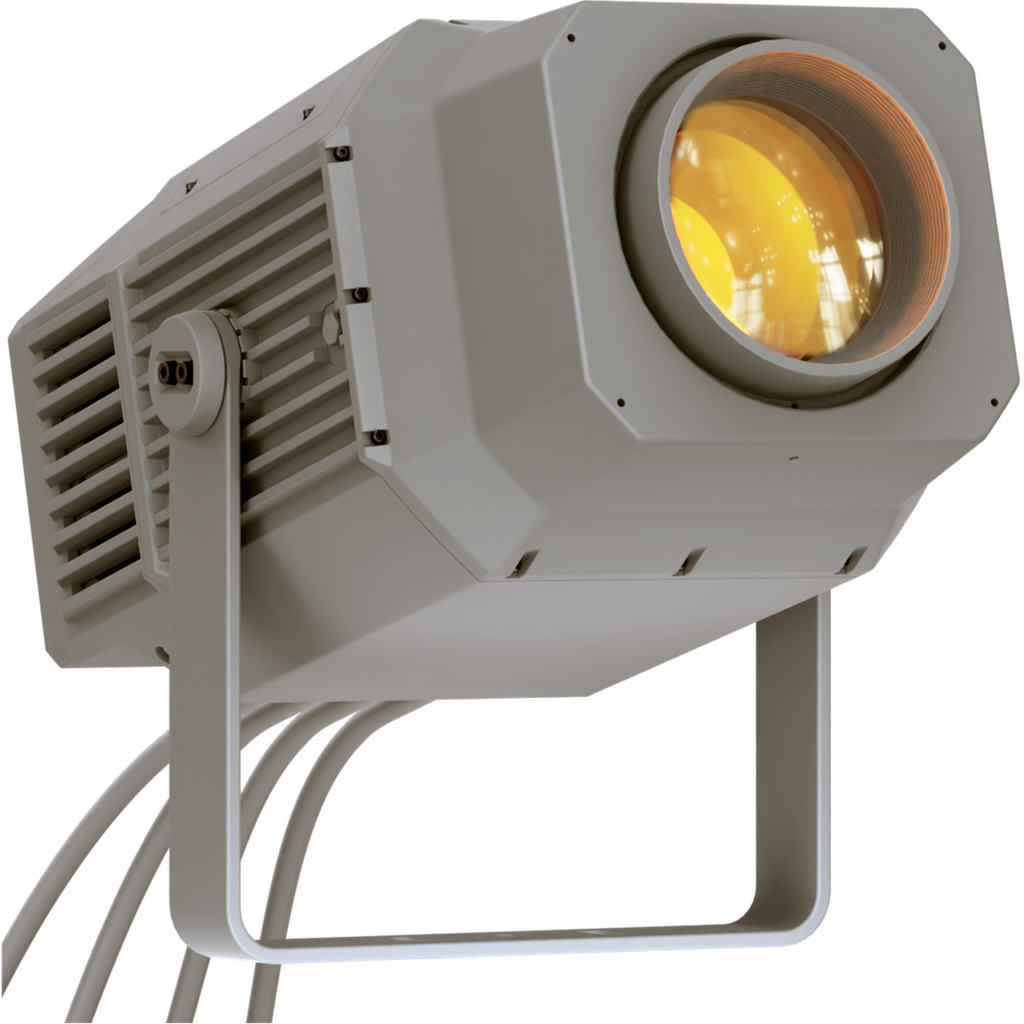

Prolights MOSAICOXLPLUS

600W IP66 zoomable LED image projector with CMY and framing shutter

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6°- 50° linear zoom system to for both near and long throw installation
  • 600W White LED engine with 6.300 K CT delivering 23'600 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

    • Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

    Features:
    IP66 allowing long-lasting installation with minimal maintenance
    Equipped with 6°- 50° linear zoom system to for both near and long throw installation
    600W White LED engine with 6.300 K CT delivering 23'600 lumens output
    Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

    LIGHT SOURCE
    • Source:
      600
      W
      high-power white LED
    • Source CCT:
      6.300
      K
    • Luminous flux:
      (6,8°) 17'404 lm - (52,1°) 23'570 lm
      @Full
    • Lux:
      (6,8°) 59'962 lx - (52,1°) 1'454
      lx
      @5 m full
    • Source life expectancy:
      > 20.000 h
    OPTICS
    • Zoom range:
      6,8° - 52,1
      °
      motorised linear zoom
    • Lens diameter:
      135
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised 8/16-bit
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 3.000 K ~ 6.000 K
    • Colour wheel:
      open + 6
      interchangeable colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Circular prism:
      4
      -f
      with bi-directional rotation, indexing
    • Frost:
      dual soft-edge and heavy
    • Iris:
      5 ~ 100
      %
      motorised iris
    GOBOS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size (BW):
      outer: 26,9 mm - image: 20,5 mm
    • Gobo size (Color):
      outer: 26,9 mm - image: 20,5 mm
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX + WDMX
    • DMX channels:
      28 / 30 / 35 / 44
      ch
    • RDM:
      for remote addressing and parameter configuration

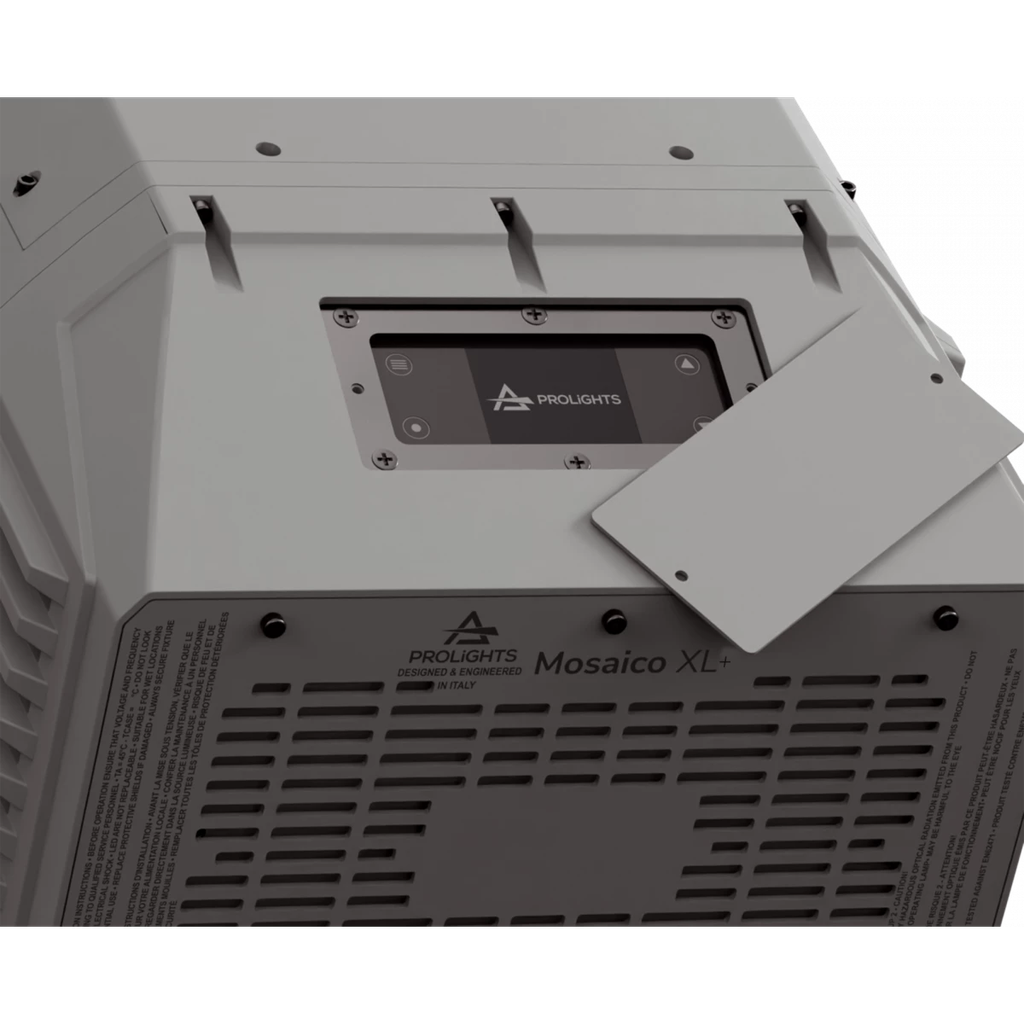

    • Display:
      black OLED touch display
    • Stand Alone:
      Stand Alone programmer and playback
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      1,8 m
      moulded IP power IN/OUT connectors
    • Signal connection:
      1,8 m
      moulded IP signal IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Adaptors:
      XLR and BARE END 16A adaptors included
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      680
      W
    • Output (at 230V):
      4
      units on a single power line
    • Standby power:
      58,7 W
    • Power factor:
      >0,96
    PHYSICAL
    • IP rating:
      IP66 for outdoor installations
    • IK rating:
      IK09 impact rating
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
    • Finish:
      grey (RAL 9006)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      403x462x565
      mm
    • Weight:
      35,5
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      ancor points on the front for accessory mounting
    • Other:
      inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
