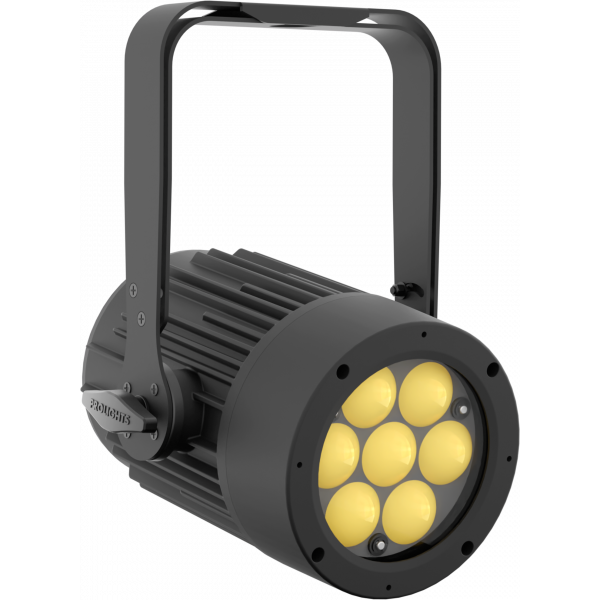

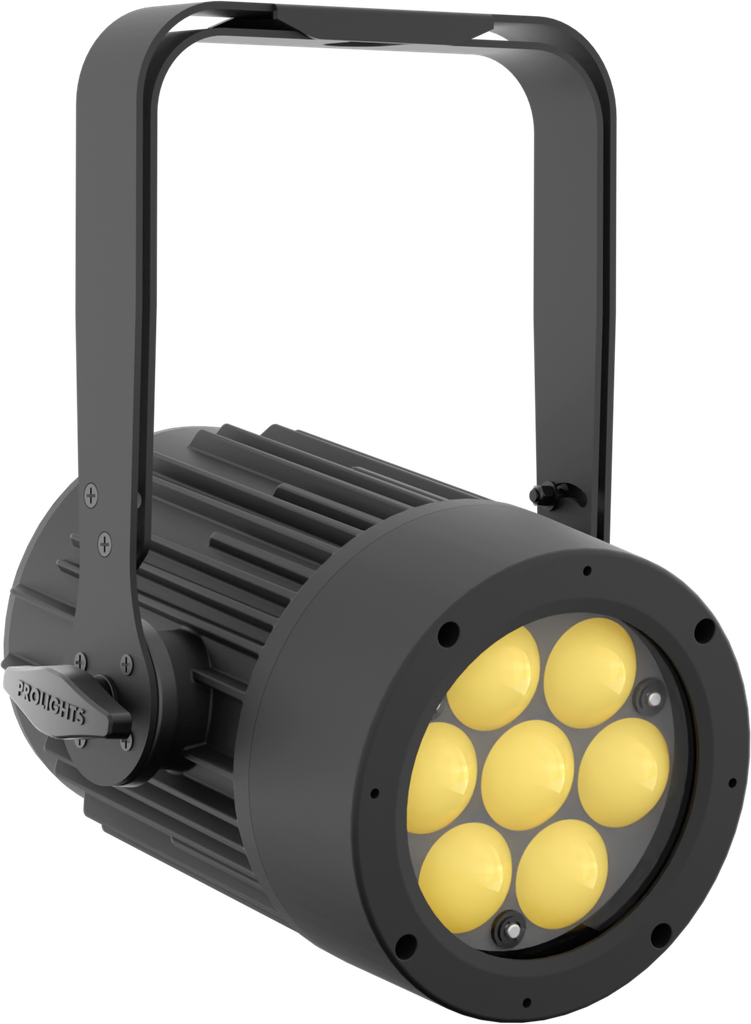

Mini VersaPar is a compact indoor LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing truly makes this a unique fixture. Mini VersaPar is equipped with 10° - 40° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

7x10W RGBW/FC LED

Wide zoom range from 10° - 40° (1:4 zoom)

Silent operation for studio application

Features:
7x10W RGBW/FC LED
Wide zoom range from 10° - 40° (1:4 zoom)
Silent operation for studio application

LIGHT SOURCE

Source:

7x10
W

RGBW LEDs
Luminous flux:

(10°) 1'012 lm - (40°) 1'335
Lux:

(10°) 4'415 lx - (40°) 378
lx

@3 m
Source life expectancy:

> 50.000 h

OPTICS

Zoom range:

10° - 40
°

motorised linear zoom
Lens type:

honeycomb gapless plano-convex optics

COLOUR SYSTEM

Colour mixing:

RGBW / FC
White presets:

2.800 K - 10.000
K
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment
Sound mode:

music activation through internal microphone and sensitivity control

CONTROL

Supported Protocols:

DMX512
DMX channels:

5 / 7 / 10
ch
Display:

4 chars display
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 / 28

Hz, electronic
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON IN/OUT connectors
Signal connection:

XLR 3p + 5p IN/OUT connectors
Wireless Connection:

optional WIBOX, WDBOX proprietary protocol
Data:

USB port for USB WIFI transmitter (optional)

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

69,2
W
Output (at 230V):

20

units on a single power line
Max power consumption (120V):

70
W
Output (at 120V):

11

units on a single power line

PHYSICAL

IP rating:

IP30
Cooling:

forced-air with low-noise fan
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-10 to +40 °C (+14 to +104 °F)
Dimensions (WxHxD):

235xx301x223
mm
Weight:

4
kg

CERTIFICATIONS / REPORTS

Compliance:

CE, UKCA, RCM

Miniversapar_A4_DATASHEET_(EN).pdf Data Sheet

Miniversapar_USER_MANUAL_ITEN.pdf User / O&M Manual

MINIVERSAPAR - Drawing (PDF).pdf Drawing (PDF)

MINIVERSAPAR - Drawing (CAD).dwg Drawing (CAD)

MINIVERSAPAR - DMX Chart.pdf DMX Chart
