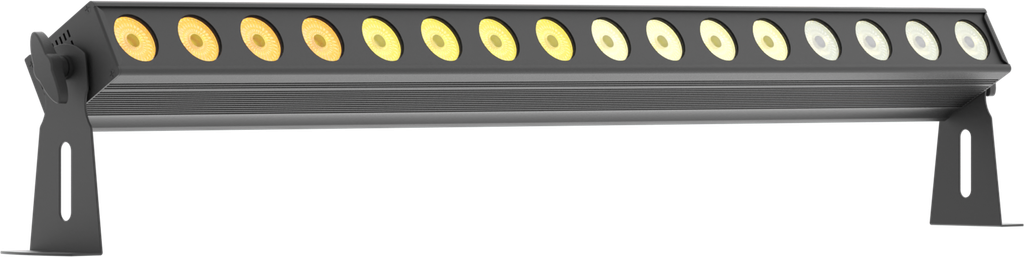

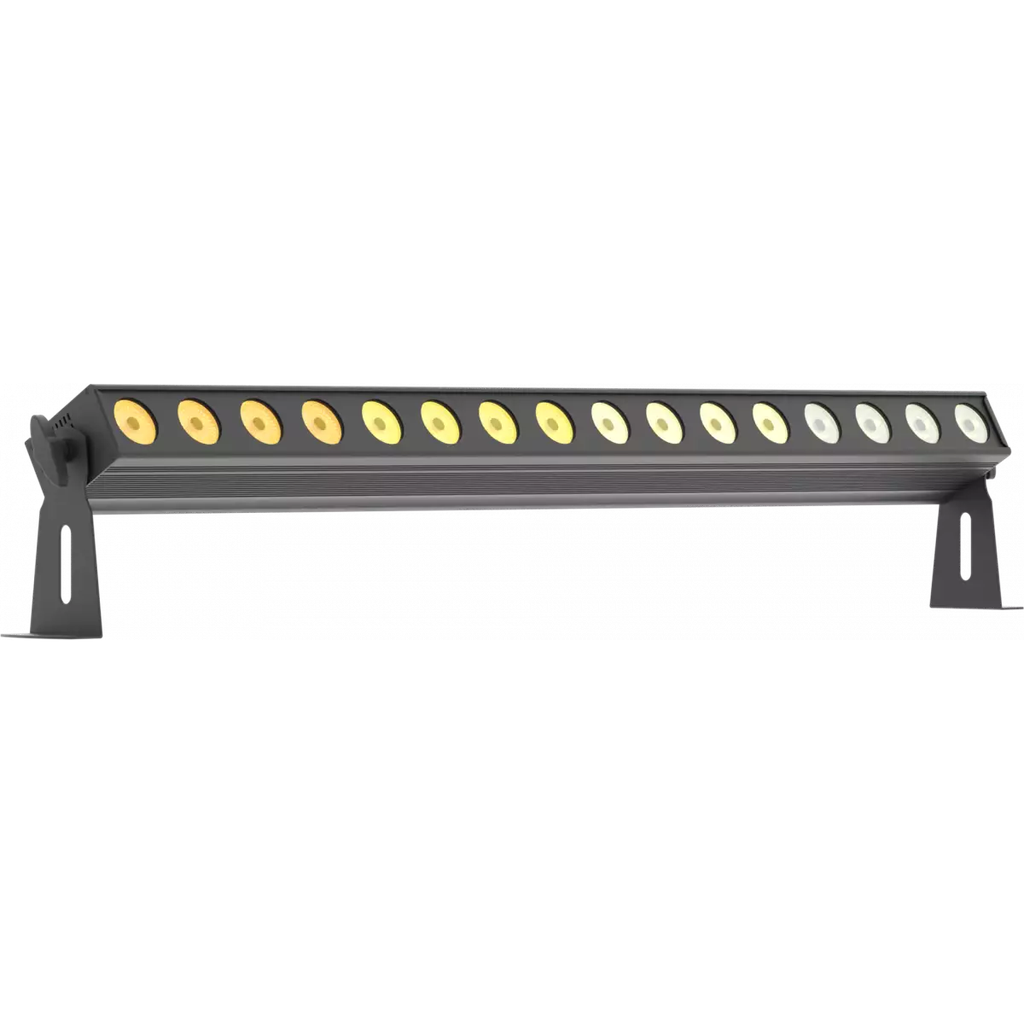

LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.
LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.
Features:LED batten with 16 individually controllable RGBAW + UV LEDs
Extensive colour palette and powerful output
Flicker-free operation for IMAG and broadcast
- Source:16x12WRGBWAP LEDs
- Luminous flux:4'159
- Lux:(22°) 2'692lx@3 m full
- Lux:(25°) 1'907lx@3 m full
- Source life expectancy:> 50.000 h
- Beam angle:22°
- Field angle:37°
- Lens diameter:42mm
- Additional optics:25° and 45° (optional)
- Colour mixing:RGBWAP / FC
- White presets:3.200 K -10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:6 / 8 / 12 / 96 / 101ch
- Pixel control:pixel2pixel control
- Display:LCD display
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:XLR 3p + 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):160W
- Output (at 230V):12units on a single power line
- Max power consumption (120V):165W
- Power factor:pF 0,95 @120 V - pF 0,90 @230 V
- IP rating:IP33
- Cooling:fan-free with natural convection
- Housing:Sturdy aluminium profile
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):1.000x180x63mm
- Weight:5,1kg

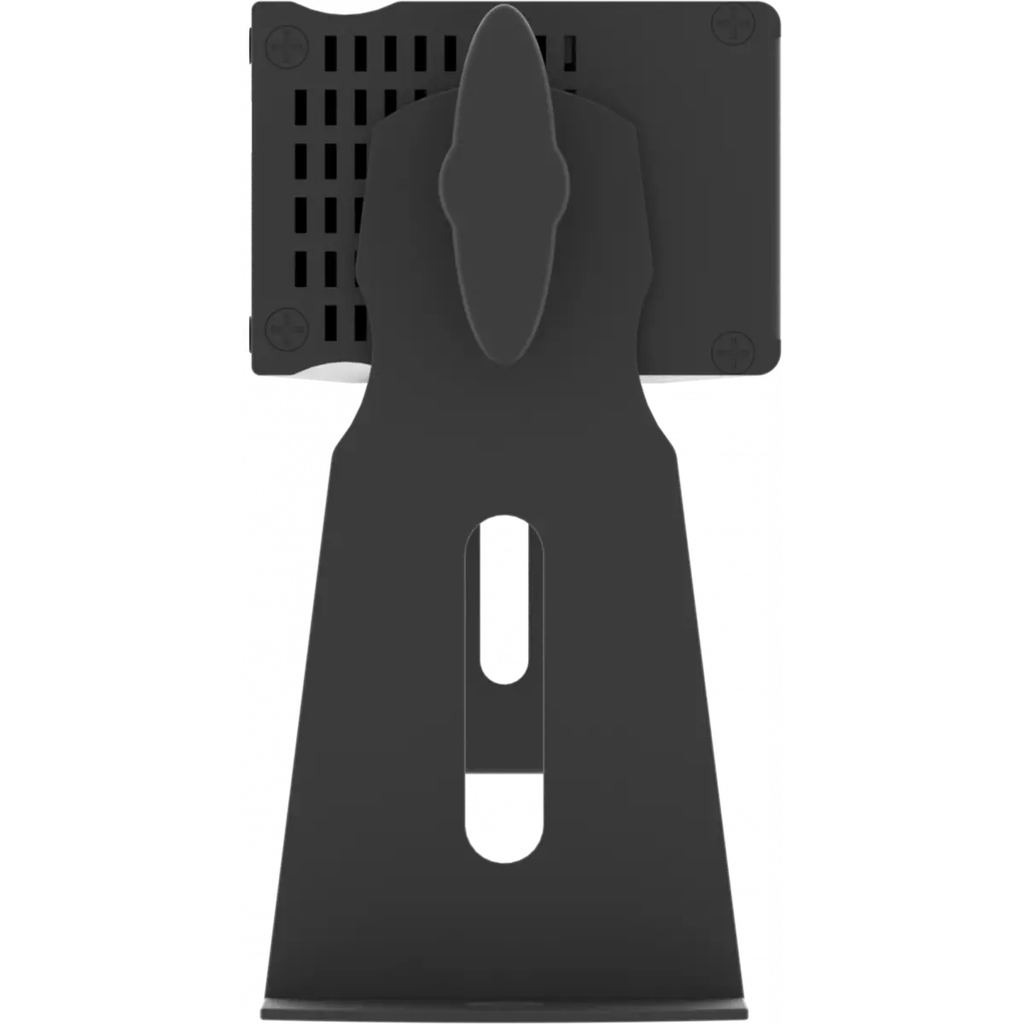

- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM
